YUDA manufacture pellet mill for wood pellets
Our Website:
-What is Biomass Pellet Fuel?
-Biomass pellet fuel is a new environmentally friendly renewable resource. Its raw material widely includes: sawdust, bamboo shavings, straw, rice husk and other crop waste. The development of biomass pellet fuel turns these wastes into treasure. It not only creates enormous economical benefits, but also solves the problem of environmental pollution. It is a sustainable development industry which is in favor of the country. Those biomass machineries produce the biomass pellet.

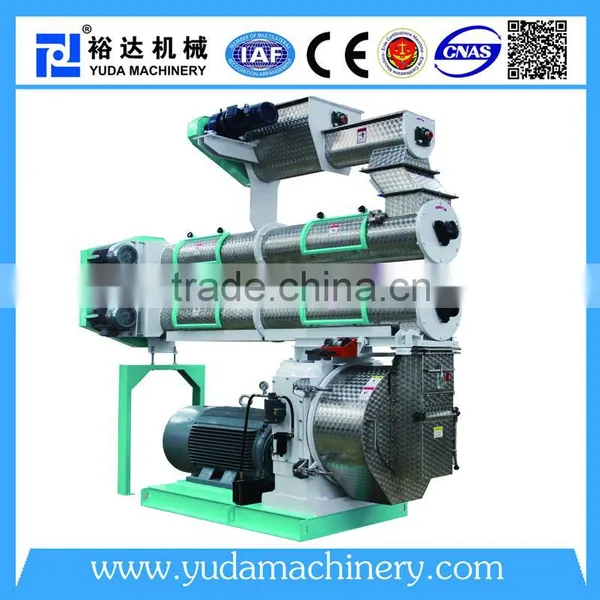

Pictures of pellet mill for wood pellets :

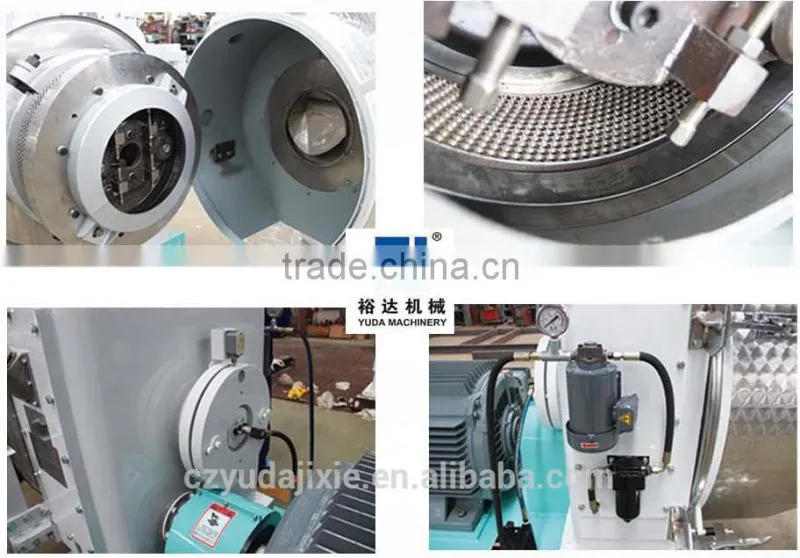

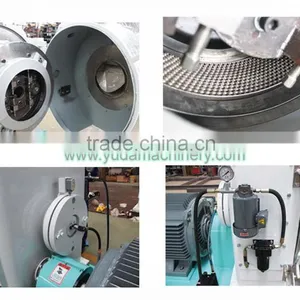

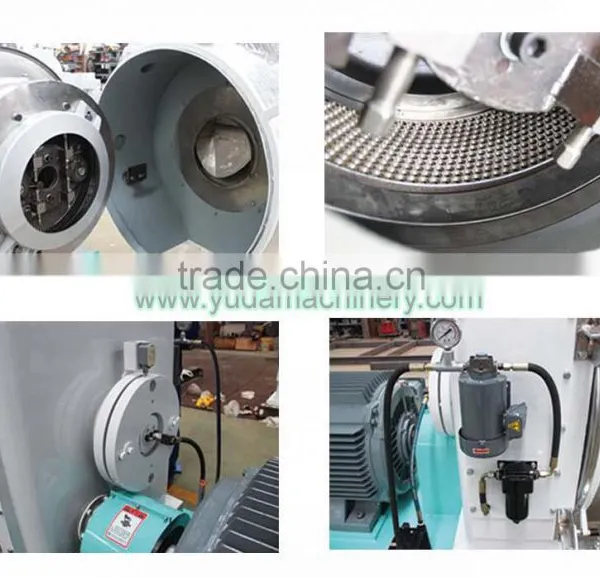

Details of pellet mill for wood pellets :

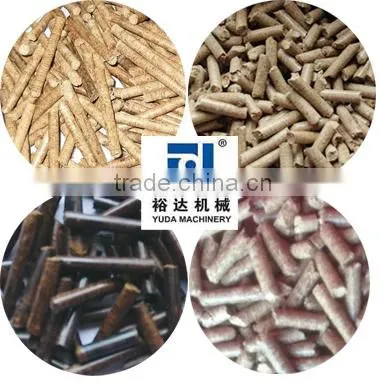

Wood pellets show:
Advantages of pellet mill for wood pellets :
-Box body is made of HT250 material forming mould;
-Big gear, gear shaft with high precision gear grinding machine, run more smoothly;
-All bearings in the box body are SKF bearing;
-Pellet mill bas is made of 12mm steel plate welding production slots with outside circulation cooling oil lubricating system, intergrating cooling, filtering, ararm.
-With overload protection device, easy to overload protection host equipment main parts
-Equipped with movable high precision pneumatic pumps
-With ring mould lifting device, convenient user disassembling ring die and the roller.
Technical Parameters of pellet mill for wood pellets :
Model |
Power |
Ring Die |
Product |
Capacity |
Forming rate |
dB(A)Noise |
MZLH(W)420 |
75-90kw |
8-10mm(1:5.0-6.0) |
biomass pellet |
0.8-1.2T/h |
≥96% |
≤80 |
MZLH(W)508 |
110-160kw |
8-10mm(1:5.0-6.0) |
biomass pellet |
1.5-2.5T/h |
≥96% |
≤80 |
MZLH(W)678 |
180-220kw |
8-10mm(1:5.0-6.0) |
biomass pellet |
2-3.5T/h |
≥96% |
≤80 |
YUDA Series Feed Processing Machines: Pulse dust jet filter; Hammer mill; Vertical pulverizer; Mixer; Pellet Mill; Cooler; Sifter; Crumbler; Screener; Grease and liquid adding equipment; Conveyor; Magnet; Distributor; Bucket elevator; Other spare parts, etc...
CE, SGS, ISO9001:2008, etc.
YuDa Machinery Co.,Ltd is a professional wood pellet mill and overall pellet line supplier, experienced in design, manufacture, installation in this business in both of domestic and overseas market. All equipments manufactured in our own factory will be good for quality control. Good engineer team in YuDa is the guarantee for us to get your option and easy for communication with foreign customers.
Welcome to our company to take a visit.
You will get these from YUDA as follows:
1.Flow chart: our professional engineers can design the flow chart for you.
2.Technical support: we always feel glad to give the technical support to our clients.
3.Customized: these machines can be customized to meet different requirements, please offer the detailed drawing.
4.Free training and designing, guidance installation and commissioning.
5.Kindly to supply the detailed quote, and prompt reply while communicating.
6.12 months warranty time.
7.Complete and perfect after-sale service, we will take positive actions to eliminate the trouble in time.
Please contact me if any interest in our pellet mill for wood pellets.
We are always devoted to provide clients with best equipments, professional guidance and first-class service.
