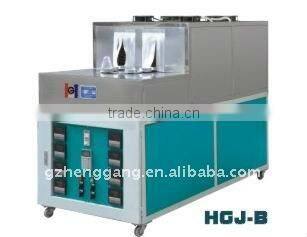

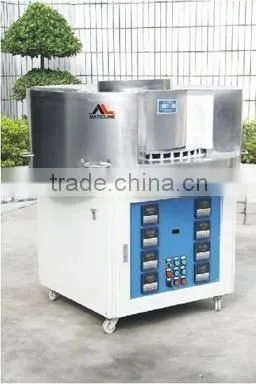

Digital Rotary Infrared Heater

Used with MaticLine's Semi-Automatic Blow Molding Machines.

Main Features:

1. frequency conversion timing motor ensuring preforms heated symmetrically;

2. cooling system for screw neck of the preforms to protect the preform neck from being distorted by the heating

3. Independent heat adjusting system; digital control; easy operation and high precision

4. Able to meet the demands of different kind of bottles; high stability and enduribility.

Technical Parameters:

CONTENTS                           GPJ-A

Output                              200-2100 bph

Operation Power                    5-8 Kw

Preform Thickness                2.5-4.2mm

Machine Size                diameter 1100*1230

Machine Weight                    200 Kg
