PET Can Bottle Making Machine
- Guangzhou
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Guangdong, China | |
| Brand Name | HENGGANG | Model Number | HGA.A-2C(1500ml) | |
| Voltage | 380v | Dimension(L*W*H) | 3200*1600*1980 | |
| Weight | 2500 | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Detailed Product Description of PET can bottle making machine:
Double Cavity,2000bph for 1500ml, could blow all kinds of shapes can bottles.
Preform material:PET
Output:2000BPH(1500ml)
Features of PET can bottle making machine:
1.Using hydro-pneumatic linkage mold clamping mechanism which runs stably with high speed and great clamping force.
2.The control system adopts man-machine interface with Mitsubishi PLC which is of high sensitivity and accuracy.
3.Using coated infrared heating lamps which enable fast and stable heating.
4.Using centralized noise-reducing air recycling system which minimize the noise as much as possible.
5.Using slide core in stepping unit which is easy to operate and saves energy.
Parameters of PET can bottle making machine:
Item | HGA.A-2C | |
Container | Max. Container Volume | 1500 ml |
Neck Diameter Range | 80mm | |
Max. ContainerDiameter | 90 mm | |
Max. Container Height | 330 mm | |
Theoretical Output | 2000 bph | |
Molding | Clamping stroke | 150 mm |
Stretching stroke | 330~450 mm | |
Bottom Stoke | 35 mm | |
Preform distance | 120.52 mm | |
Preform Holder | 50 pcs | |
Cavities | 2 No. | |
Electrical System | Max. Heating Power | 32 kw |
Heating Power | 11 kw | |
Air System | Operating Pressure | 7 kg/c m2 |
Low Air Consumption | 1000 ltr/min | |
Blowing Pressure | 35 kg/c m2 | |
High Air consumption | 1600 ltr/min | |
Cooling Water | Operating Pressure | 5-6 kg/c m2 |
Temperature | 8-10°C | |
Flow rate | 30 ltr/min | |
Machine | Size(L×W×H) | 3200×1600×1980mm |
Weight | 2500 kg | |

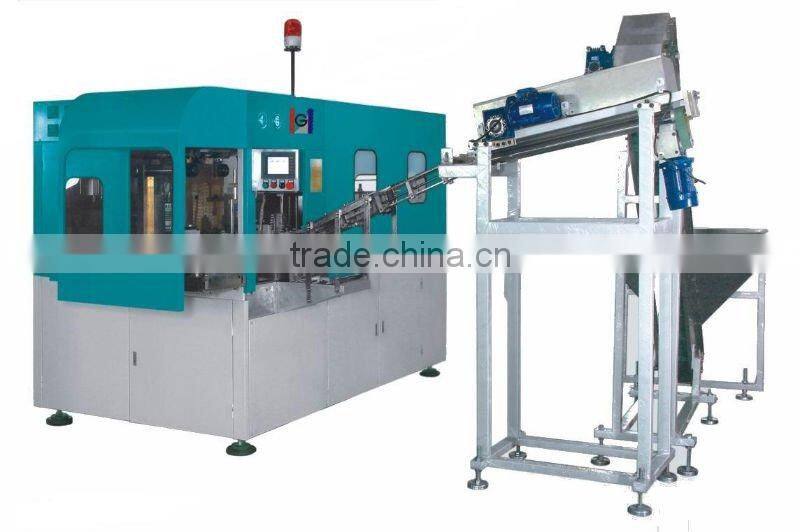

Machine of PET can bottle making machine:

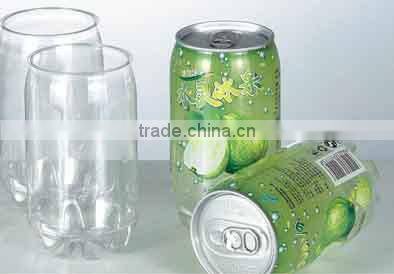

Product made by PET can bottle making machine:
All the cavity molds(moulds) of PET can bottle making machine are manufactured by ourselves. We have our own CNC processing machine and experienced engineer, who has been making cavity molds at least 5 years. Besides the cavity molds, other hardware parts are also produced by ourselves. Thus we have strong confidence in the stability of our machine because all parts can jointed and worked as a integrated unit.
The most frequently used material for molds are Aluminum, S136(stainless iron):
Our PET can bottle making machine has already accquired the CE certificate:
Other domestic patents of our PET can bottle making machine:
