BC-6T Car Six-cylinder of gasoline diesel fuel injector tester and cleaner on sale
Fuel injector diagnostic system
This product is applicable to diagnose and clean fuel injectors of various cars manufactured worldwide, improving stability, reliability and reducing pollution.
It can perform automatic detecting, analyzing and cleaning.
Technical specification and functions
1.It can not only apply static detection, dynamic detection and optional detection to injection
angle, dribbling, atomization and uniformity coefficient of one or more fuel injectors,
but also simulate the performance of the engine and observe the overall operation process
of the injectors.
2.Detection range
| A. Pulse width: 1ms~20ms | Step: 0.1ms |
| B. Injection times: 0~10000 | Step: 50 |
| C. Rotation speed: 0~10000 r/min | Step: 50r/min |
| D. Injection time: 0 ~10000 sec | Step: 5 sec |
Can arbitrarily set the rotation speed, injection time and times counting, injection pulse width
and injection mode within the suggested range above, and the detecting mode may be static
or dynamic, acceleration or deceleration.
And the detecting process can be paused and resumed to original program.
3. Can diagnose one or more fuel injectors and employ automatic cleaning, reverse flushing and
ultrasonic cleaning.
4. Diagnose under either injection time mode or times counting mode, the latter being the
default detection mode.
If time counting mode is wanted, just set the parameter manually.
The system will digitally display the parameter, ease and simplicity of operation.
5. Has a unique twoline system which is applicable to all fuel injectors.
The automatic discharge can prevent the liquid flow back to the cylinder.
6. Can do reverse flushing and disaffiliation-free flushing.
7. In case of different models of fuel injector, just use suitable plug and change the ring.
8. The machine adopts microcomputer technology and mechanotronics design, together with
cleardigital display and power supply of 400W and specified protective device for injection.
9.The machine has powerful, reliable and clocked ultrasonic cleaning system, whose ultrasonic
frequency is 40KHz.
Work in accordance with fuel injector manufacturer suggestion, preventing any damage to the
fuel injector.
There are different connectors for different fuel injectors, applicable to standard model, Hose Taic model, K model, TBL model, etc. Microcomputer control automatically regulates the fuel
system pressure. The prevention over excess pressure can ensure fuel flow and normal pressure.
Technical Parameter
| Dimension | 480mm*490mm*1420mm |
| Weight | 55kg |
| Voltage | AC220V/110V± 10% 50HZ 500W |
| Operation Temperature | -10℃~40℃ |
| Tank Capacity | 4L |
| Test Tube Capacity | 120CC |
| Ultrasonic Frequency | 25KHZ |
| Rotation Speed | 0~10000r/min |
Step: 50r/min |
|
| Time Counting Range | 0~10000 sec |
| Step: 50 sec (adjustable) | |
| Oil Pump Pressure | 1.8kg/cm2---10kg/cm2 |
| Fuel Flow | 4.5 L/min |

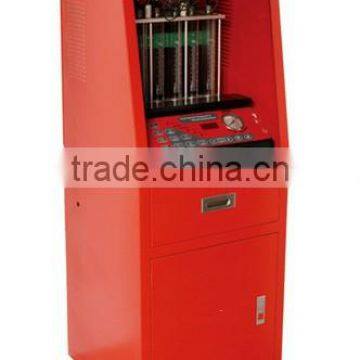

Product picture:
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union ,PayPay,Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days,tester, diagnostic tool and injectors,we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer,if you have any requirements you can contact us directly~
