FD Machine Manufacturers Hdpe Plastic Bottles Plastic Molding Machine Injection

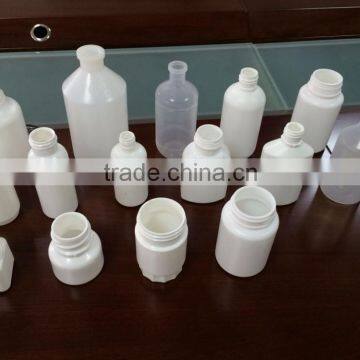

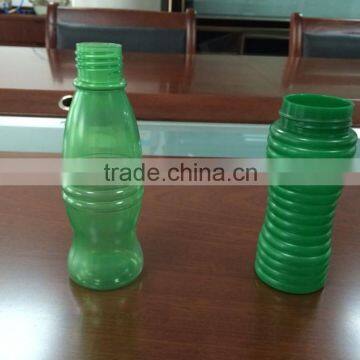

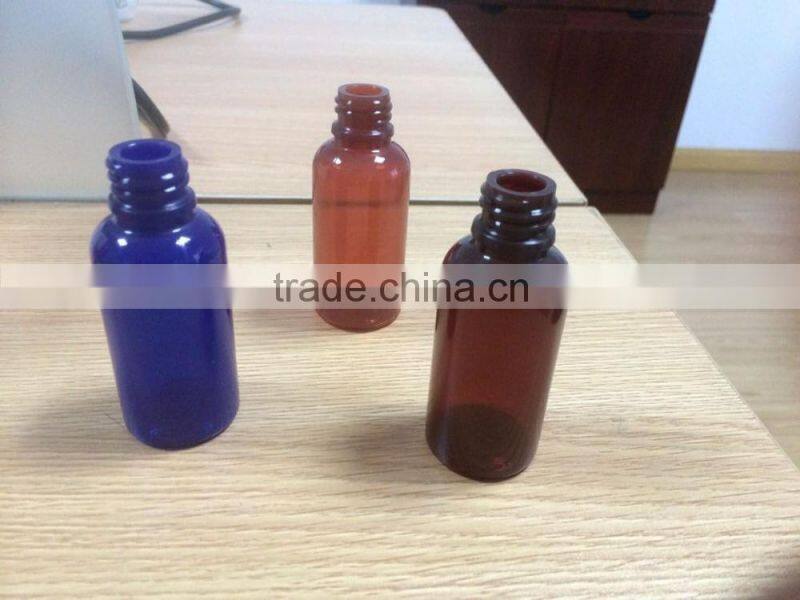

»Product features of FD machine manufacturers hdpe plastic bottles plastic molding machine injection

1.excellent machinical strength. impact-resting,and non-cracking.

2.Bottle mouth and screw thread are of precise measurement, enable 100%

close matching with the bottle cap.

3.The weight of the product can be pre-setted.

4.The measurement and thickness of the product can meet the requirement of

design without any deviation.

5.The surface of bottle mouth and body is bright and smoonthness.

6.No defleshing and trimming save the material cost.

7.There is no joint seam at the bottom, and strength is improved accordingly.

8. The joint seam on the bottle body is smooth.

»Main Features of FD machine manufacturers hdpe plastic bottles plastic molding machine injection

1.The clamping framework adopts single-crossbeam,double pillars,which enlarges the space of setting mould,will be easier to install mould.

2.Injection clamping adopts the structure of three oil vats and small supply-oil case,hence the speed of open/clamping will be quicker and the bearing pressure of mould will be more equally.

3.using tie-bar protection makes open/clamping mould work while transfer table rise/fall,so the production efficiency improve obviously,and protect core rods damages once mold hasn't at right station.

4.servo motor system control for 30% consumption saving (Optional).

5.Special thickness working platform with QT material assure machine run stably,clamping well,anti-distortion.

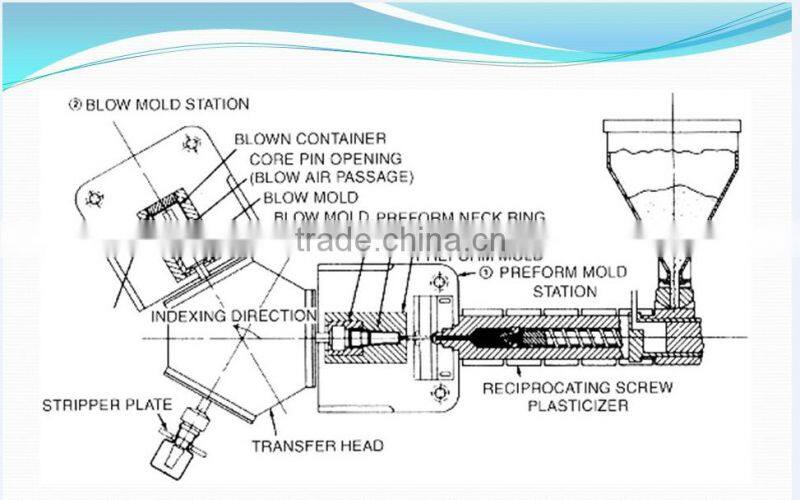

»Operating Principle of FD machine manufacturers hdpe plastic bottles plastic molding machine injection

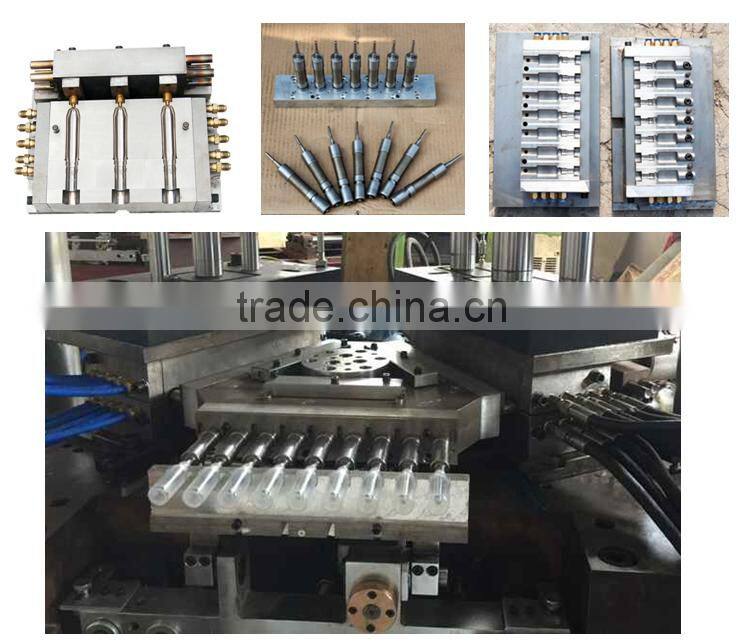

Station A:Preform injection

The bottle neck will be molded accurately after injecting the material into the cavity,After proper control,the mold open and mandrils to...along with the cavity.

Station B:Blow molding

Blowing action was done at this part,molding would be complete after cooling.(bottle shape decides by the mold cavity).The air came out from the mandrils huffs the cavity,make the cavity cling to the mold.Then mold open and the mandrils turn to...along with bottles.

Station C:Stripper

The bottle automatically will be ejected from the mandrils at this position and then to be packed.The three actions of injection/blowing/ejection working at the same time,which makes the machine of high efficiency and low waste with bottles.

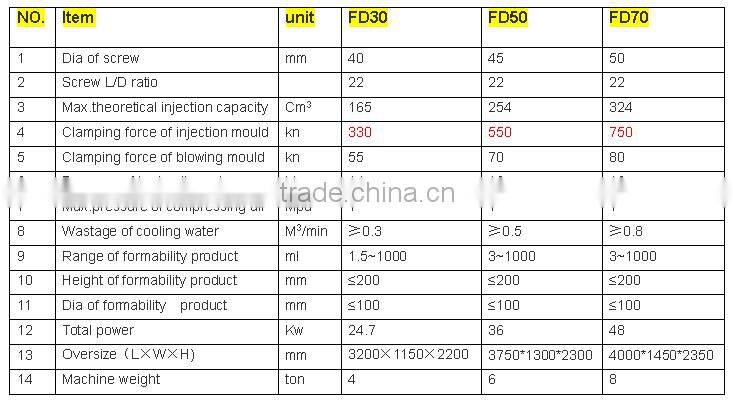

»FD machine manufacturers hdpe plastic bottles plastic molding machine injection  Main Technical Parameters

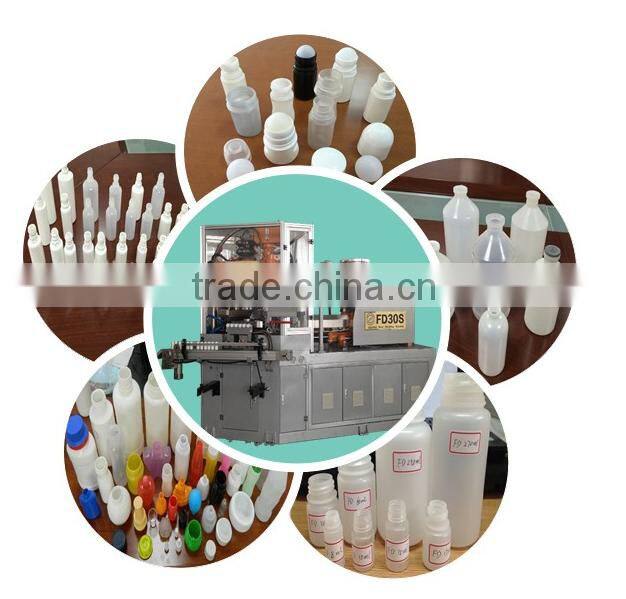

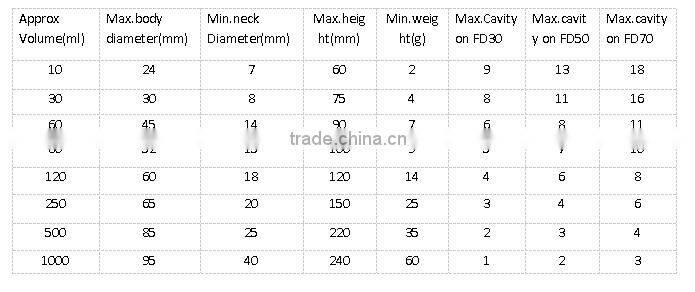

»Reference cavity numbers on each model FD machine manufacturers hdpe plastic bottles plastic molding machine injection

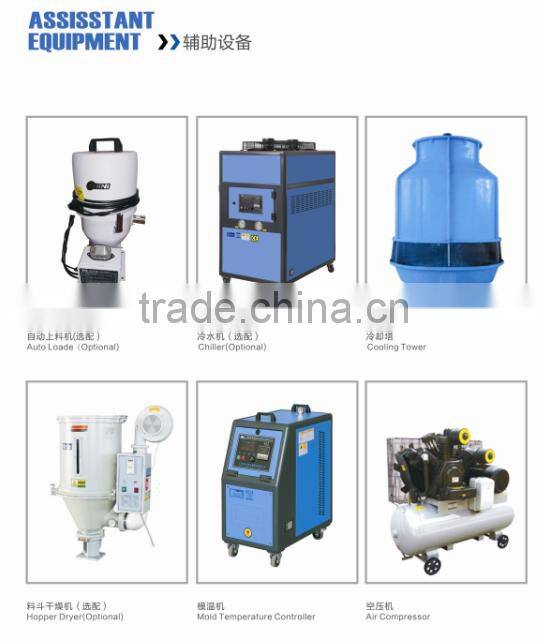

FD machine manufacturers hdpe plastic bottles plastic molding machine injection assisstant equipment

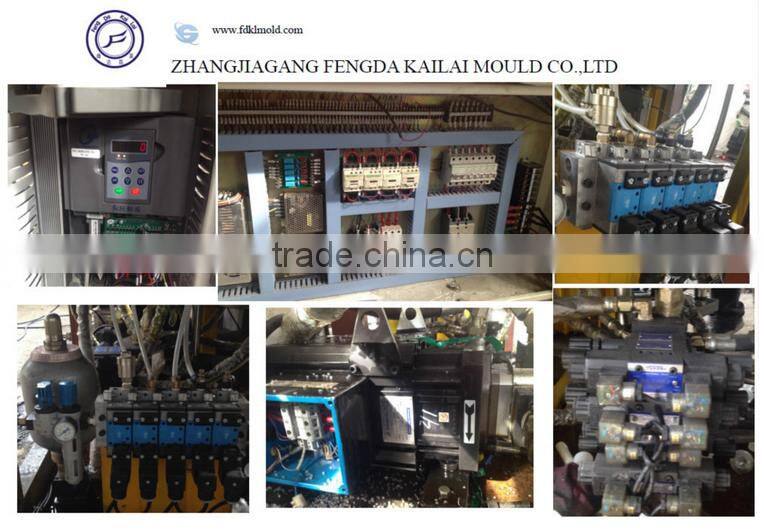

»Machine Main Parts Brand of FD machine manufacturers hdpe plastic bottles plastic molding machine injection

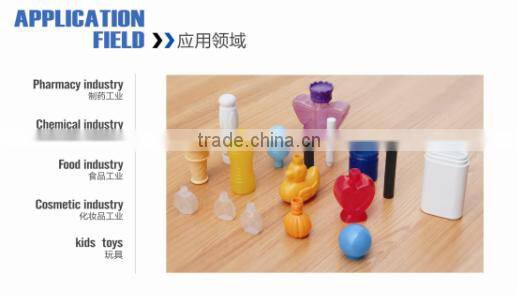

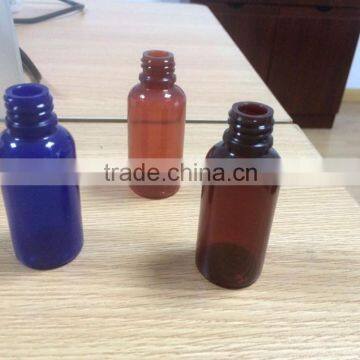

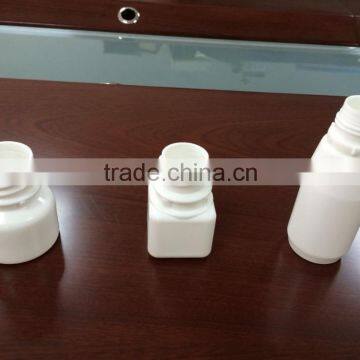

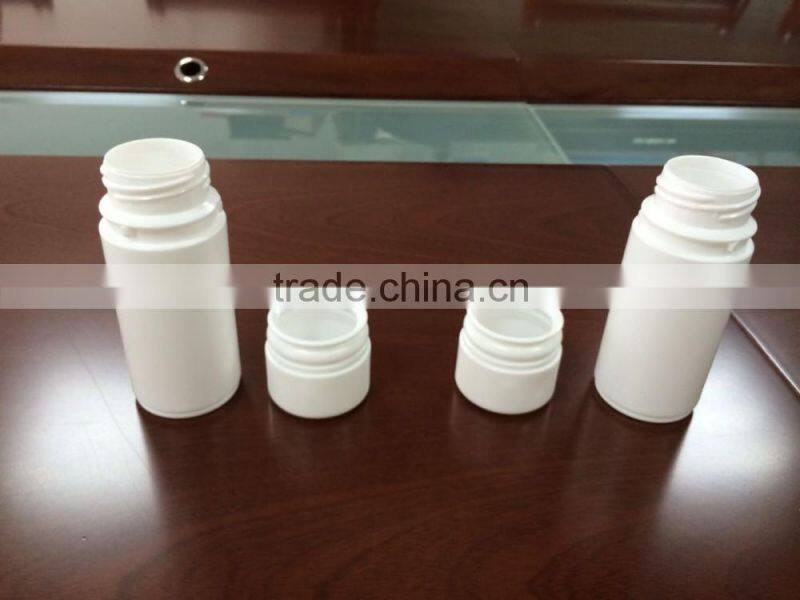

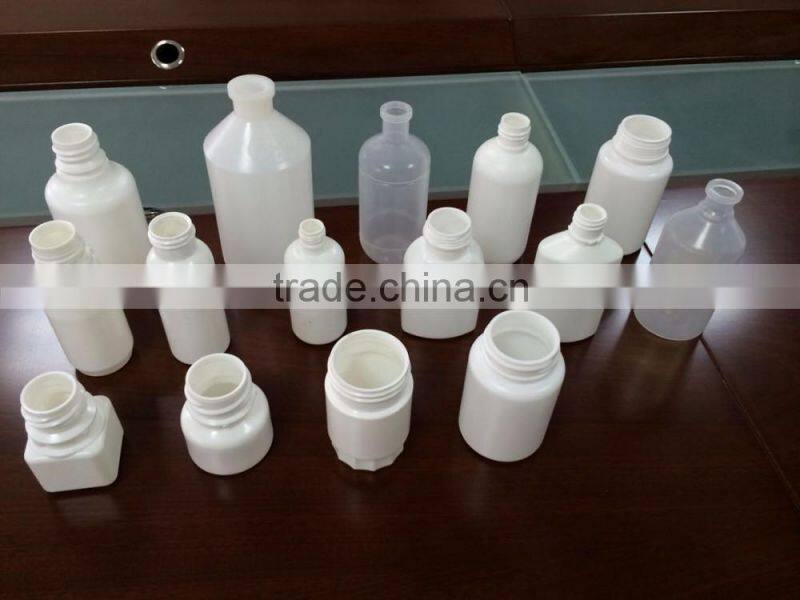

 FD machine manufacturers hdpe plastic bottles plastic molding machine injection Application field

machine packed with film and  wooden pallet

mold packed by sea worthy wooden cases.
