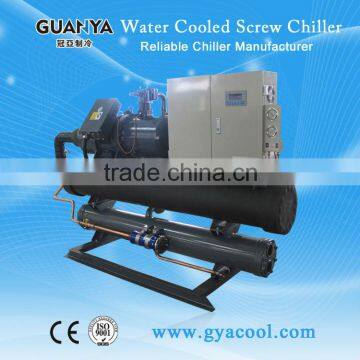

GY-136WS Screw chiller unit

FOB Price

USD $19,017 - $67,743 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	Customize	Type	Water-Cooled
Place of Origin	Guangdong, China	Brand Name	Guanya
Model Number	GY-136WS	Cooling Capability(kw)	91.1KW
Voltage	380V	Dimension(LWH)	2550X2100X2200mm
Weight	1000kg	Certification	CE, ROHS
Warranty	1 Year	After-sales Service Provided	No overseas service provided

1. Industial New Type CE Approved screw water-cooled Chiller
2. Professional service
3. Steady quality guarantee;

Industial New Type CE Approved screw water-cooled Chiller

Application
Medium and large scale industrial cooling
Central air conditioning system
Cold room, thermostatic chamber

Specification & feature:

Imported Well Known Brand Compressor

1	Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor.
2	The latest 5 to 6 patented screw rotor profile with excellent efficiency.
3	Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
4	Most advanced patented highest precision manufacturing process.
5	Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
6	Wide range of refrigerant for option, including R134A, R407c and R22(R404A, R507c upon request.

Microprogramming Control System
1	Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.
2	Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
3	Optional operation language, menu leading, unit running state easy to adjust.

Parameters of Industrial Water Chiller Screw Chiller :

Shenzhen Guanya Cooling & Heating Equipment Co., Ltd (water cooled screw chiller)
ParametersModel No	Unit	GY-40WS	GY-50WS	GY-60WS	GY-80WS	GY-100WS	GY-120WS	GY-150WS	GY-200WS
norminal cooling capacity	Kcal/h	116000	143000	180000	232000	286000	360000	445000	572000
maximum power consumption	Kw	30.6	37.9	45.5	59.8	75.9	91.1	115.5	149.2
Power supply	V	380
refrigerant	R22
capacity control		heating power expansion valve
Compressor	Type	Screw
Compressor	power capacity kw	30.2	37.5	45	59.2	74.9	90.1	114.1	148
Cooling water	cooling water flow (m3/h)	27.2	34	40.8	54.4	59.7	81.6	101.7	136.3
Cooling water	turnover water caliber	3"	3"	3"	4"	4"	5"	5"	4"
Chilled water	chilled water flow (m3/h)	22	27.5	33.2	44.3	56.1	66.7	82.4	110.6
Chilled water	turnover water caliber	3"	3"	3"	4"	4"	5"	5"	4"
Dimensions	length (mm)	2100	2100	2200	2550	2550	2550	2550	2550
	width (mm)	850	850	1050	1200	2100	2100	2100	1200
	height (mm)	1950	1950	1950	2200	2200	2200	2200	2200

Advantages:

A: Our Brand:Our company adopted foreign advanced processing equipment and the strong support of

the Japanese technology, comprehensive passed ISO9001-2000 quality management system.
