IP67 TUV GS LVD EMC Listed 40W-280W Stainless Steel Street Light Pole

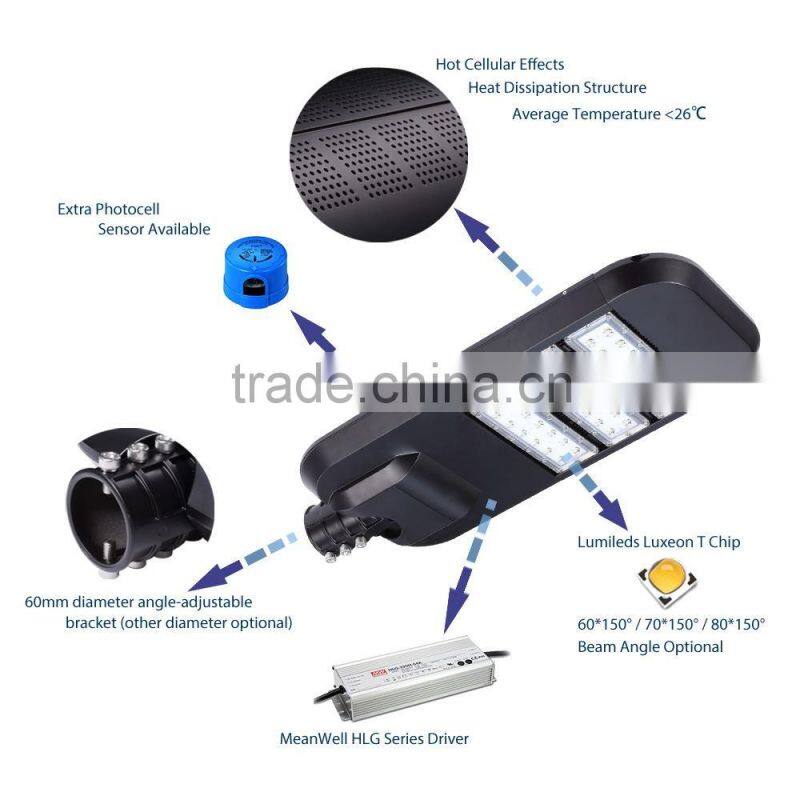

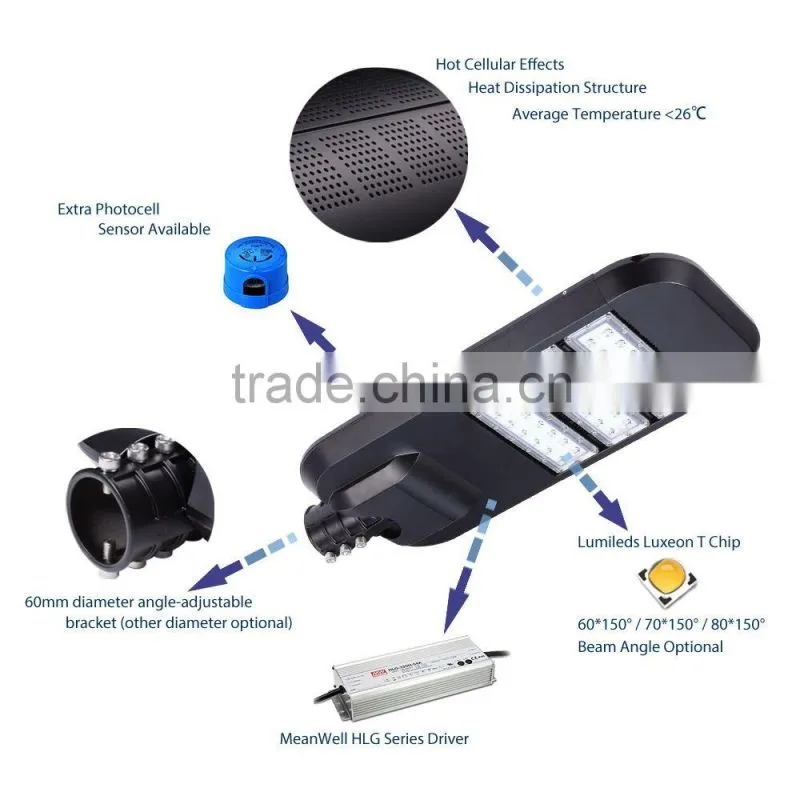

What are the Main Features of AOK iL Series LED Street Light?
|
Product Name: |
Led Street Lights |
| Applications: | Suitable for highway, express way, road, avenue, walking path or parking lot. |
| Power Range: | This series has 40w-280w options (system power) |
| Replacement: | Replace up to 100-1000W traditional light |
| Input Voltage Range: | 100-240/277VAC, 50/60Hz. 277-528VAC, 12/24VDC |
| IP and IK Rating: | IP66 water and dust proof; IK10 impact proof |
| Standard Fixture Colors: | White or black (other colors customizable) |
| Warranty: | 8 years warranty on the entire luminaire, free shipping of the new replacement |
| Standard Lead Time: | 7 working days |
| Lifespan: | 62000 hours lifespan at TM21 L70 standard |
| Beam Angle: | 60*150/70*150/80*150/90*100/60/120 degrees |
| System Efficacy: | Up to 130lm/w |
| Installation Method: | Suitable to high mast lighting, flood lighting |
| Standard Fixture Color: | Black or white (other colors customizable) |
| Net Weight: | 10kgs |

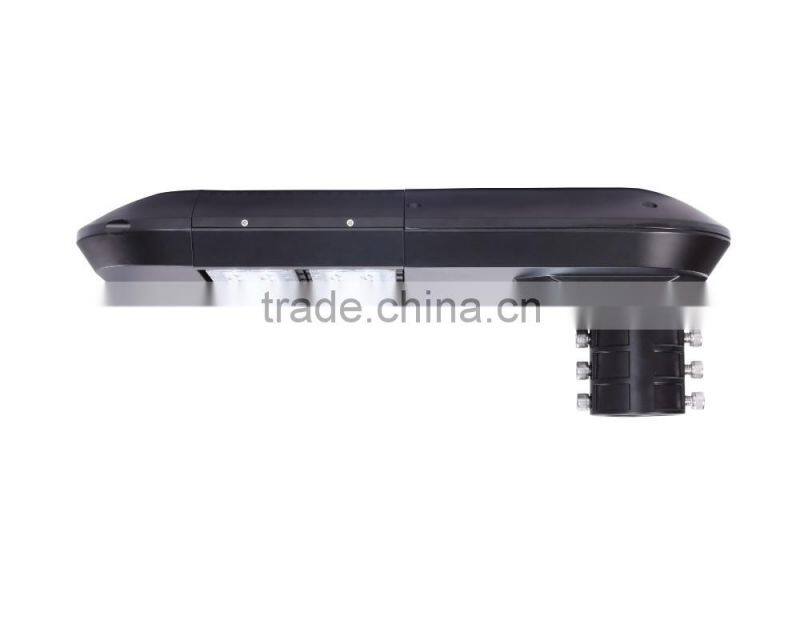

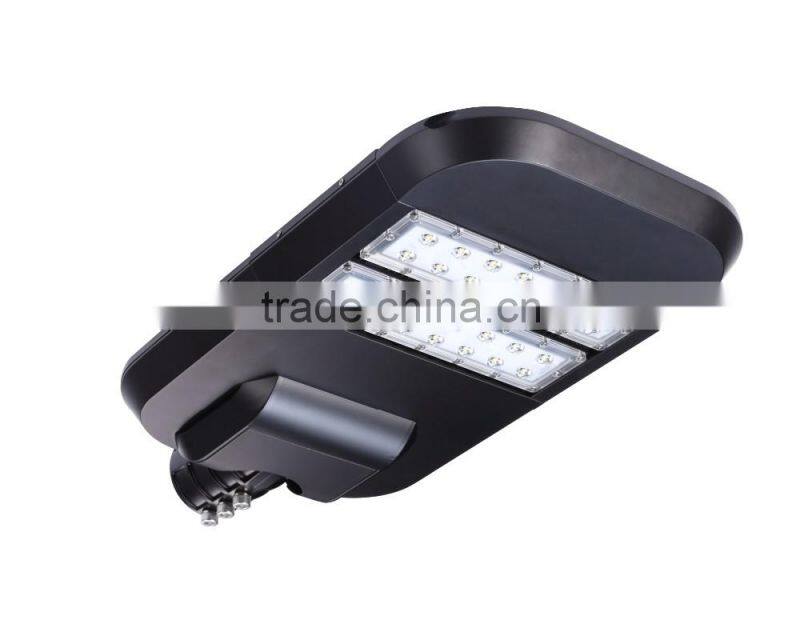

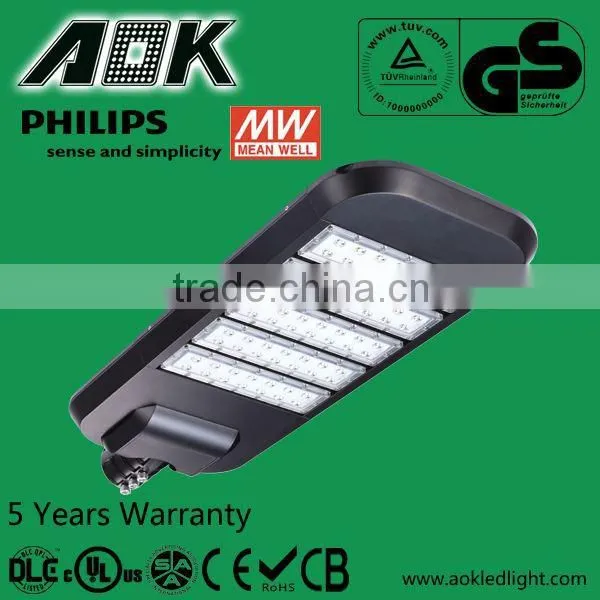

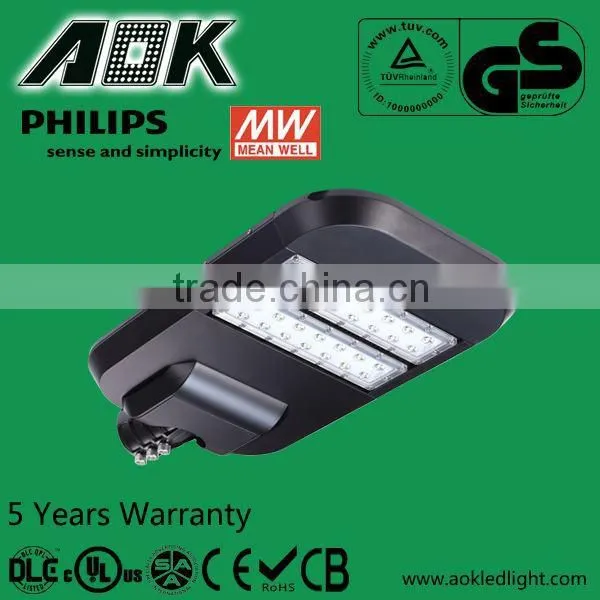

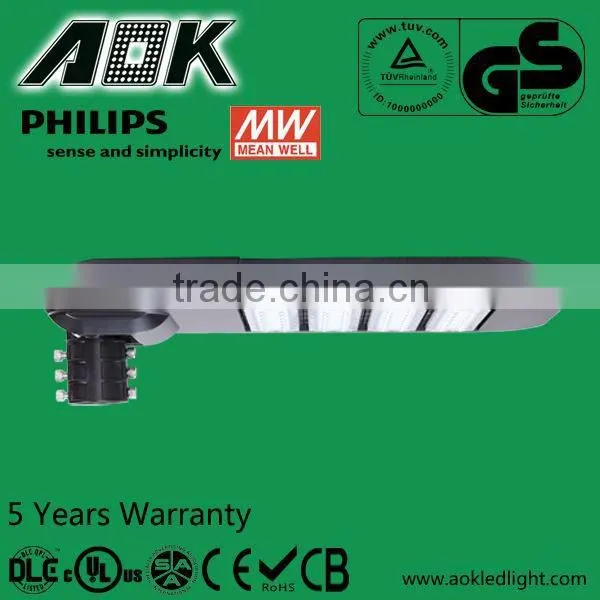

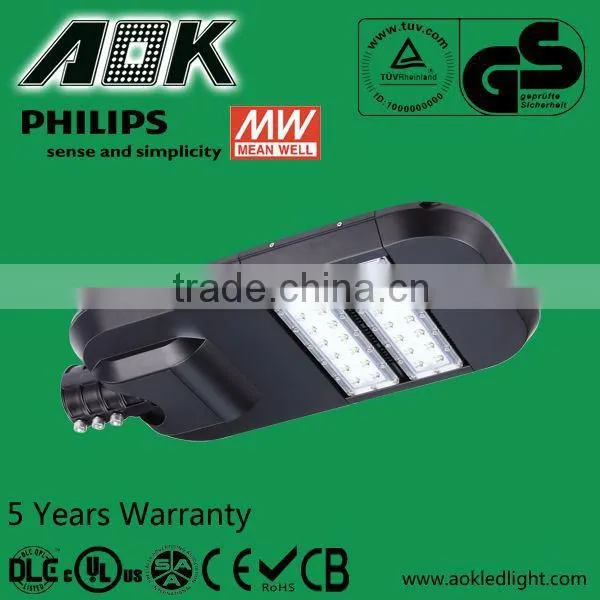

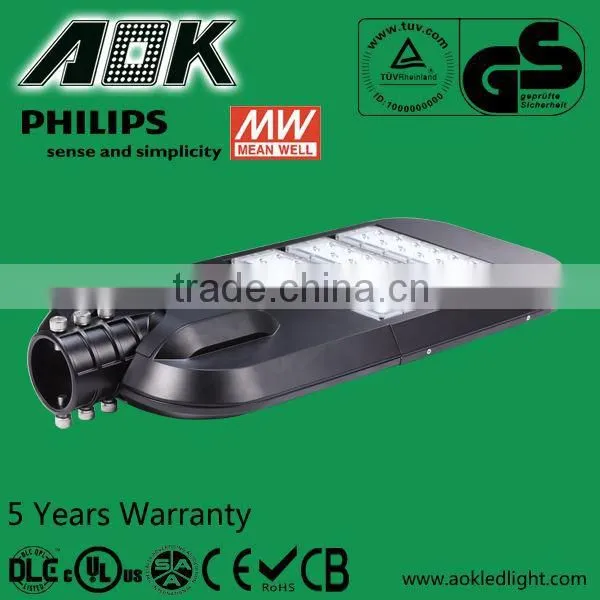

Product Photos
Technical Data
| Model Name: | System Power | Number of Modules | Total Lumen Output | CRI | System Efficacy | Color Temperature | Input Voltage |
| AOK-40WiL | 40W | 1 | 5200lm | Ra>70 (Ra>80 optional) | 120-130lm/w | 3000-6500K | 100-240/277VAC-528VAC |
| AOK-80WiL | 80W | 2 | 10400lm | Ra>70 (Ra>80 optional) | 120-130lm/w | 3000-6500K | 100-240/277VAC-528VAC |
| AOK-120WiL | 120W | 3 | 15600lm | Ra>70 (Ra>80 optional) | 120-130lm/w | 3000-6500K | 100-240/277VAC-528VAC |
| AOK-160WiL | 160W | 4 | 20800lm | Ra>70 (Ra>80 optional) | 120-130lm/w | 3000-6500K | 100-240/277VAC-528VAC |
| AOK-200WiL | 200W | 5 | 26000W | Ra>70 (Ra>80 optional) | 120-130lm/w | 3000-6500K | 100-240/277VAC-528VAC |
| AOK-240WiL | 240W | 6 | 31200W | Ra>70 (Ra>80 optional) | 120-130lm/w | 3000-6500K | 100-240/277VAC-528VAC |
| AOK-280WiL | 280W | 7 | 36400W | Ra>70 (Ra>80 optional) | 120-130lm/w | 3000-6500K | 100-240/277VAC-528VAC |

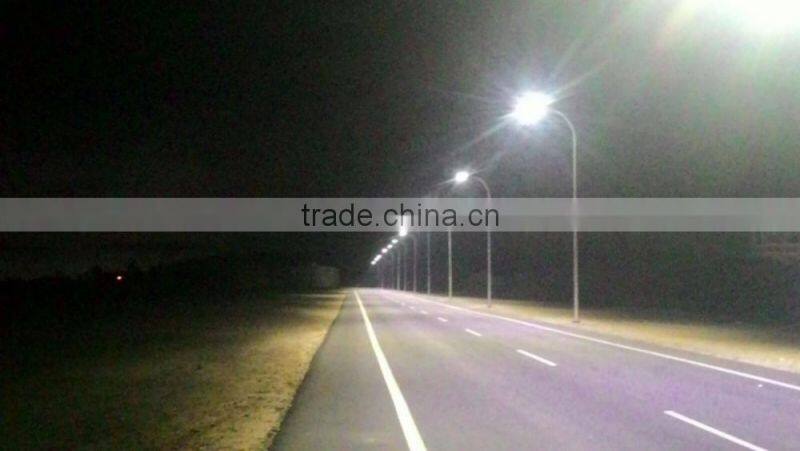

Projects Finished with AOK LED Street Light.

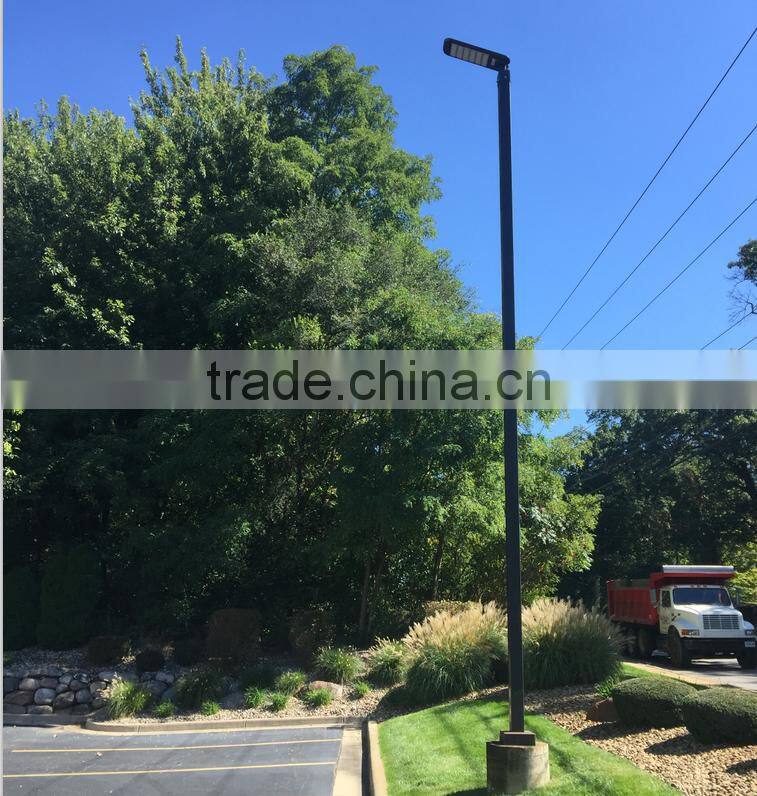

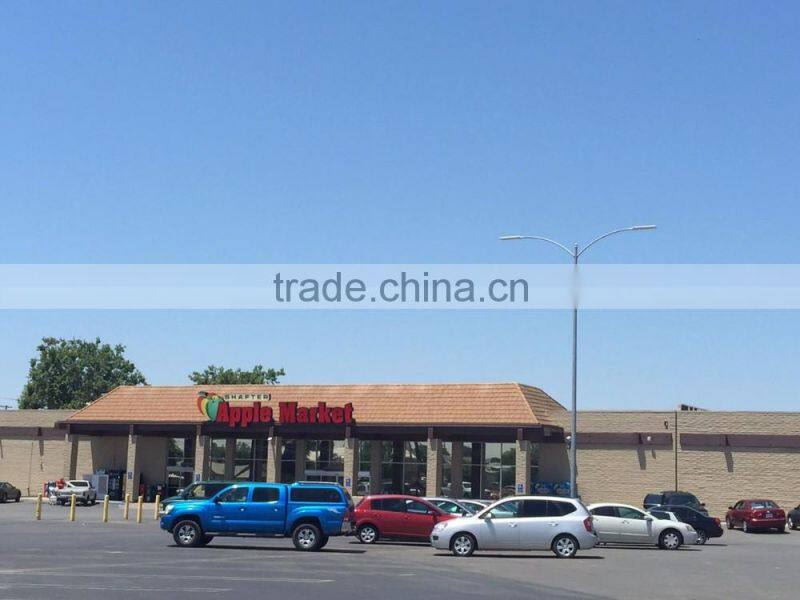

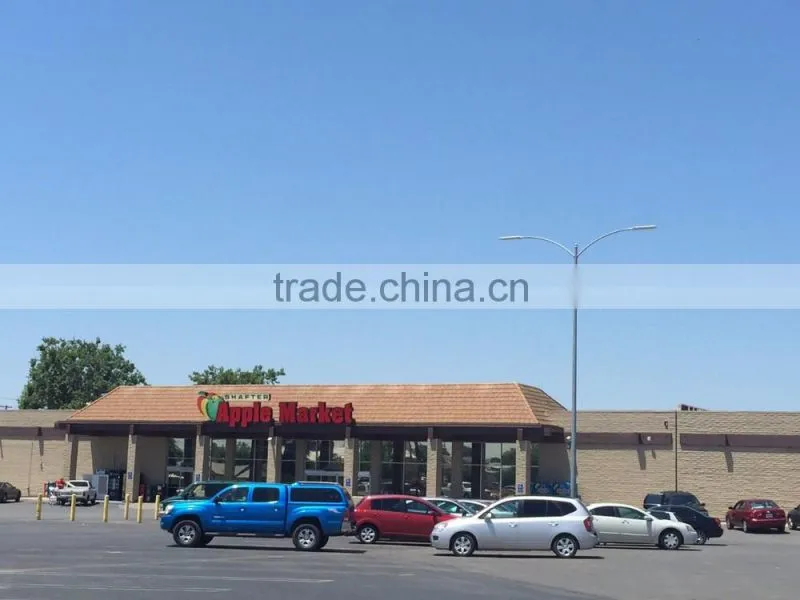

Parking Lot Project in US
240W iL Series Street Light in USA, replaced 1000W Traditional Light, Installation Height:7 meters

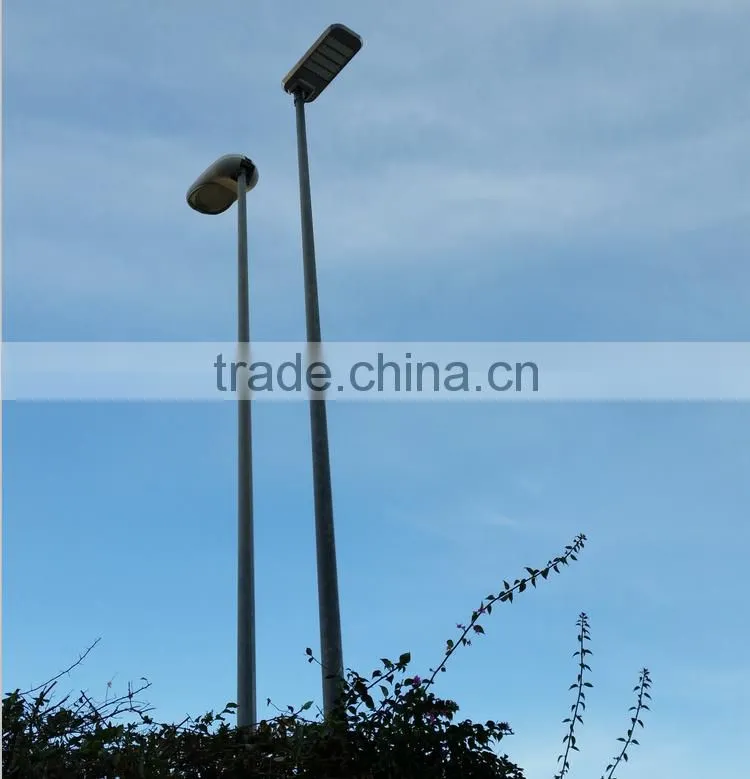

Street Light Project in Italy
200W iL Series Street Light in Malaysia, 370pcs, Installation Height:10meters, Beam Angel:60*150
Why Choose AOK?
Professional Service Team, Strict Quality Control and Certifications
AOK at Lighting Fairs
Introduction of AOK LED Light Company Limited
AOK LED Light was founded in 1998, and joined the LED business since 2002. With more than 12 years experiences in the LED field, AOK has become a professional manufacturer of LED outdoor lighting certifiedby ISO9001: 2008 and ISO14001. Now AOK's products are mainly sold to Europe, North & South Americaand Australia.
AOK Shenzhen manufacturing center was established in 2012, it has 3,000m2 and imported a series of top level manufacturing center. Now AOK has world class LED production lines and owns a series of patentedLED outdoor luminaire products such as high/low bay light, flood light, tunnel light, parking lot light, street light, canopy light, and surface mounted canopy light.
Contact Us Now!
|
1. What is the voltage of LED lights are available? 90-305VAC, 50/60Hz 277-528VAC, 12/24VDC 2. What is the CCT & Beam Angle of your LED lamp? Color temperature options: 3000/4000/5000/5700/6500K; Beam angel options: 60*150/ 70*150/ 80*150/ 90*150/ 60/ 120 degrees, etc. 3. What certificates you LED lamp achieved? UL CUL DLC CE SAA CB LVD EMC ROHS TUV-GS. 4. May I have our own LOGO? Yes, the laser print on LED fixture is available. 5. What is the warranty for your LED Lamp? Any quality problem, you don't need return it,we will sent you a new one. 6. Can I directly replace my existing lamps with LED lamps? 7. Is there intelligent option for your LED lamp? 8. Can you supply the professional lighting design? 9. What are Chips Brand and the Driver Brand? MeanWell Driver and Lumileds chips, we are the best partners of the Lumileds. 10. What the Lumen of your LED Lamp? It is 130lm/w aproved by LM79 report. |
