AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights

AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights thumbnail-1
AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights thumbnail-2
AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights thumbnail-3
AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights thumbnail-4
AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights thumbnail-5
AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights photo-1
AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights photo-2
AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights photo-3
AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights photo-4
AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights photo-5
US$ 200 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Lumileds Luxeon
Input Voltage(V):
90-305VAC
Lamp Power(W):
200
Contact Supplier Request Quote Chat Now
Fuzhou AOK LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Lumileds Luxeon
Input Voltage(V) 90-305VAC
Lamp Power(W) 200
Lamp Luminous Flux(lm) 26000
Lamp Luminous Efficiency(lm/w) 130
Color Temperature(CCT) Other, 3000-6500K
Working Temperature(℃) -40, +50
Working Lifetime(Hour) 62500
Lamp Body Material Aluminum
IP Rating IP66
Certification C-tick, CE, EMC, Energy Star, GS, LVD, SAA, UL
Warranty(Year) 8
Place of Origin Guangdong, China
Brand Name AOK
Model Number AOK-200WiL

AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights



Main Features

1. Wide Power Range: 40W to 280W

2. Input Voltage: AC90-305V; DC12V/24V

3. Light Efficacy 130lm/w with Lumileds Luxeon led chips, as per LM79 test report
4. Excellent Temperature Control: Temperature rising only <26 ℃
5. L70 @ 62,000hrs - as per TM21 test report.
6. IK10.  10KV SPD is optional.
7. Mitsubishi PC cover will not turn yellow as time goes by.
8. UL/DLC/TUV-GS/EMC/LVD/ROHS/SAA/CB

AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights



To View More AOK LED Lights, pls click the following





View More >>> View More >>> View More >>> View More >>> View More >>> View More >>>
Product Description
Parameters of AOK LED Street Light
Item No.

Power (W)

Module Qty

Luminous Flux

IP & IK

N.W.

PF(Power Factor)
AOK-40WiL 40 1 4800

IP66 & IK10

5.5kg

 PF>0.95
AOK-80WiL 80 2 9600 IP66 & IK10 7.5kg PF>0.95
AOK-120WiL 120 3 14400 IP66 & IK10 8.4kg PF>0.95
AOK-160WiL 160 4 19200 IP66 & IK10 9.7kg PF>0.95
AOK-200WiL 200 5 24000 IP66 & IK10 10.8kg PF>0.95
AOK-240WiL 240 6 28800 IP66 & IK10 11.6kg PF>0.95
AOK-280WiL 280 7 33600 IP66 & IK10 13.5kg PF>0.95



Different Light Distributions of AOK LED Street Light



AOK follows the North American IESNA standard in providing the optional lens with Type II and Type III.



60*150 Beam angle: Mainly suitable for the highway with 2 lanes.
70*150° Beam angle: Mainly suitable for the highway with 3 lanes.
80*150° Beam angle: Mainly suitable for even wider road.



You can always come to us for best and most suitable beam angle suggestions. AOK team can provide
dialux simulations for any specific projects.

AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights

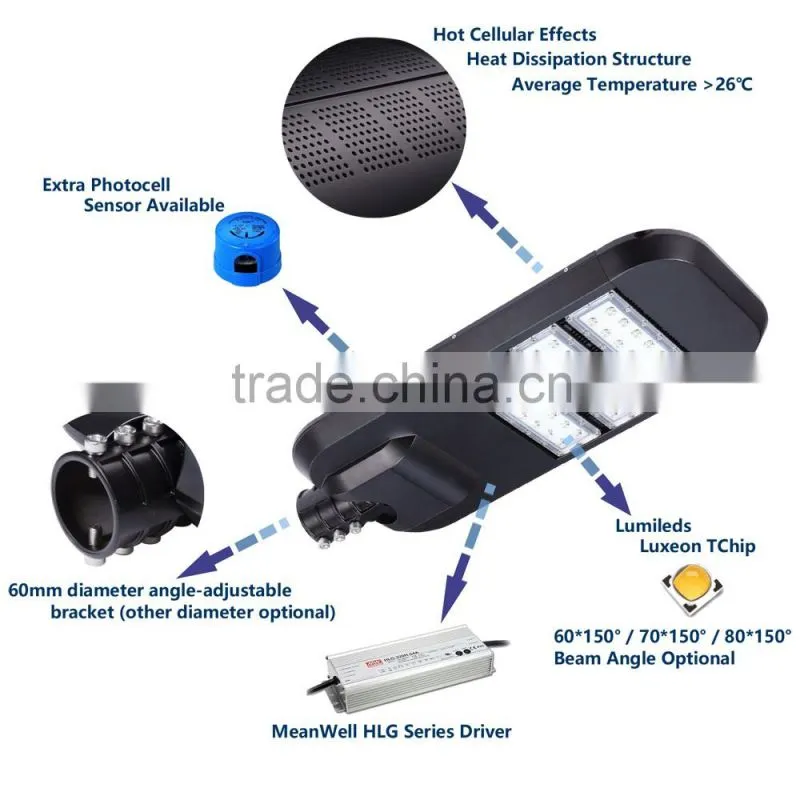

Detailed Image of AOK LED Street Light



AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights



AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights









Click this picture for details of UL FCC DLC Listed LED Street and Parking Lot Area Light with Multiple Brackets optional

  AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights

Certifications



Certificates of AOK LED Street Light



1. UL Certificate No.: E364473
2. TUV GS-Mark Approval, Certificate No. S 50301508
3. CB TEST CERTIFICATE, Ref. Certif. No.: DE 2-018509
4. SAA Certificate No.: SAA150326
5. RCM Certificate No.: SAA-150326-EA By SAA Approvals Pty Ltd
6. TM 21 Report - 62500hours - 70, @25℃

7. For DLC, please check in website: /QPL#results,search by keyword "AOK" for more details for all the models.

  AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights

Application&Projects



1. Street Lighting, Highway Lighting, Expressway Lighting

2. Bridge Lighting, Outdoor Area Lighting
3. Stadium Lighting, Parking Lot Lighting
4. Roadway Lighting
5. Area Lighting



Projects



AOK LED Street Light, CCT 4000K in Australia



AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights



AOK LED Street and Area Light, CCT 5000K in UK



AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights

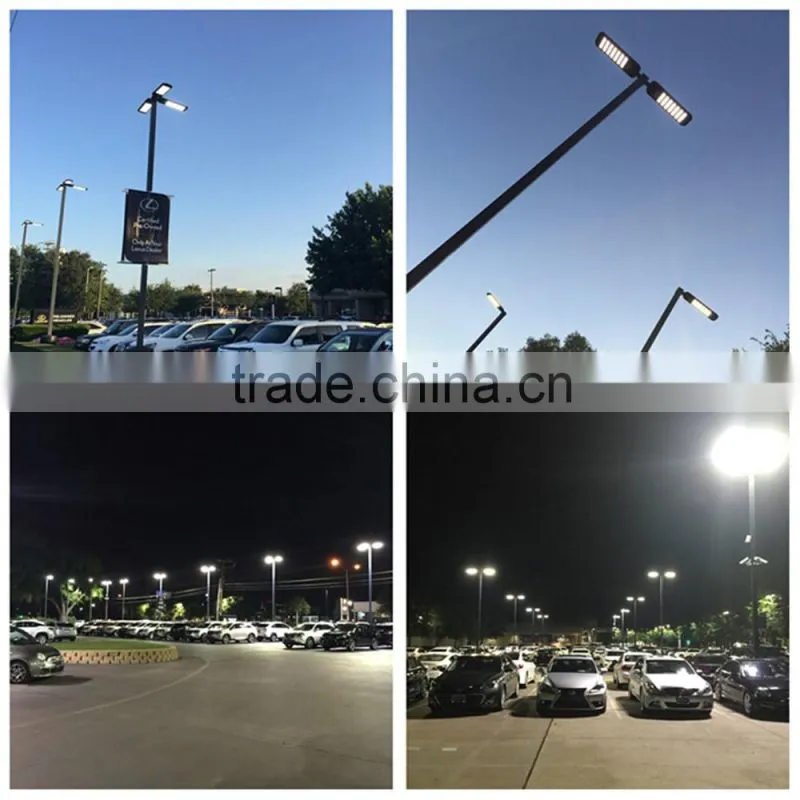

AOK-280WiL replace 1000W for Lexus 4S Store in USA

AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights

AOK-240WiL in USA - Square Pole for Parking Lots

AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights

  AOK-40WiL in Germany - Country Road AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights

 AOK-120WiL in Lithuania -  Roadway LightingAOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights

AOK LED Street Light, CCT 5000K in Columbia



AOK High Power UL DLC Outdoor Retrofit Fixtures USA Los Angeles LED Street Lights
