Outdoor Box Combined Type Power Transformers

Outdoor Box Combined Type Power Transformers thumbnail-1
Outdoor Box Combined Type Power Transformers thumbnail-2
Outdoor Box Combined Type Power Transformers thumbnail-3
Outdoor Box Combined Type Power Transformers thumbnail-4
Outdoor Box Combined Type Power Transformers photo-1
Outdoor Box Combined Type Power Transformers photo-2

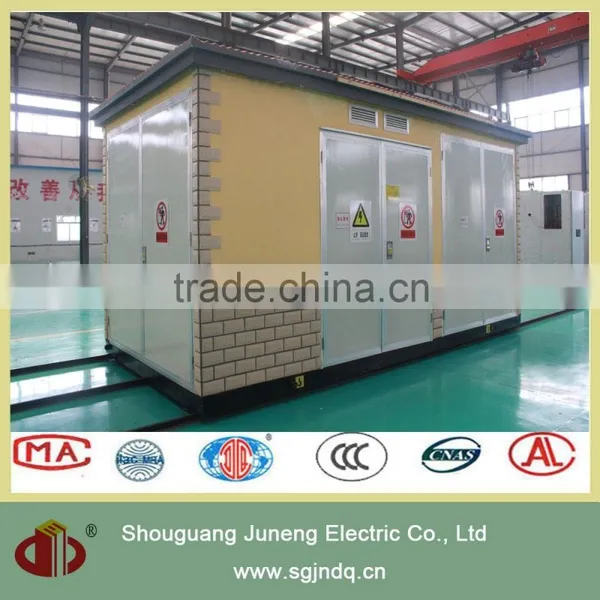

Outdoor Box Combined Type Power Transformers photo-3

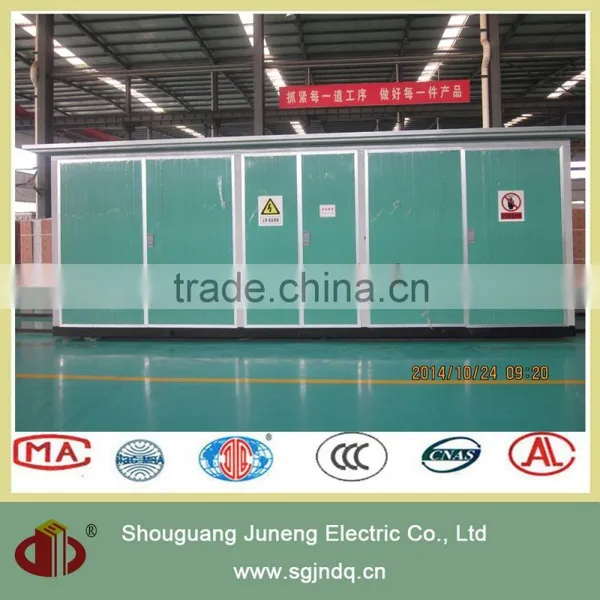

Outdoor Box Combined Type Power Transformers photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Juneng electric or customized
Model Number:
BXW
Contact Supplier Request Quote Chat Now
Shouguang Juneng Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Juneng electric or customized
Model Number BXW
Usage Power
Phase Three
Coil Number Other, duplex winding







Product Description

BXW series preloaded box type transformer substation (European type) is an outdoor distribution equipment ,consisting  of high voltage switchgear device, power transformer and low voltage switchgear device.



Basic technical parameter:

 Item transformer  High voltage Low voltage  Remark
rated voltage   12kV 0.54kV
transformer rated capacity 50-1600kVA
rated current   630A 100-2500A
rated frequency 50Hz 50Hz 50Hz
rated short-time withstand current   6kA/2(4)s 20kA/2(4)s 250-315kVA:15kA        400-800kVA:30kA
rated peak withdrawable current

40kA ,50KA

40kA, 50kA

 250-315kVA:15kA        400-800kVA:30kA
rated short-circuit making current       40kA,50kA
rated noise level        oil immersed transformer  less than;  50db dry transformer less than 55db
reactive power compensation       the standard is 15-30% of transformer capacity



Transformer Performance Parameter

rated

capacity

 kVA

voltage ratio

connection

 symbol

no load

loss kW

load

 loss kW

no load

current %

impedance

voltage %

noise db

temperature

rise K

HV kV

HV

taping

range

LV kV



national



standard

our

product

national

 standard

our

product

national

standard

our

product

national

standard

our

product

national

standard

our

product

national

standard

our

product

30

 6



 6.3               10





+/-5

   +/-2x2.5

0.4

Yyn0

Dyn11

0.14



0.80



2.80



4























 4.5

4











 5











 5.5

55.00

45.00

top oil

temperature

60

coil 60

top oil

temperature

50

 coil 60

50

0.19



1.15



2.50



63

0.22



1.40



2.40



80

0.25

0.19

1.65

1.10

2.20

1.10

100

0.29

0.22

2.00

1.30

2.10

1.00

160

0.39

0.31

2.85

1.85

1.90

0.80

200

0.47

0.32

3.50

2.25

1.80

0.70

250

0.57

0.45

4.00

2.65

1.70

0.70

315

0.68

0.54

4.80

3.05

1.60

0.60

400

0.81

0.64

5.80

3.80

1.50

0.60

500

0.97

0.75

6.90

4.50

1.40

0.50

630

1.15

0.91

8.10

5.30

1.30

0.50

800

1.40

1.08

9.90

6.80

1.20

0.50

1000

1.65

1.26

11.60

8.10

1.10

0.40

1250

1.95

1.54

13.80

9.50

1.00

0.40

1600

2.35

1.86

16.50



0.90

0.40





Packaging & Shipping



1.payment terms: T/T with 30% deposit  or L/C

2.packing detail:  standard export wooden case or as per the requirement of customers

3.delivery time: usually within 30 days after the deposit

4.delivery by sea, by train, by air and by express delivery

terms: FOB CIF EXW



Company Information



 Shouguang Juneng Electric Co., Ltd is located in Shouguang City Shandong Province, China.

Main Products:

high.low voltaeg switchgear assemblies, switchgear cabinet, intelligent prefabricated substation, 35kv and below oil immersed and dry type transformer, amorphous alloy transformer, special transformer, power lighting distribution box, ring main unit, cable branch box,vacuum circuit breaker etc.

Main Market:

As long-term suppliers of state grid, provincial power grid as Anhui, Tianjin, Shanxi, Shananxi etc and CNPC

CNOOC, the products of Juneng have been sold nationwide and exported to Africa, Southeast Asia and some other foreign countries and regions





Transformer Substation Display

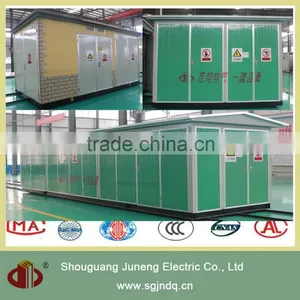

Outdoor box combined type power transformers
Outdoor box combined type power transformers
Outdoor box combined type power transformers
Outdoor box combined type power transformers





  Workshop & Equipment





Welcome  inquiry.

Any question, pls contact.Outdoor box combined type power transformers
