BCS815 electronic fuel delivery measuring system bosch diesel injection pump test bench
- 100 Set / Sets per Month
- Qingdao or any port of China
- Credit Card
- Professional universal auto diagnostic scanner FCAR F3-G Car & Trucks Universal Diagnostic Scanner
- Hot Sale Original vehicle diagnostic equipment Fcar F3-G professional car and truck universal car diagnostic tool
- Universal Truck Diagnostic Tool fcar F3-G diesel and gasolin car diagnostic scanner for Japan,korea,Europe,America Cars
- Original Multi-functional English/Russian Version Fcar Universal truck diagnostic tool 24V diesel truck diagnostic scanner
- used car diagnostic scanner F3-G Global Car and Truck Diagnostic Scanner
- Original Fcar F3-G Automotive Diagnostic Scanners for 12V+24V Cars and Heavy duty trucks
Product Details
Type: | Engine Analyzer | Voltage: | 220v 60hz / 380v 50hz | Power: | 7.5-18.5kw |
Certification: | ISO&CE | Applicable Models: | All of models for car and truck | Place of Origin: | Shandong, China |
Brand Name: | BEACON | Model Number: | BCS815 | Warranty: | 1 Years |
Product Description

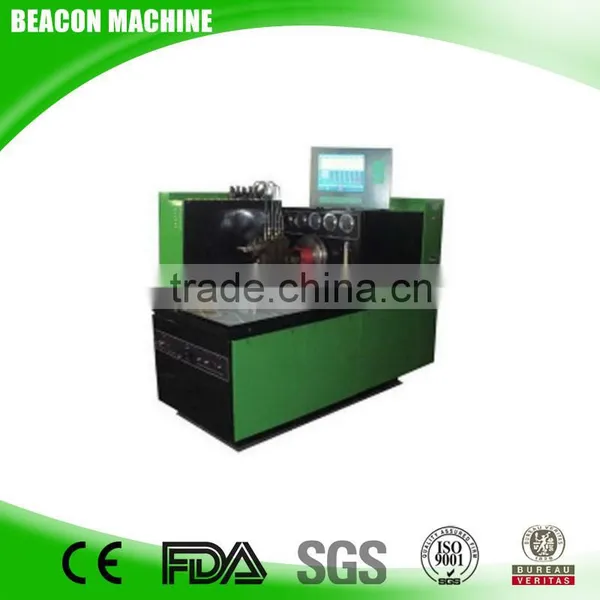

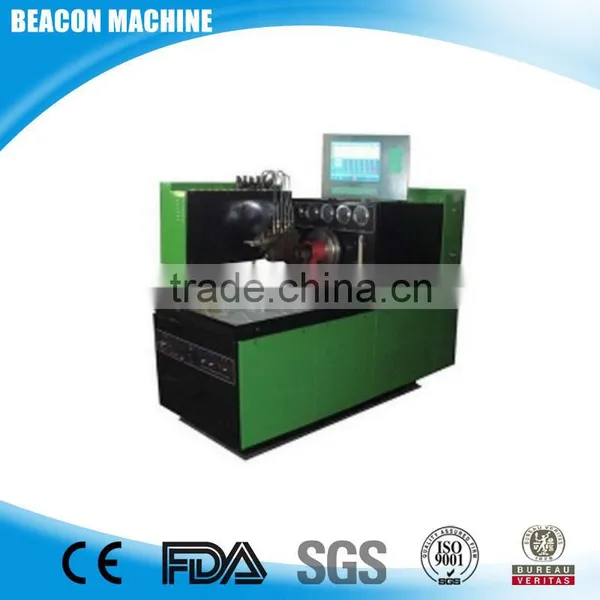

BCS815 electronic fuel delivery measuring system bosch diesel injection pump test bench
BCS815-- continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems.
the electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured valuse.
Main function
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke(on request)
13.oil lubricate (on request)
14. BCS815 electronic fuel delivery measuring system test bench Foced cooler (on request)
Technical characteristic
Adjustable cylinders numbers | Out power(Kw) | RPM | Rpm pre-set | Temperature control system | Positive pressure system | Positive pressure system |
12 | 7.5 11 | 0-4000 | √ | √ | √ | √ |
Air supply | DC power supply | internal pressure of VE pump | Oil return of VE pump | travel of tooth bar | Advanced angle | Capability with pump type |
√ | √ | √ | √ | (On request) | √(On request) | All in- line and rotary pump |
Also WE HAVE TEST BENCH OPTIONAL FUNCTION BELOW:
1.TRAVEL OF TOOTH BAR
2.OIL LUBRICATE
3.FORCED COLLING
4.Checking of the advance angle of advance device

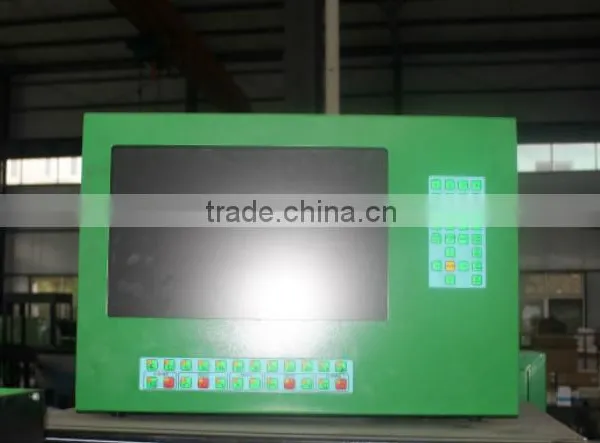

Photo of product details
Check the accessories for our BCS815:
Other function machine you need just click model name in this list! :
common rail test bench | diesel fuel test bench | common rail tester |
CRS708c(can add EUI/EUP&Cambox) | 12PSB | CR1000 (200USD with piezo function) |
BC-CR708(most competitive price) | BC3000 | CR2000A (can connect with diesel test bench) |
CRS200 | BC2001 | VP44 pump tester |
CRS300(can add VP37 VP44 EUIEUP) | BC2001PLC | VP37 pump tester |
CRI2000 | BCS619 | EUI EUP&Cambox |
BCS200 | BCS815 | V3V4V5 pump tester |
BCS300 | BC-CR819 | |
PQ1000(only 1300USD per set) |
