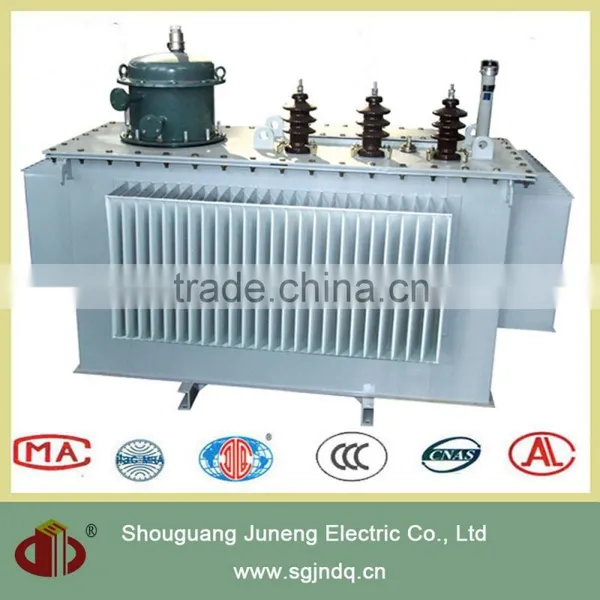

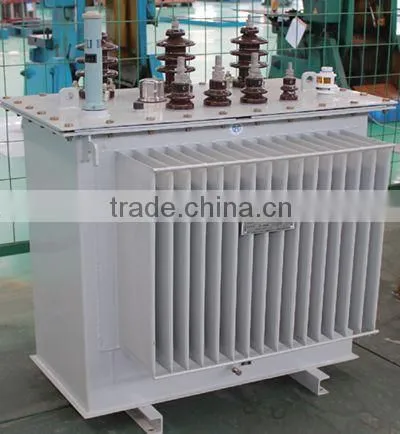

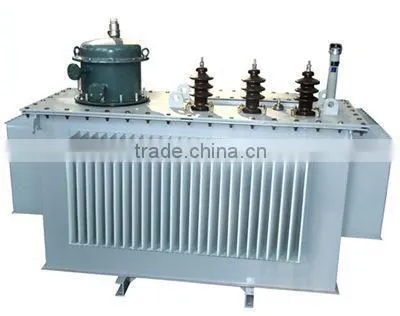

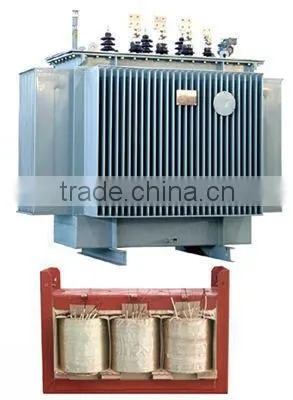

SII-M-ZT DistributionTransformer with On-load Tap Changer
Product features
SII-M.ZT series on-load capacity distribution transformer is a new energy-saving transformer self-developed by our company.
Technical feature: when small capacity, relatively low no-load and load loss with significant energy saving.
On-load capacity transformer applies to the changes of seasonal load with a larger range; especially it is suitable
for consumers of short period variation (consumers as road lamp and lighting). The transformer with small
capacity is better in energy saving than amorphous alloy transformer.
Compared to single S11 distribution transformer, Sll-M.ZT series on-load capacity distribution transformer decrease annual operating cost by an average of 50% or more.
Rated capacity |
Voltage ratio & taping range |
Connection symbol |
no-load loss W |
Load loss W |
No-load current % |
Short circuit impedance $R |
||
HV KV |
HV taping range % |
LV KV |
||||||
160(50) |
10/10.5/11 |
+/-5 |
0.4 |
Dyn11 (Yyn0) |
400(170) |
2585(870) |
1.6(0.9) |
4.0(4.0) 4.5(4.0) |
200(63) |
180(200) |
3060(1040) |
1.5(0.9) |
|||||
250(80) |
560(250) |
3600(1250) |
1.4(0.7) |
|||||
315(100) |
670(290) |
4320(1500) |
1.4(0.7) |
|||||
400(125) |
800(340) |
5220(1800) |
1.3(0.6) |
|||||
500(160) |
960(400) |
6210(2200) |
1.2(0.6) |
|||||
630(200) |
1200(470) |
7650(2600) |
1.1(0.5) |
|||||
Note: data in brackets is technical parameter of small capacity. | ||||||||

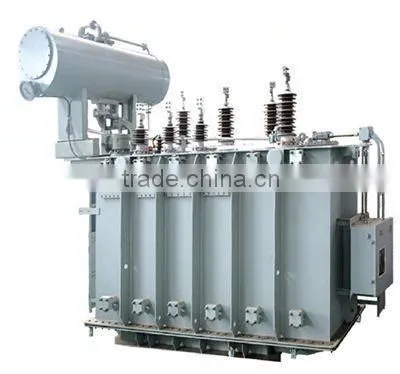

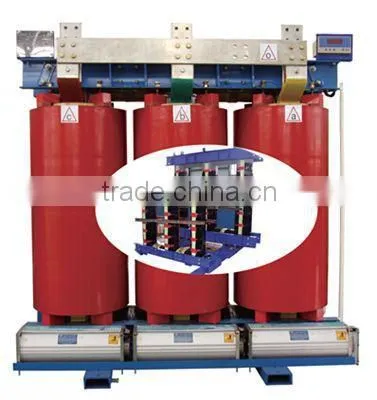

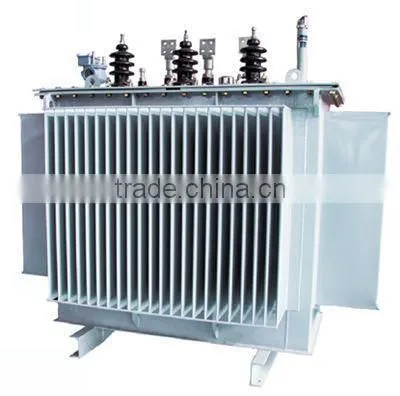

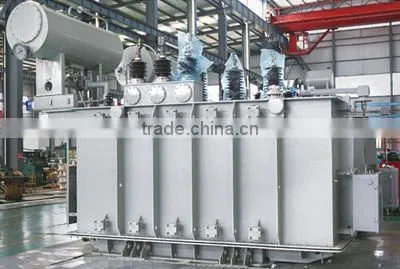

Main Transformer
|
|
|
|
|
|
|
|

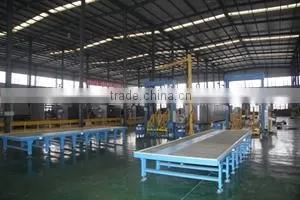

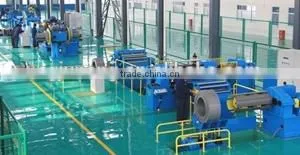

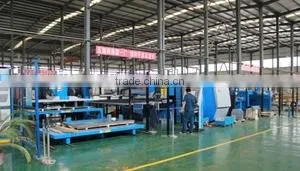

Workshop & Equipment
|
|
|
|
