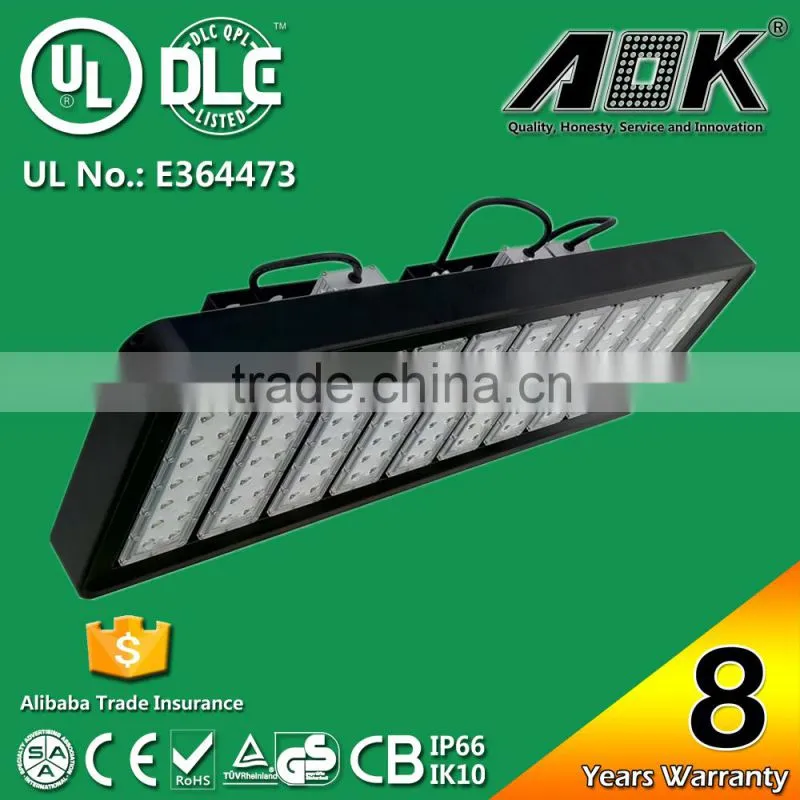

DLC 400Watt Outdoor LED Flood Light 8 Years Warranty
1. Wide Power range: 40W to 400W
2. Input Voltage: 90-305VAC, 277-528VAC, DC12V/24V
3. Long Lifespan, TM21 reported L70>62000hours
4. SMD LumiLEDs, 110-120lm/w
5. Meanwell driver, IP65 and IP67 optional
6. Warranty: 8 years
7. DLC
8. Short production time: 5-7 working days
| To View More AOK LED Lights, pls click the following |
View More >>> View More >>> View More >>> View More >>>
| Parameters of AOK LED High Bay Lights |
| Item No. |
Power (W) |
LED Qty |
Module Qty |
Luminous Efficacy |
Luminous Flux |
CRI (Ra>) |
Junction Temp (Ta=40℃) |
Max Current (constant) (A) |
| AOK-40Wi | 40 | 14 | 1 | 115 | 4600 | 80 | 92.4 | 0.45 |
| AOK-80Wi | 80 | 28 | 2 | 115 | 9200 | 80 | 92.4 | 0.9 |
| AOK-120Wi | 120 | 42 | 3 | 115 | 13800 | 80 | 92.4 | 1.35 |
| AOK-160Wi | 160 | 56 | 4 | 115 | 18400 | 80 | 92.4 | 1.8 |
| AOK-200Wi | 200 | 70 | 5 | 115 | 23000 | 80 | 92.4 | 2.25 |
| AOK-240Wi | 240 | 84 | 6 | 115 | 27600 | 80 | 92.4 | 2.66 |
| AOK-280Wi | 280 | 98 | 7 | 115 | 32200 | 80 | 92.4 | 3.1 |
| AOK-320Wi | 320 | 112 | 8 | 115 | 36800 | 80 | 92.4 | 3.55 |
| AOK-360Wi | 360 | 126 | 9 | 115 | 41400 | 80 | 92.4 | 4 |
| AOK-400Wi | 400 | 140 | 10 | 115 | 46000 | 80 | 92.4 | 4.45 |
| Different Light Distributions of AOK LED High Bay Light |
For Different application requirement, AOK customised different types of beam angles for customers,
at the moment we have 60°, 90*100°, 120° beam angle available.

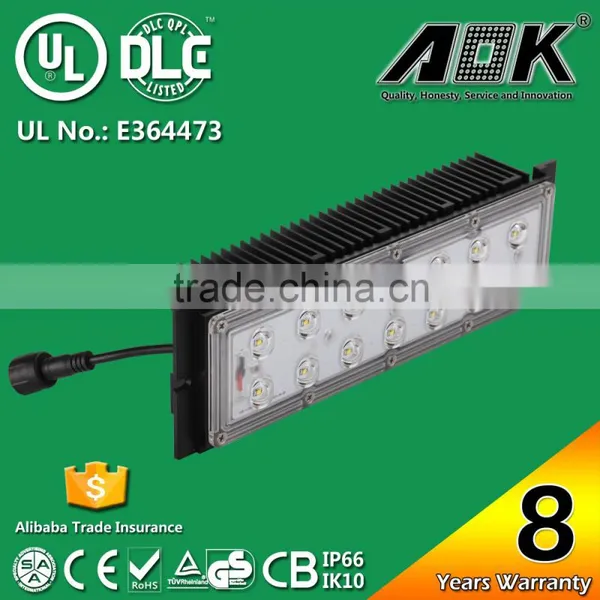

| Detailed Image of 400W LED Flood Light |
| Certificates of AOK 400W LED Flood Light |
| 1. UL Certificate No.: E364473 |
| 2. TUV GS-Mark Approval, Certificate No. S 50277285 |
| 3. CB TEST CERTIFICATE, Ref. Certif. No.: DE 2-017520 |
| 4. SAA Certificate No.: TUV01877E |
| 5. For DLC, please check in website: /QPL#results, search by keyword "AOK" for more details of interested items. |
| Application of 400W LED Flood Light |
1. Warehouse Lighting, Factory Lighting, Industrial Lighting
2. Garage Lighting, Workshop Lighting
3. Outdoor Area Lighting, High Mast Lighting
4. Supermarket Lighting, Store Lighting
5. Tunnel Lighting, Bridge Lighting
6. Gas Station Lighting
| Projects finished with AOK LED Flood Light |
Warehouse Project in Canada - Using 280W LED High Bay Lights, 5000K
Logistic Warehouse of DEMAG Germany - using 200W LED High bay lights 5700K
Outdoor Tennis Court Project in the US - Using 6pcs 280W LED Lights 5700K
Outdoor Lighting Applications as flood light, mobile tower lighting and High Mast Lighting
1. Standard export Carton Box, 1unit/ carton
2. Pallet packing for bulk orders, 30 to 40 units/ pallet
3. Container loading for large orders.
AOK has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
| LED Light QuaityTesting Equipments |
For every piece of AOK LED High Bay Light, they will be tested in many procedures.
Picture No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under
extreme temperature environment.
Picture No. 2: Anti-Corrosion Testing, to make sure the high bay lights are working well even under
corrosive environment.
Picture No. 3: Drop Testing, to make sure the lamps remain good even dropped from high places
Picture No. 4: Anti-Vibration Testing, to make sure the packages are strong and good enough for delivery.
Picture No. 5~6: Dark Room for testing IES files and other Photometric datas.
| Quality Control - Aging department |
For every piece of AOK LED Lights, they will be aged for at least 72 hours before delivery to make sure of
their long term and stable performances within lifetime.
| Introduction of AOK LED Light Company Limited |
| Strict Quality Control System |
|
ISO9001:2008 Quality control system Complete & strict quality control system from incoming material quality control, procession quality control to ready prodcut quality control. High Quality Manufacturer authorized by UL organization. Best Partner of SMD Lumileds from 2013~2014, 2014~2015 |
More Company Introduction |
|
AOK is a leading manufacturer of Outdoor and Industrial LED lighting products in China. Main products: LED High Bay Light, LED Flood Light, LED Tunnel Light, LED Gas Station Canopy Light, LED Street Light etc with 8 years warranty. |
| Production Center of AOK |
| AOK service |
1. Before and after sales in time service 7/24.
2. Professional Lighting solution suggestions, dialux simulation available.
3. Payment terms: Paypal, TT, LC, DP etc.
4. Shipment terms: FOB, CIF, CFR
5. Short Lead time: 5-7 working days for sample order and orders less than 100units.
6. NO MOQ required, sample testing welcome.
| AOK at Lighting fairs |
To know market trend and new products better, AOK is alway active in different kinds of Lighting exhibitions.
1. AOK attends HKTDC Lighting Fairs Spring Edition April 9th ~ 12th.
2. AOK attends HKTDC Lighting Fairs Autumn Edition Oct 27th ~31st. (AOK Booth HALL3-3CON-095 )
3. AOK attended Las Vegas Lighting fair in May 2014
4. AOK attended New York Lighting Fair in May 2015
5. AOK attends Guangzhou Lighting fair in every June 9th ~12th
| After sales contact information |
Company Name: AOK LED Light Company Limited
Add: 1 Building, St. George's Technology and Industrial Park, Shajing Street, Shenzhen City, China.
Contact: Ms. Bonnie Lin
Skype online: aokled18
Email: sales18(at)
