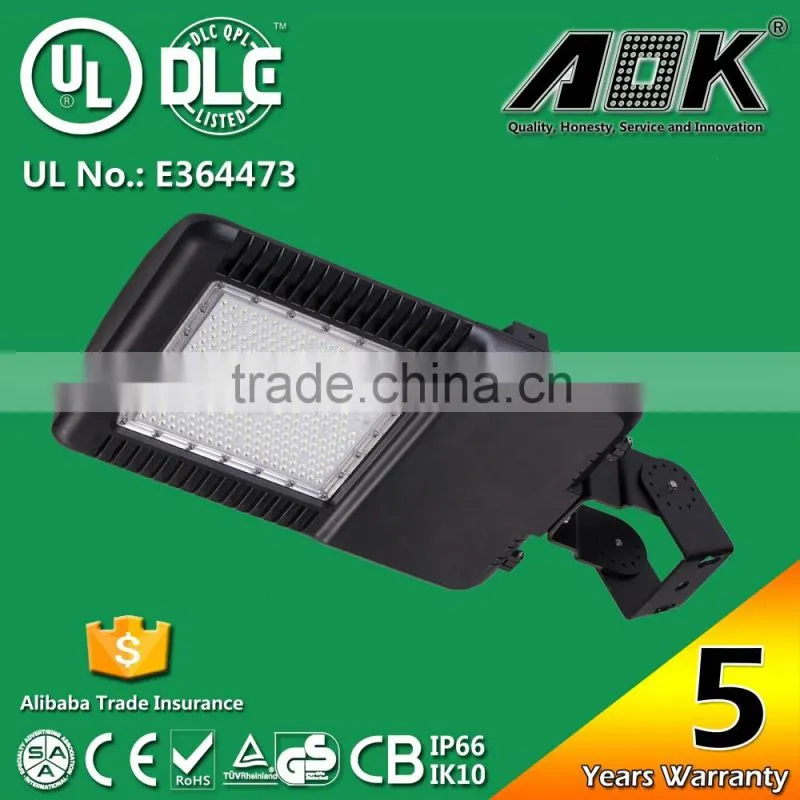

Help Center1000W Replacement 5 Years Warranty IP66 With Photocell LED Parking Lot Light
Related Products
-
AOK-75WiT LED Area Light Price, LED Street Light OutdoorUS$ 148 - 158MOQ: 1 Piece -
Led Area Light 40w-200w Shoebox LightUS$ 148 - 158MOQ: 1 Piece
-
IP66 IK10 Photocell LED Area Car Park and Road LightingUS$ 265 - 265MOQ: 5 Pieces
-
1000W Replacement FCC UL CUL DLC IP66 IK10 Photocell Shoebox Garage 265W LED Parking Lot LightingUS$ 265 - 265MOQ: 5 Pieces
-
AOK-75WiT UL CUL DLC SAA CE RoHS Approval 5 Years Warranty LED Area LightUS$ 148 - 158MOQ: 1 Piece
1. Power range: 75W to 265W
2. Input Voltage: 90-305VAC, 347VAC, 480VAC, DC12V/24V
3. Long Lifespan, TM21 reported L70>62000hours
4. Philips LumiLEDs, 120-130lm/w
5. Meanwell driver, IP66
6. Warranty: 5 years
7. UL cUL DLC, TUV GS CE RoHS, CB, SAA, TM21, IK10 listed
8. Short production time: 5-7 working days
9. Various Mounting Brackets available: Rotatable bracket, Wall Mounting Bracket, Square Lamp Pole bracket, U shape hanging bracket
| For More of AOK LED Lights, pls click the following |
View More >>> View More >>> View More >>> View More >>>
| Parameter of Parking Garage LED Light |
| Item No. | AOK-75WiT |
AOK-110WiT |
AOK-150WiT |
AOK-200WiT |
AOK-225WiT |
AOK-265WiT |
| Luminous Efficacy | 130lm/w | 130lm/w | 130lm/w | 130lm/w | 130lm/w | 130lm/w |
| Luminous Flux | 9750lm | 14300lm | 19500lm | 26000lm | 29250lm | 34450lm |
| Input Voltage | 90-305VAC / 347VAC / 480VAC |
|||||
| CRI | Ra>80 | |||||
| CCT | 3000K, 4000K, 5000K, 5700K, 6500K | |||||
| Color | Black and Brown Color housing available | |||||
| IP Rating | IP66 & IK10 | |||||
| Warranty | 5 years Warranty | |||||
| Certification | UL cUL DLC FCC TUV GS CE RoHS SAA CB certified | |||||

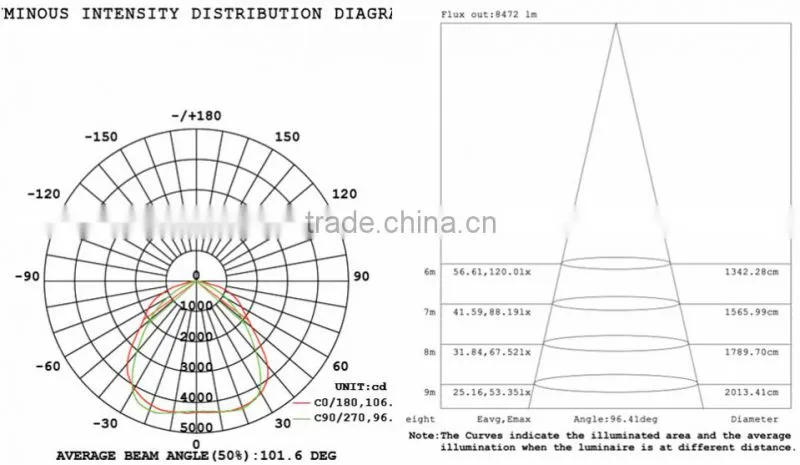

| Light Distribution of Parking Garage LED Light |
After market research and information collected, AOK engineering team developed a most suitable optic for Parking Lot Lighting.
IES Files, CIE Files, LDT files available for calculating of certain projects.

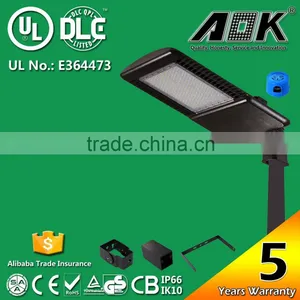

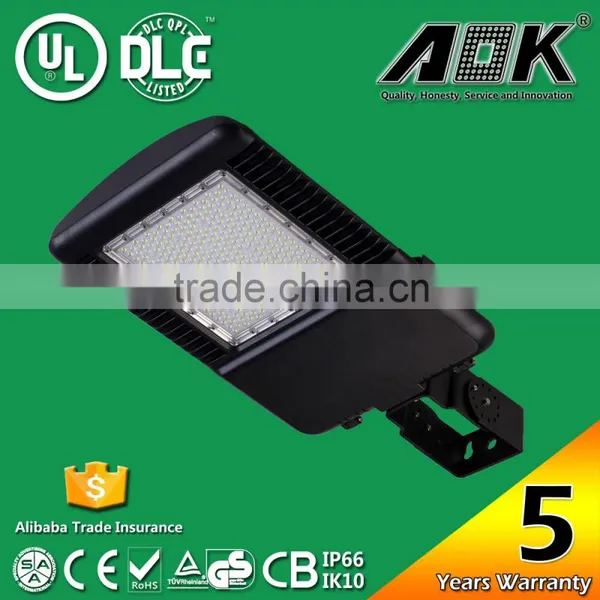

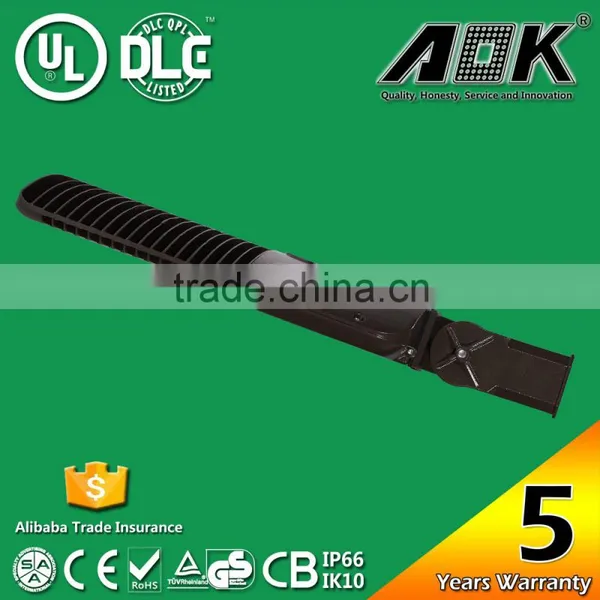

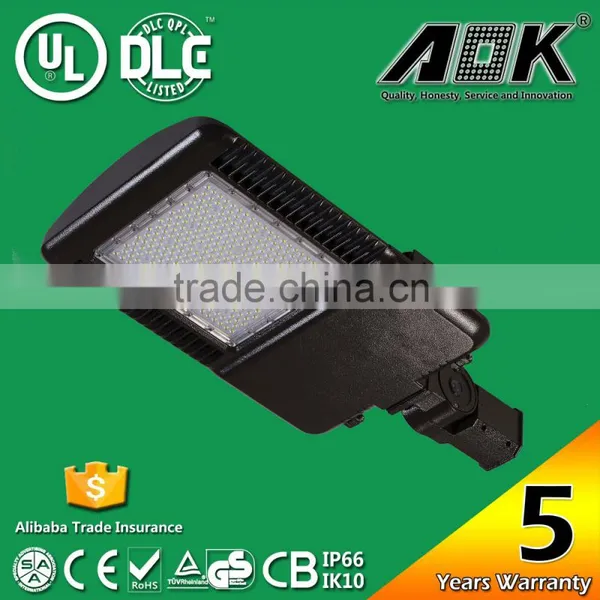

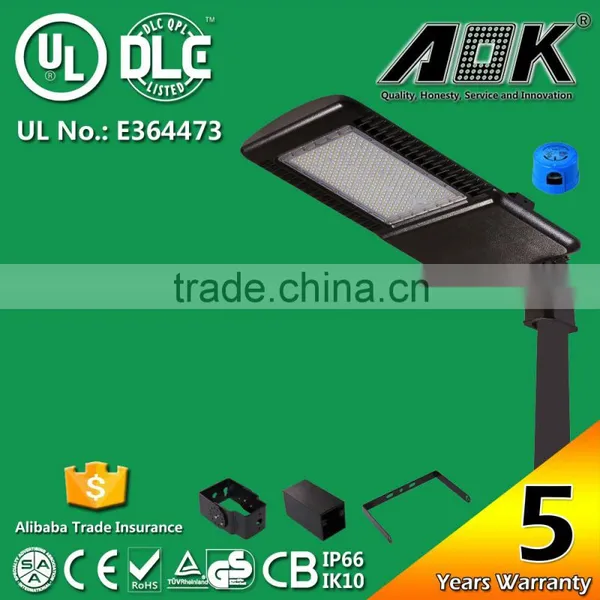

| Detailed Image of Parking Garage LED Light |
| Certificates of AOK Parking Garage LED Light |
| 1. UL Certificate No.: E364473 |
| 2. TUV GS-Mark Approval, Certificate No. S 50277285 |
| 3. CB TEST CERTIFICATE, Ref. Certif. No.: DE 2-017520 |
| 4. SAA Certificate No.: TUV01877E |
| 5. For DLC, please check in website: /QPL#results, search by keyword "AOK" for more details of interested items. |
| Application of Parking Garage LED Light |
1. Parking Lot Lighting, Square Lighting
2. Street Lighting, Highway Lighting
3. Outdoor Area Lighting, High Mast Lighting
4. Roadway Lighting, Path Lighting
5. Area Lighting, Square Lighting

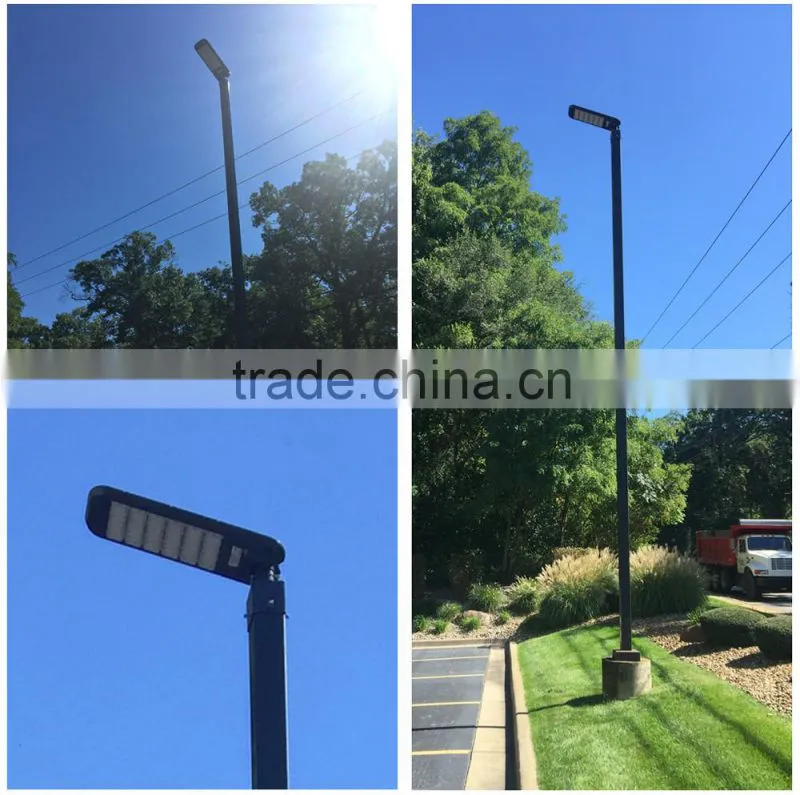

| Projects finished with Parking Garage LED Light |
1. Standard export Carton Box, 1unit/ carton
2. Pallets Packing For Bulk Orders for sea freight, 30 or 40units / pallet
3. Container Loading For Large Orders
4. Customised LOGO and box available
5. Customised LOGO can be printed on the lamp body
AOK has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
| LED Light QuaityTesting Equipments |
For every piece of AOK LED High Bay Light, they will be tested in many procedures.
Picture No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under
extreme temperature environment.
Picture No. 2: Anti-Corrosion Testing, to make sure the high bay lights are working well even under
corrosive environment.
Picture No. 3: Drop Testing, to make sure the lamps remain good even dropped from high places
Picture No. 4: Anti-Vibration Testing, to make sure the packages are strong and good enough for delivery.
Picture No. 5~6: Dark Room for testing IES files and other Photometric datas.
| Quality Control - Aging department |
For every piece of AOK LED Lights, they will be aged for at least 72 hours before delivery to make sure of
their long term and stable performances within lifetime.
AOK LED Light Company Limited
| Strict Quality Control System |
|
1. ISO9001:2008 Quality control system 2. Complete & strict quality control system from incoming material quality control, procession quality control to ready prodcut quality control. 3. For every piece of products from AOK, they are aged for at least 72 hours before delivery. 4. High Quality Manufacturer authorized by UL organisation 5. Best Partner of Philips LUMILED from 2013-2014, 2014-2015 |
AOK Production Center
AOK @ Lighting Exhibitions
In order to know better about Market Trend and New product information, and in order to know customers better and have better communication with customers, AOK is active in different kinds of exhibitions.
Company Name: AOK LED Light Company Limited
Add: St. George Industrial Park, Shajin Street, Shenzhen City, China.
Contact: Ms. Elaine Yan
Skype online: aokled8
Email: sales8(at)
Send Inquiry to This Supplier
