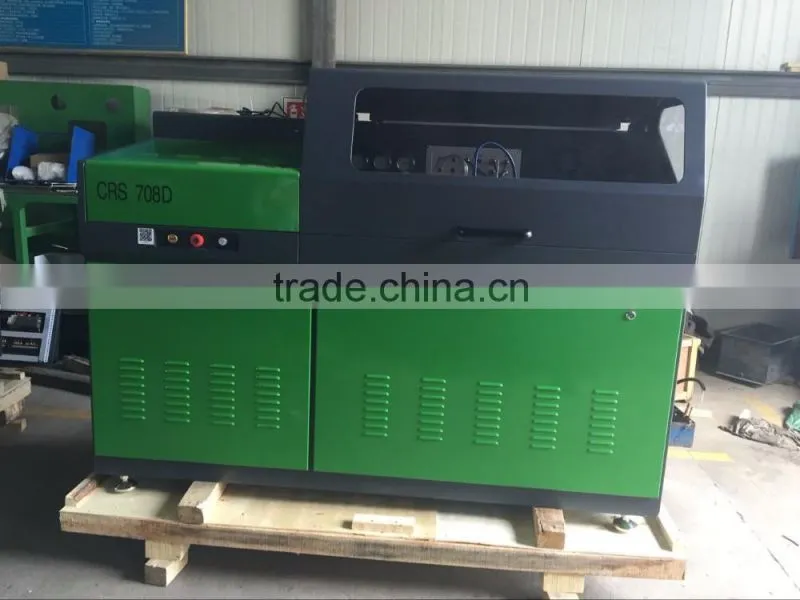

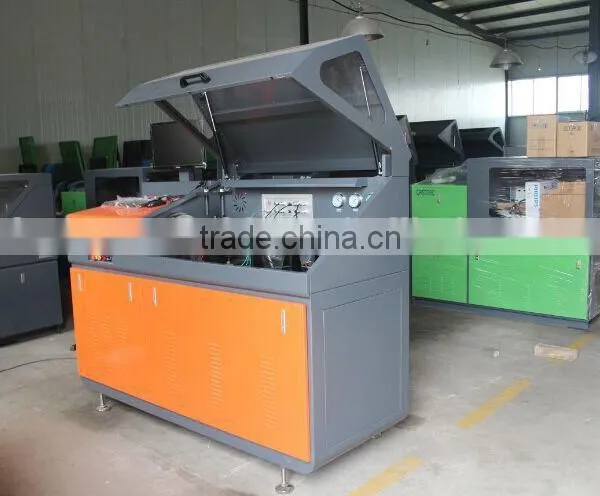

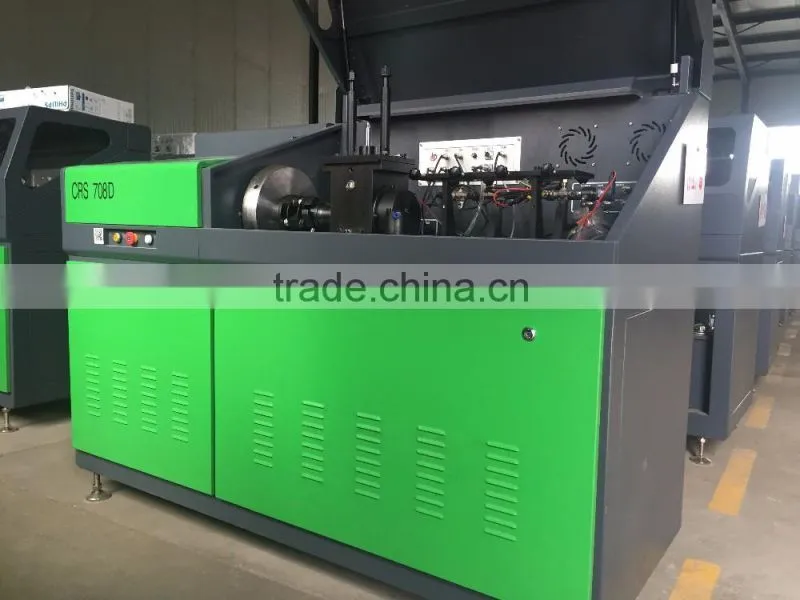

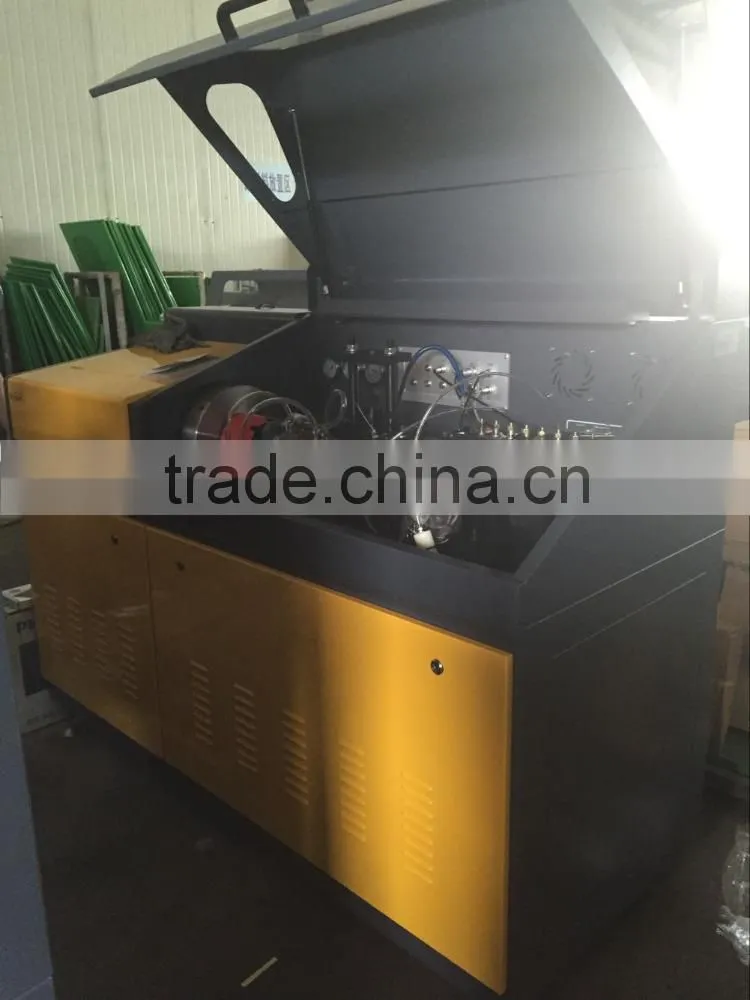

CRS-708D common rail test bench with eui eup system and cam box

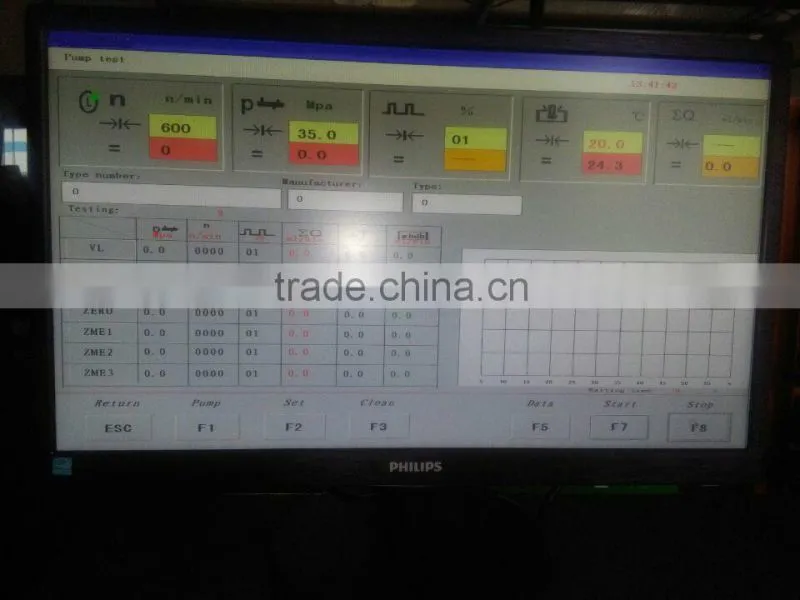

1.Industrial computer control ,WINDOWS OS ,19inch LCD screen display
2.Equipped with original imported high - precision flow sensor and automatic turning over measuring cup to do the testing, these two systems can be standby equipment for each other, also ensure the accuracy and reliability of testing.
3. Industrial PC real-time control and display, WINDOWS OS.
4. Oil quantity sensor test oil quanyity, 19 inch LCD screen display
5. Adopted original BOSCH common rail pump to provide 0~1600 bar rail pressure.
6. Rail pressure can be tested in real time, closed-loop control, Stable pressure, overvoltage protection
7. Adjustable pulse width and frequency of injector’s driving signal
8. Injection times can be set free
9. Preset about 500kinds of injector data, easy to search and compare
10. Short circuit protection

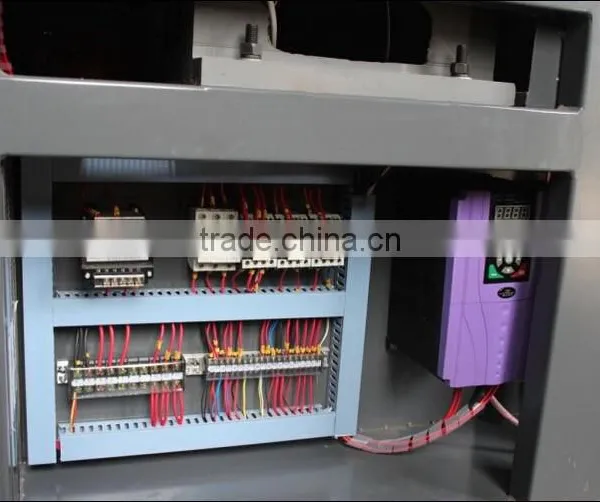

11. Adopted super frequency converter to control rotation speed and insure the testing accuracy
12. Wide operation space, protective plexiglass cover to make sure your safe
Functions
1. crs708 common rail electrical diesel fuel injection pump test bench,instrument,equipment This system support lots of injector brand, such as BOSCH, DENSO, DELPHI, SIMENS and so on
2. Check the sealing of CRI (common rail injector)
3. Test oil quantity of CRI during pre-infection period
4. Test oil quantity of CRI under full load
5. Test oil quantity of CRI under idle speed
6. Test oil quantity of CRI under correction working condition
7. Test oil-returning quantity of CRI
8. Check the uniformity of CRI
9. Can test all kinds of CRI pumps
10. Provide open database, you can upgrade, modify the data.
11. Testing finish , report formed, you can save or print it.
Technical parameters
CRS708 common rail electrical diesel fuel injection pump test bench,instrument,equipment | |
Voltage |
400V/50Hz or 220V/60Hz |
Power |
11KW 15KW 18.5KW |
Driving coupling |
ISO4008/10115 mm length 116mm |
Test oil tank capacity |
32Lt |
Certification |
CE/ISO9001 |
Operating conditions |
DTC Speed range 0-3500rpm |
Feeding pump |
Power:0.75KW Flow:6.3 L/min |
Heater |
2KW |
Measurement sensor |
Flow gauge high pressure pump 1-600 ml/min Rail high pressure gauge:0-1600bar |
Temperature range |
Measuring delta T 0-100 °C Measuring sensor Pt100 |
Test oil type |
DIN ISO 4113 |
Size |
175*77*144 cm |
Weight with package |
800KG |
Material |
steel |
