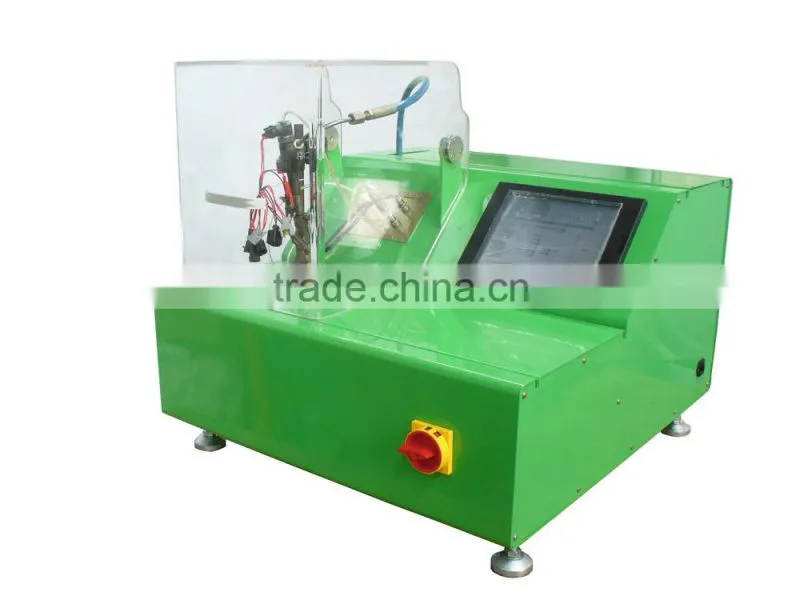

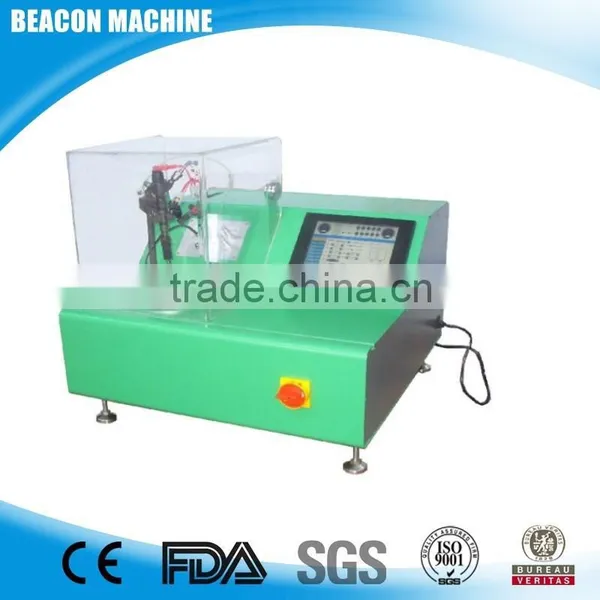

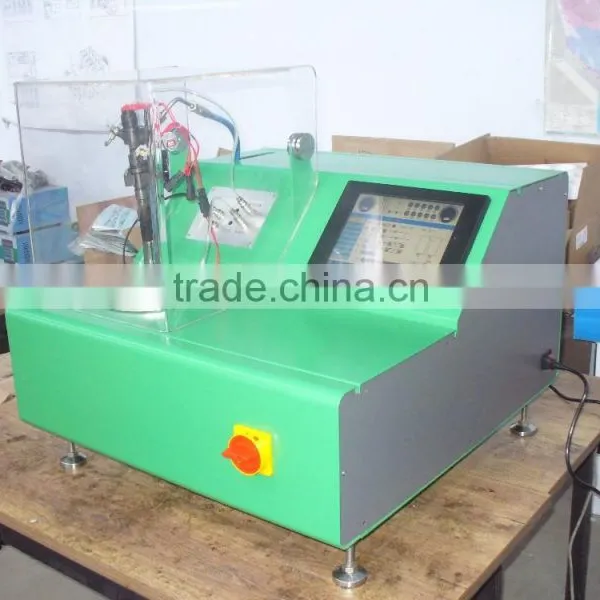

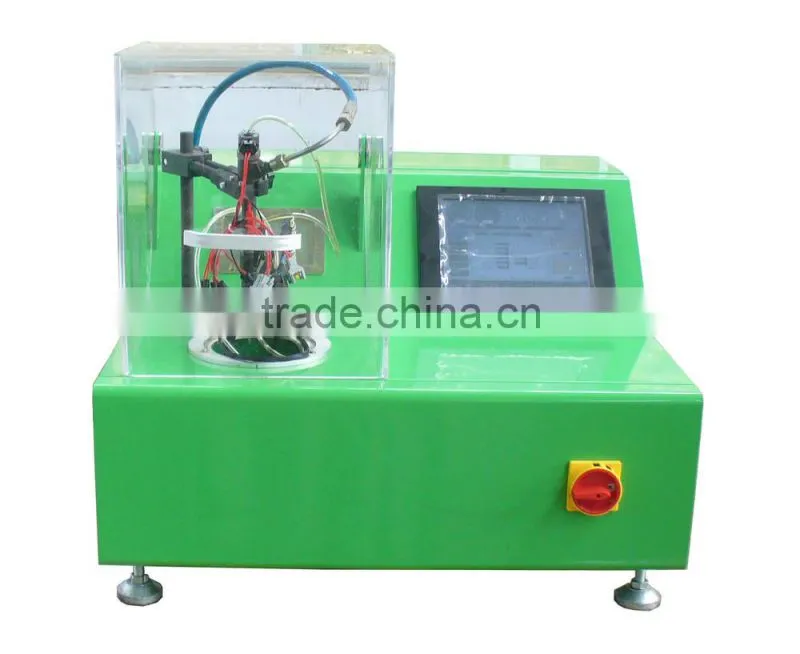

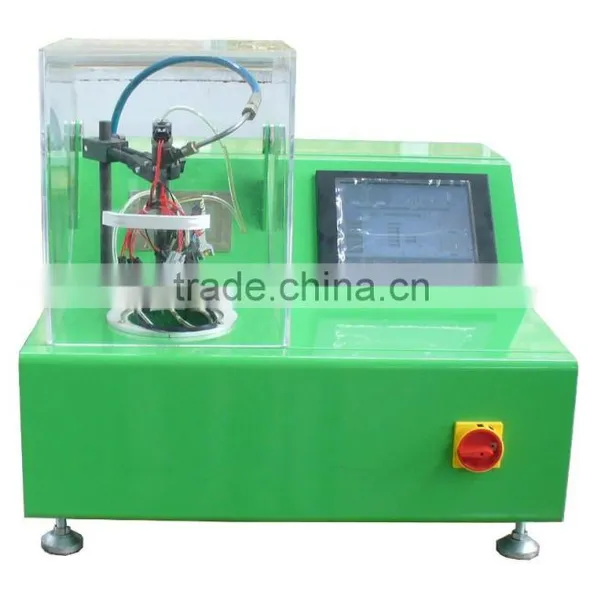

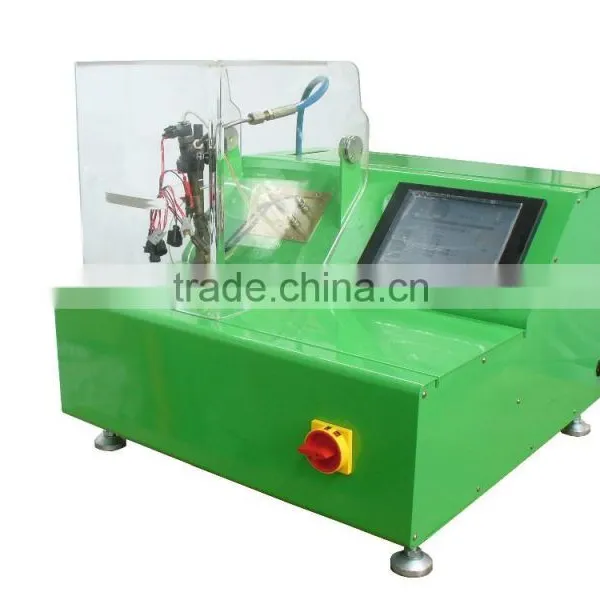

Beacon EPS200 common rail diesel injector auto electrical test bench or tester with printer machine
EPS200 Common Rail Injector Test Bench is our latest indepentent researched special device to test the performance of high-pressure common rail injector,
controlled by industrial computer,
Windows operating system. The oil quantity is measured by sensor and displayed on computer screen. All data can be searched and saved.
It adopts BOSCH original common rail pump to provide 0~1600 bar of rail pressure. The rail pressure can be adjusted automatically.
it can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.
Advanced technology, steady performance, precise measurement and convenient operation.
>>>CHARACTERISTIC
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3. More than 400 kinds of injecotors data can be searched and used.
4. Data can be searched and saved.
5. It is installed BOSCH common rail pump to provide 0~1600 bar of rail pressure.
6. Rail pressure can be tested in real time, it contains the high-pressure protection function
7. Pulse and frequency of the injector drive signal can be adjusted.
8. Injection time can be setted.
9. Protection function of short-circuit.
10.Precise measurement, easy operation, low noise.
>>>FUNCTION
1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2. Test 1 piece of injector.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
10. Clean the common rail injector.
>>>TECHNICAL PARAMETER
1. Pulse width |
0.1~20ms |
2. Continuous injection times |
0~1000 |
3. Fuel temperature |
40±2°C |
4. Rail high pressure |
0~1600 bar |
5. Test oil filtered precision |
5μ |
6. Input power |
380V/50hz/3phase or 220V/60hz/3phase |
7. Rotation speed |
0~3000RPM |
8. Oil tank capacity |
16L |
9. Overall dimension(MM) |
865×775×1430 |
10. Weight |
150KG. |

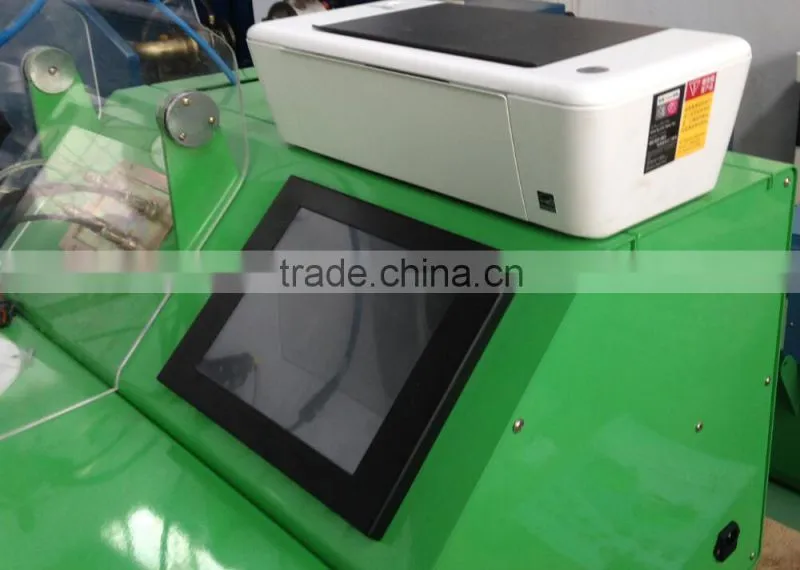

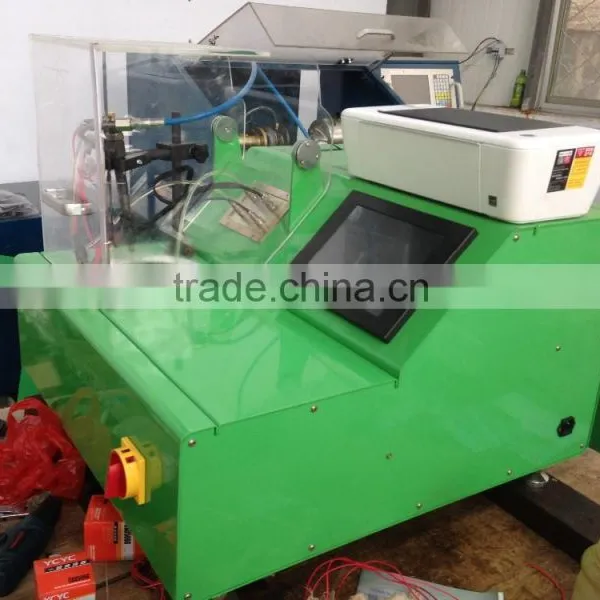

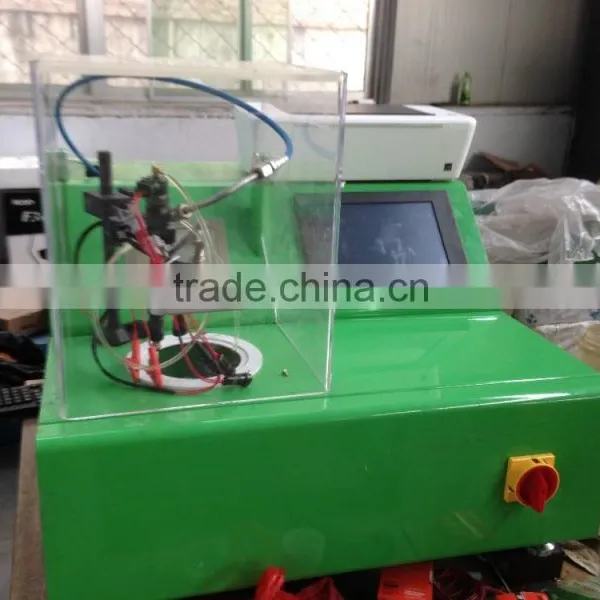

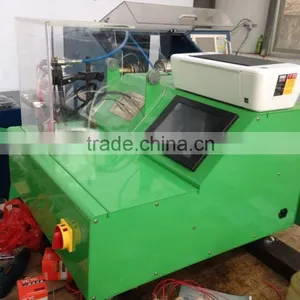

With printer machine
Inside of eps200 test bench
Taian Beacon Machine Manufacturing Co., Ltd. is the leading manufacture in diesel injection pump test bench and turbocharger balancing machine in China ,
our products already sold to more than 100 countries . Our products including common rail injector test bench ,common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,Denso ECD-V3 ,V4, V5 pump tester ,PT cummins pump and injector tester ,common rail tools and spare part .
Welcome you to visit our factory and cooperate in the future.
Q1: What is your Trade Terms?
A: FOB CFR CIF EXW DDP and DDU
Q2: What is your payment terms?
A: T/T,Western Union ,PayPay,Escrow and L/C
Q3: What is your delivery time?
A: Test bench is 7-10 working days,tester, diagnostic tool and injectors,we have stock.
Q4: Why should I choose your product?
A: We can provide you the best quality and the most competitive price ,and we have our own engineer,if you have any requirements you can contact us directly~
