Drive shaft balancing machine balancing machine for turbocharger HBQ-500a
Widely used in electric motors, fan/blower, diesel engine, farm machine, textile machiner, printing machine, paper-making machine, water pump, automoible etc
Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc
Details:
Industrial control computer 19 "LCD color screens
WidowsChinese and English system double choice
With GB-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module
Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
Vector graphics, waveform and out of balance, shows at the same time
Surplus balabcing g and unbalanced torque, the g cm, g mm can choose to display
Optional function
1,Balance Angle automatic tracking function
2,Parking automatic positioning function
3,Vector Angle function decomposition
Lathe bed according to user requirements lengthen
Characteristics (1): this series is hard supporting horizontal dynamic balance machine, with roller bearing, the circle take drag, regular for double speed motor drive, "A" type for frequency conversion motor speed and frequency converter, the industrial control computer for data processing, color screen real-time display don’t balance phase Angle and value, real-time speed, lathe bed all use whole casting, the stability is good.Widely used in electric motors, blower, diesel engine, auto parts, etc, can be in the single side, double side and multiple correction plane balance measurement, suitable for axle, dish out and center of gravity of the rotor. Have high efficiency, precision accurate, show intuitional, reliable quality, easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function, overcoming the other hard supporting balance machine measurement system to users to calibration equipment of the defect, and a variety of measurement method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man-machine dialogue, automatic hints.
Characteristics(2):
Widely apply for industries like motor, blower, diesel motor, turbocharger,
armature, rotors of paper machinery and textile machinery etc.
Horizontal hard bearing dynamic balancing machine serials
Wheel bearing
Belt drag
Motor and Inverter for speed regulation
Industrial computer to process data
Colored screen display unbalance value, phase angle, and practical rotation speed
Overall cast base, better stability
Balance test as single side, double side, multi side
Apply for shaft, plate, and extended focus rotor
High accuracy, direct, dependable quality, convenient maintenance
Software has two calibration function like usual piece and standard rotor
Parameter input, overview, test, data save, operate and menu
Optional function
1.Angle tracking function
2.Automatically stop when finish balancing workpiece
3.Automatically location function
4.Vector angle analysis function
Technical data :
Model |
Working piece quantity range:kg |
Working piece diameter:mm |
Distance between two supporting:mm |
Shaft diameter range: mm |
Diameter range at the lap belt drag mm |
balancing |
minimum mm |
Unbalance |
Motor |
peed tmen |
HBQ-500a |
10-500 |
Φ1600 |
150-1600 |
Φ20-130 |
Φ120-240 |
300-2500 stepless |
≤0.5 |
≥90 |
4 |
Frequency |

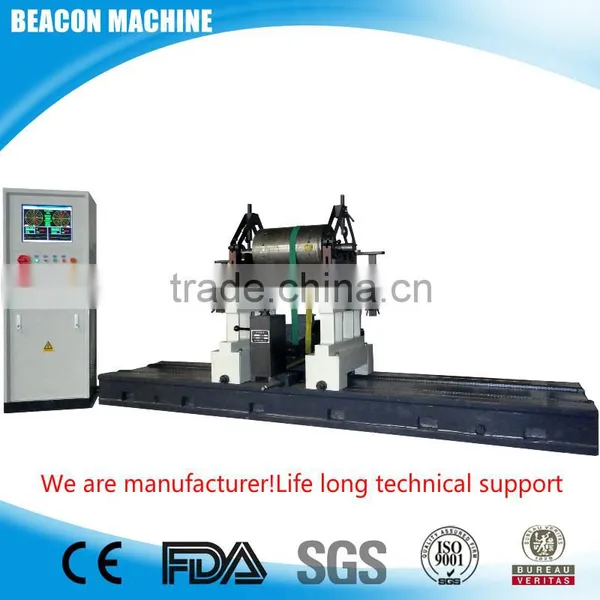

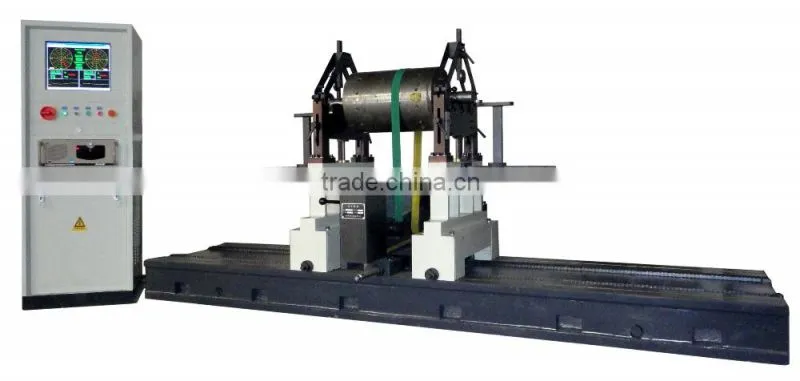

Product photo

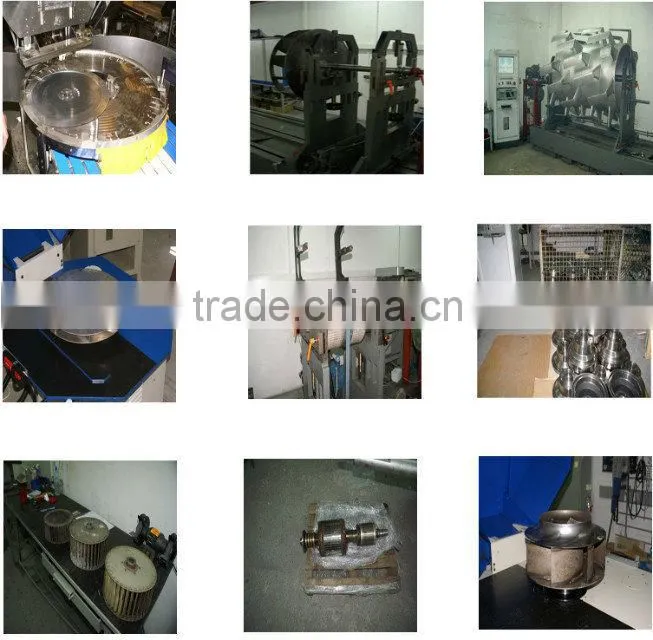

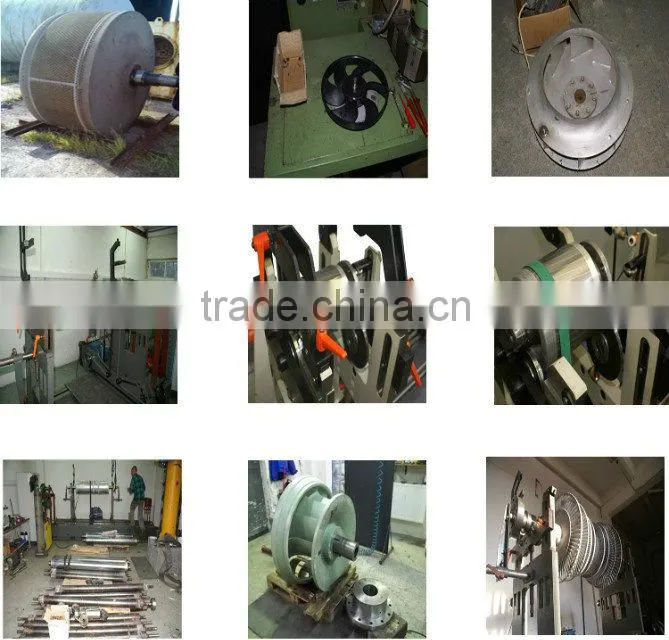

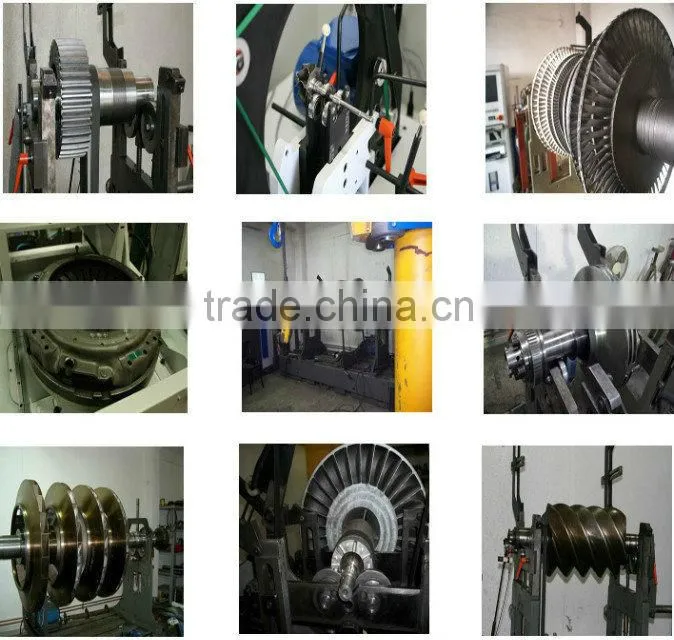

Check the work piece our machine can balance:
Our new appercance :
warehouse corner
workhouse
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the commin rail tools and spare parts also with best quality and most competitive price.
