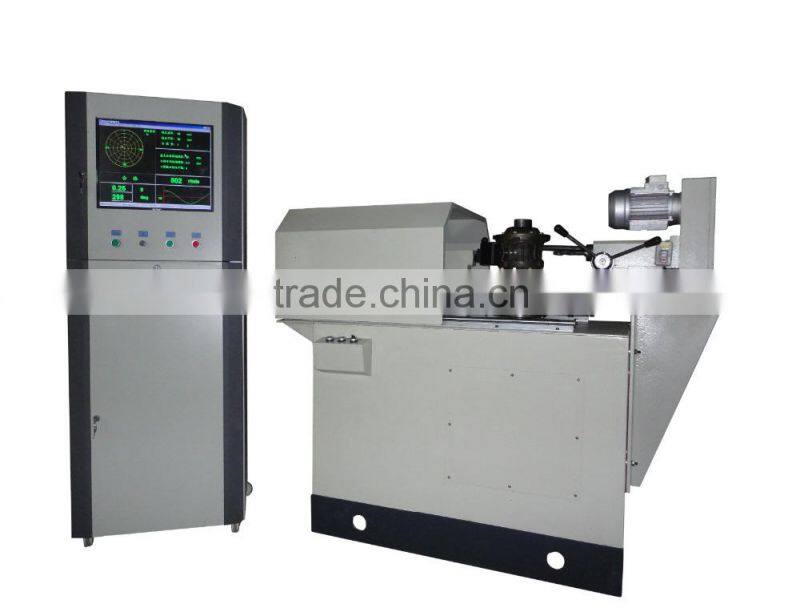

NEW PRODUCT HV-100A single plane vertical plane balancing and drilling machine
YLD-100A drive shaft balancing machine for Mining sawblade
Production Description
• Specially designed,solid brackets can effectively transmit mechanical force
• Durable and reliable sensor possesses high sensitivity and good linearity
• Permanent calibration brings high accuracy

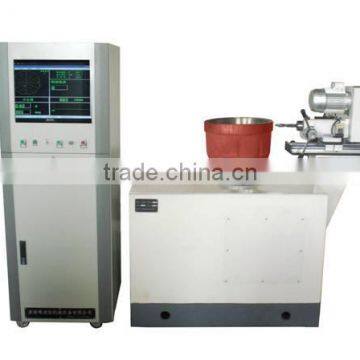

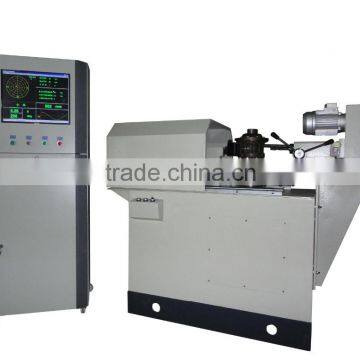

YLD Vertical Balancing Machine
Production Description
• Specially designed,solid brackets can effectively transmit mechanical force
• Durable and reliable sensor possesses high sensitivity and good linearity
• Permanent calibration brings high accuracy

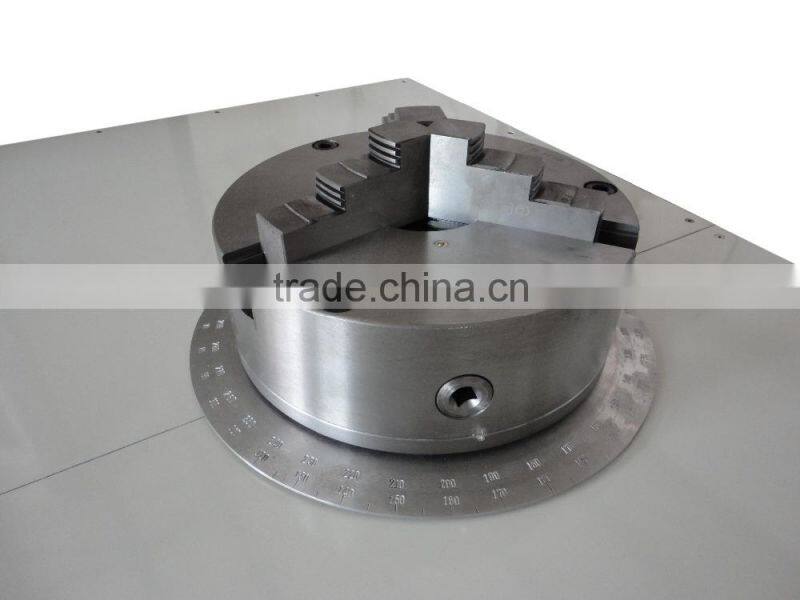

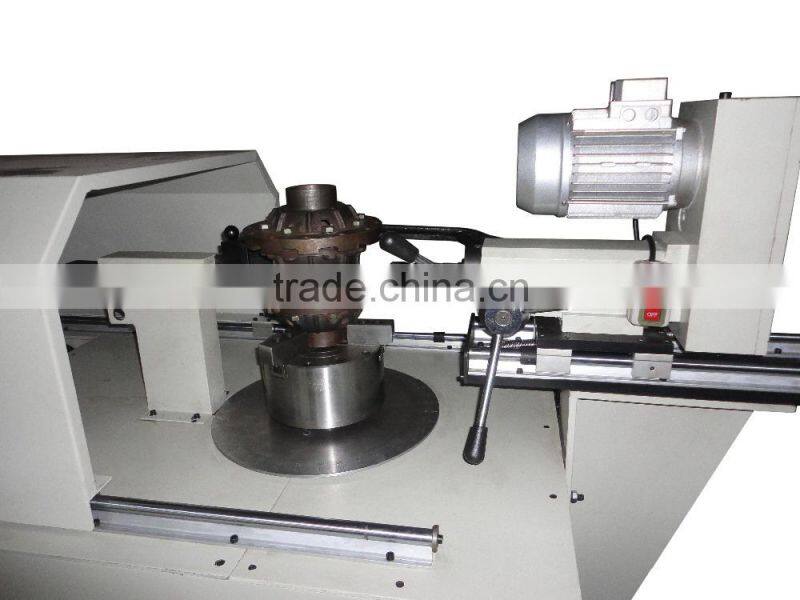

• Special clamp offers higher accuracy and easier operation
• .Advanced electrical measuring system and friendly man-machine interface
• As the customer's request,the de-weighting system can be equiped
Range of Application
The balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan blade, brake disk,brake drum.saw blade.belt pulley,chuck,pump impeller,flywheel,grinding wheel,range hood fan,etc .. High speed and precision are advanages of this balancing machine.
According to user’s requirement,The machine can install de-weight device
Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
Tech list
Type
|
Workpiece weight Kg |
Workpiece diameter mm |
Balancing rotating speed r/min |
Minimum achievable residual unbalance Gmm/kg |
Unbalance reduction Ratio % |
Motor power kw |
Adjusting speed form |
YLD-5 | 0.1-5 | 500 | 900 | ≤ 3 | ≥90 | 0.37 | single speed motor |
YLD-80Q | 5-80 | Φ800 | 250-1500 | ≤3 | ≥90 | 4 | frequency control motor |
YLD-16 | 0.5-16 | 500 | 600/900 | ≤ 3 | ≥90 | 0.65/0.85 | two speed motor |
YLD-16A | 0.5-16 | 500 | 250-1500 | ≤ 3 | ≥90 | 1.1 | frequency control motor |
YLD-42A | 3-42 | 800 | 250-1500 | ≤ 3 | ≥90 | 1.5 | frequency control motor |
YLD-100A | 5-100 | 800 | 250-1500 | ≤ 3 | ≥90 | 4 | frequency control motor |
YLD-200A | 10-200 | 800 | 250-1500 | ≤ 3 | ≥90 | 4 | frequency control motor |
---The package

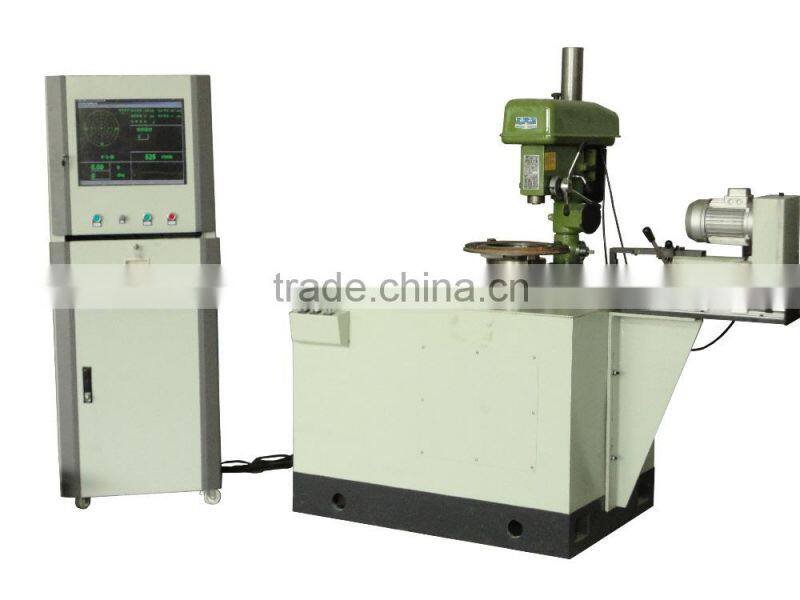

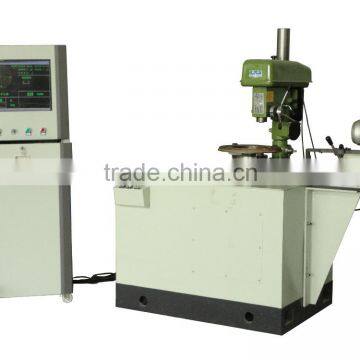

vertical plane balancing and drilling machine more configuration:

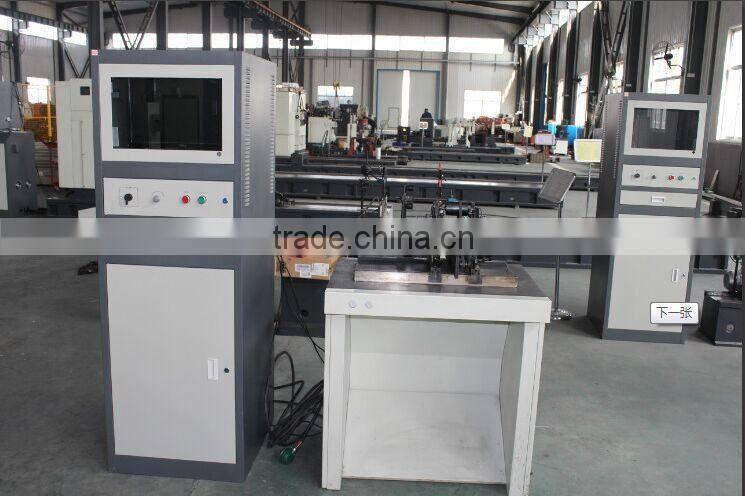

---Our customers and factory
-Our service
welcome you to visit to our factory ,and show you how to operate for free
One year warranty for parts , Lifetime technical support
If you become our old customers , will give you lowest price
