Semi-automatic Vehicle Access Control Hydraulic Roadblocker Machine on Sale
US$ 5,000 - 7,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SST
Model Number:
SST-N5010
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
A3 Carbon Steel Anti Ram Automatic Hydraulic Road BlockerUS$ 5,800 - 7,800MOQ: 1 Set -
China Supplier Ip68 Automatic Hydraulic Road Blocker With Spike for AirportUS$ 5,000 - 7,000MOQ: 1 Set
-
High Quality Traffic Spikes Road BarrierUS$ 2,000 - 3,000MOQ: 1 Piece
-
Hydraulic Electronic Heavy Duty Road Barriercade Parking BlockerUS$ 5,000 - 6,000MOQ: 1 Set
-
Security Anti-terrorism Hydraulic Road Barrier Parking BlockersUS$ 6,000 - 8,500MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
SST
Model Number
SST-N5010
semi-automatic vehicle access control hydraulic roadblocker machine on sale
| 1. Competitive Advantage | ||
|
1) Steady and safe due to the plc control system 2) Speedy and durable due to the use of hydraulic pressure 3) Lower down the bollards by handle valve in case of power failure or fault of automatic system 4) Raise up the bollards by handle pump in case of power failure or fault of automatic system 5) stainless steel is durable 6) Optimization of frame structure, high anti-impact capability, high loading capability 7) Shockproof device to reduce noise. | ||
| 2. Technical Parameter: | ||
| 1 | Power | AC220C/380V |
| 2 | Operating Temperature | -10°C~65°C |
| Waterproof, Dustproof | ||
| 3 | System Power | 1.5KW/2.2KW/3.7KW/5.5kw(heavy-duty) |
| 4 | Up&down time | 3~6 seconds(can be adjustable) |
| 5 | Parts of Blockers | 1,Blocker Body |
| 2,Automatical Control Board | ||
| 3,Hydraulic Pressure Integration | ||
| 6 | Size.of blockers | standard 3m, max 6m |
| Interception length: 2600 standard | ||
| Casing size:3000*1000*760mm | ||
| 7 | Communication Distance | ≤1200M |
| 8 | Thickness size | 16mm ±1mm Optional |
| 9 | Communication Connection | RS485 interface |
| 10 | Material | A3 steel, spray anti-rust paint; |
| 11 | Colour | Various color optional |
| 12 | Applications | Highway Charging,Airport,Gov. |
| Military Area,Banks,Ports&Embassy | ||
| 3.Functions & Features: | ||
|
1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down 2.Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems 3.Compatible with road barrier,Turnstiles and other access system control to achieve automatic control 4.Advanced mature Hydraulic pressure technologies 5.Remote control system realize wireless control up&down within 30 meters range 6.Customized for different users requests 7.Controller display : LCD and LED 8.The HPU will be controlled by a central programmable logic controller (PLC) which will accept inputs from the access control system, blocker monitoring equipment and hydraulic pack and output signals to the HPU control valves, back indication system and external signaling. The PLC controller shall be sized to suit site requirements but should have 16 inputs and 14 outputs as a minimum. 9.Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card 10.PLC control board | ||
| 4.Solution with Hydraulic Rising Bollards | ||
|
| ||

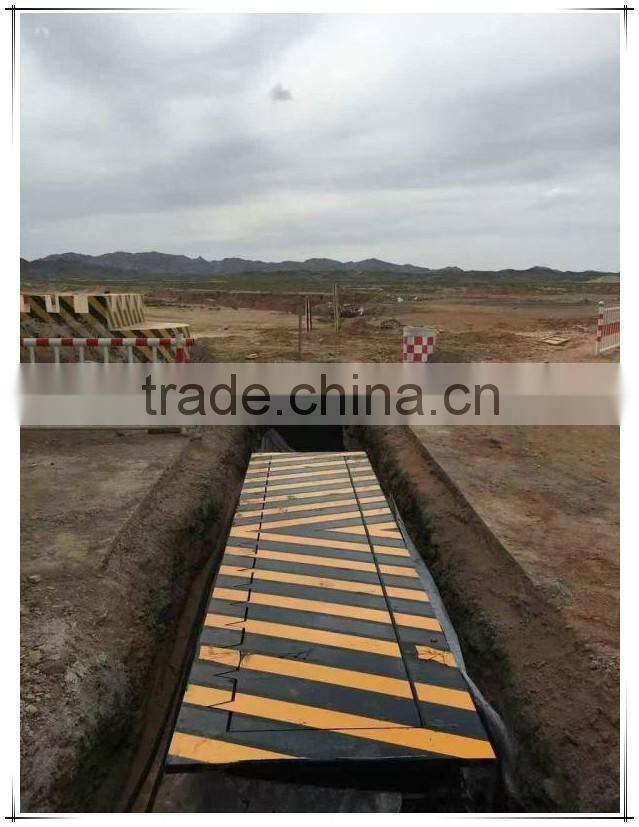

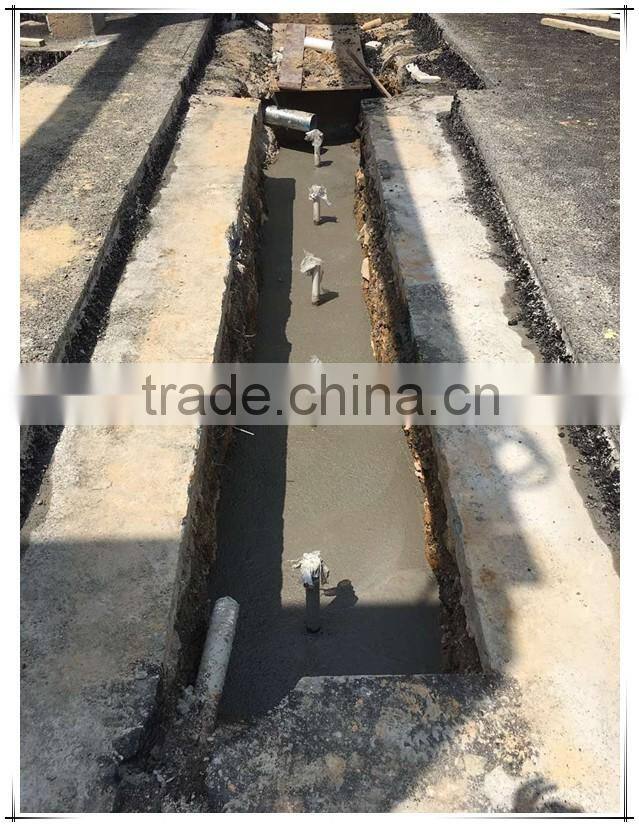

| 5.Installation | ||
|
| ||

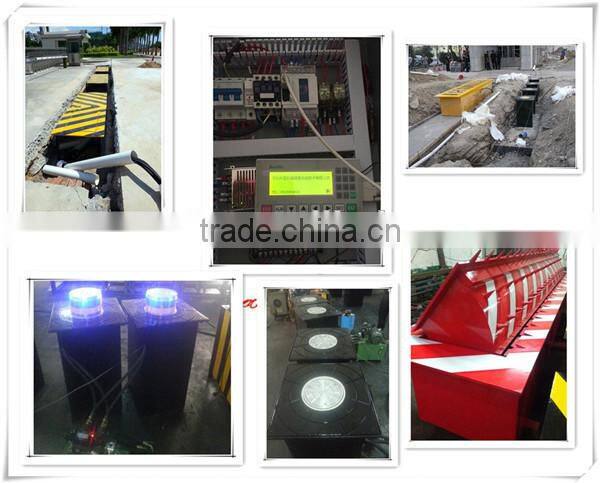

| 6.Details | ||
|
| ||

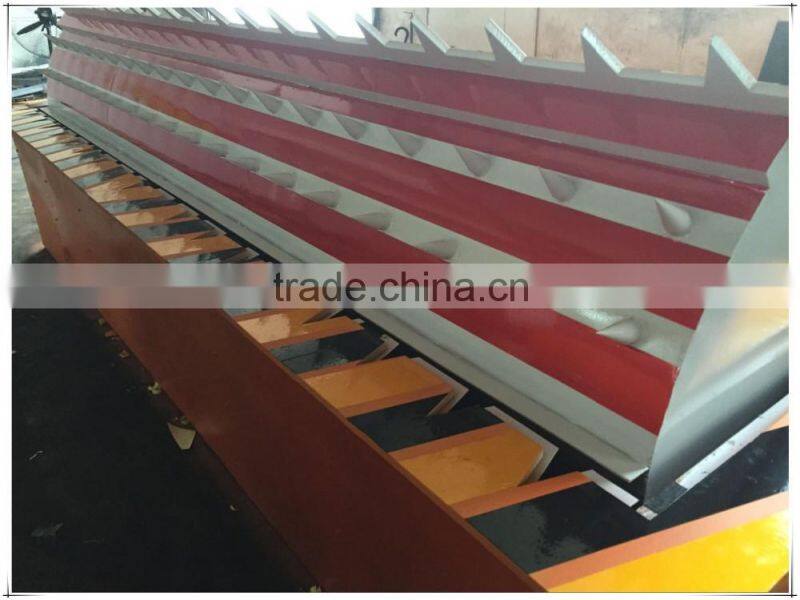

| 7.Product Show | ||
|
| ||

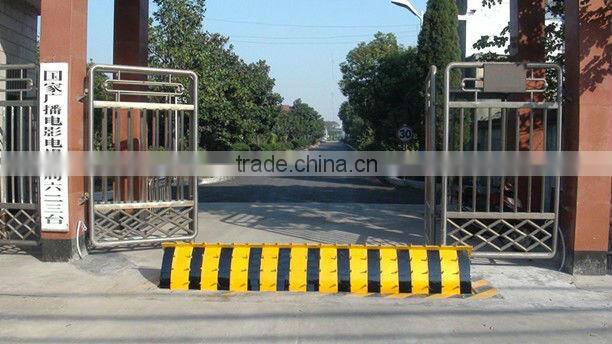

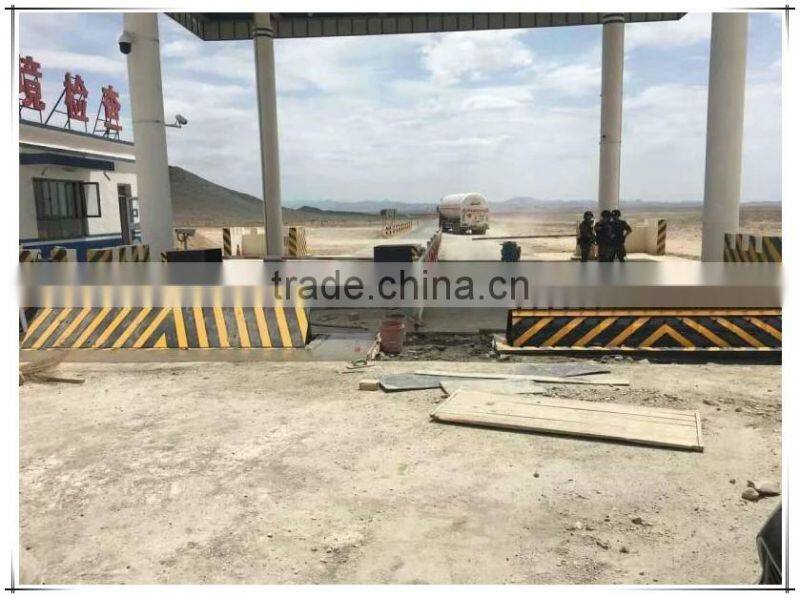

| 8.Application | ||
|
| ||
| 9.Standard package | ||
|
| ||
| 10.Products variety | ||
|
| ||
| 11.Our service | ||
| Customer services oriented. Reply your inquiries within 12 hours. Professional staffs answer any questions . Customized design ,OEM & ODM are available. Distributors or agents in special policies supports | ||
| 12.Our advantage | ||
| 1.One-stop procurement service is available. 2.Quickest delivery and best aftersales service. 3.Veteran technician solves all your problems. 4.Passionate and professional sales makes a wonderful team. 5.Competitive and reasonable price with high quality products and advanced technology. 6.Providing the most professional solution as soon as possible according to your requirements. | ||
