Electric Stainless Steel Road Safety Control Automatic Rising Bollard

Electric Stainless Steel Road Safety Control Automatic Rising Bollard photo-1
US$ 2,300 - 3,300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SST
Model Number:
SST-N6002
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name SST
Model Number SST-N6002
Product Description

Electric stainless steel road safety control Automatic Rising Bollard


Product Application

SST hydraulic rising bollards design intentions is to control road traffic equipments.SST mainly produces automatic hydraulic rising bollards.But bollards series Automatic,semi-automatic and fixed bollards .


Automatic bollards has separated by hydraulic and pneumatic rising types.


Bollards designed for controlling vehicles force entry in sensitive areas.it has highest practicability,reliability and safety .Multi-configuration provided for various customer choices.


SST bollards can be connected with Road barrier,Intelligent charging system and Time attendance systems.To realize perfect access control management systems.

SPECIFICATIONS FOR HYDRAULIC RAISING BOLLARDS
Power
AC380V
Operating temperature
-10℃~65℃, Waterproof, Dustproof
System Power
1.5KW/ 2.2KW/ 3.7KW
Up and down time
3~6 seconds( can be adjustable)
Parts of bollard
1. bollards body; 2. automatical control board; 3. hydraulic pressure integration
Diameter of bollards
168mm/ 219mm/ 273mm
Communication distance
<= 1200m
Thickness size
3~12mm-+1mm optional
communication connection
RS485
Material
SUS304/ 316
Color
Various color optional
Application
subway station, hoverport, tourism sports, exhibition, residence area

Main Features

1.Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
2.Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems
3.Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
4.Advanced Hydraulic pressure technologies
5.Remote control system realize wireless control up&down within 30 meters range
6.Customized for different users requests
7.Manual control hydraulic system devices
8.Swiping card system: built-in card reader to control bollards up&down
9.Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
10.Connected with Computer Management OR Charging Systems

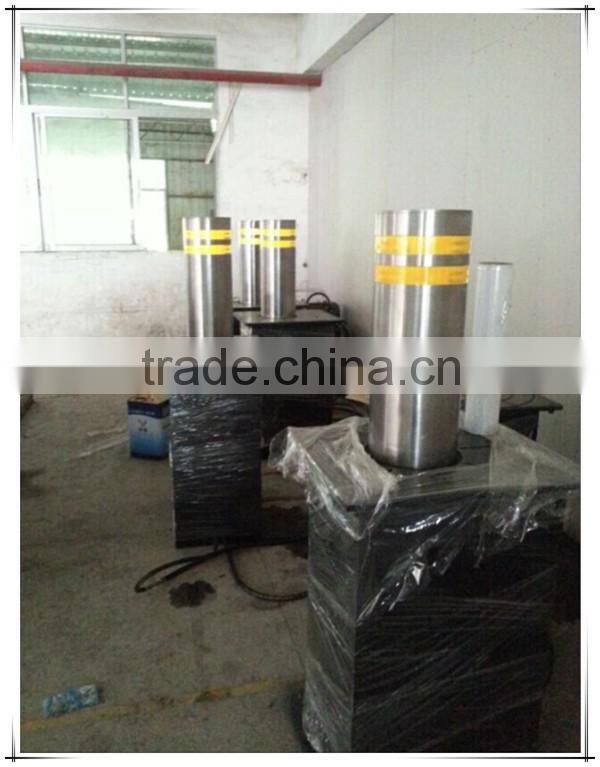

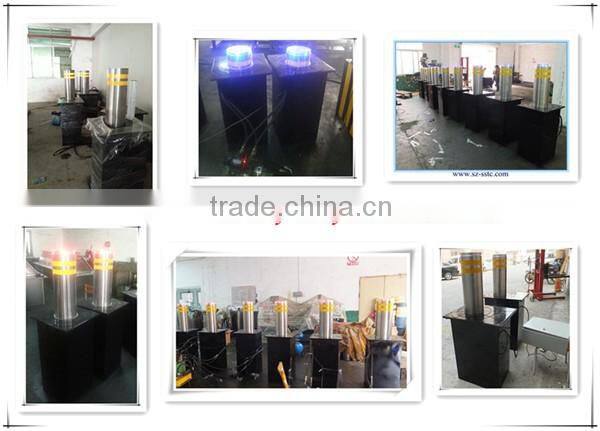

Detailed Images

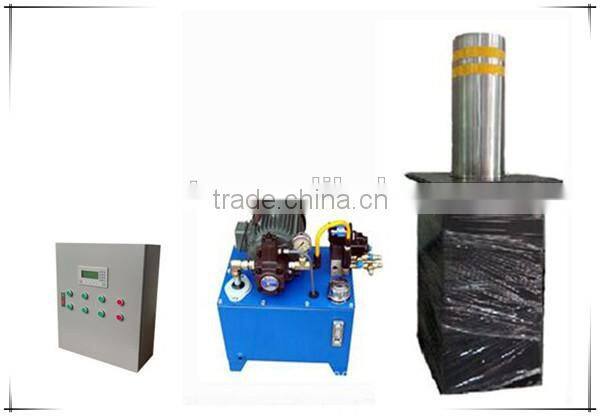

Machine Parts

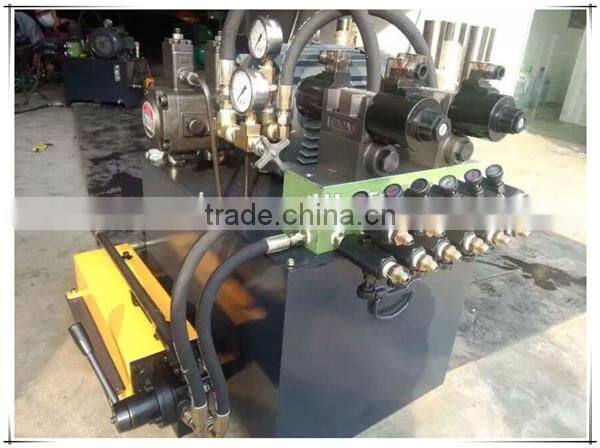

Name: Hydraulic system

Feature: 380V power supply

System dynamic power(w): 3.7 KW /5.5 KW

Machine Parts

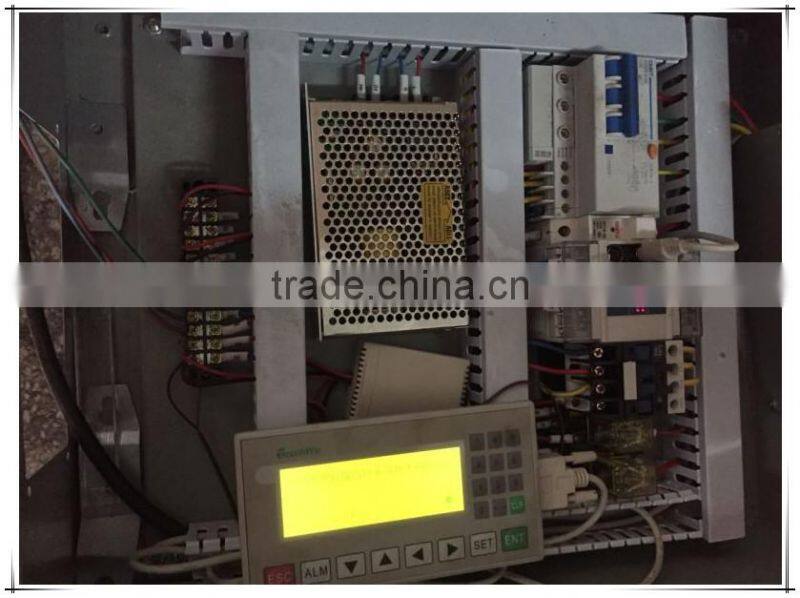

Name: Controller
Feature: PLC American original chip

Professional technicians conduct programming as per customer's requirement.

Machine Parts

Name: remote controller
Feature: Standard equiped with 2pcs for one set.

Machine Parts

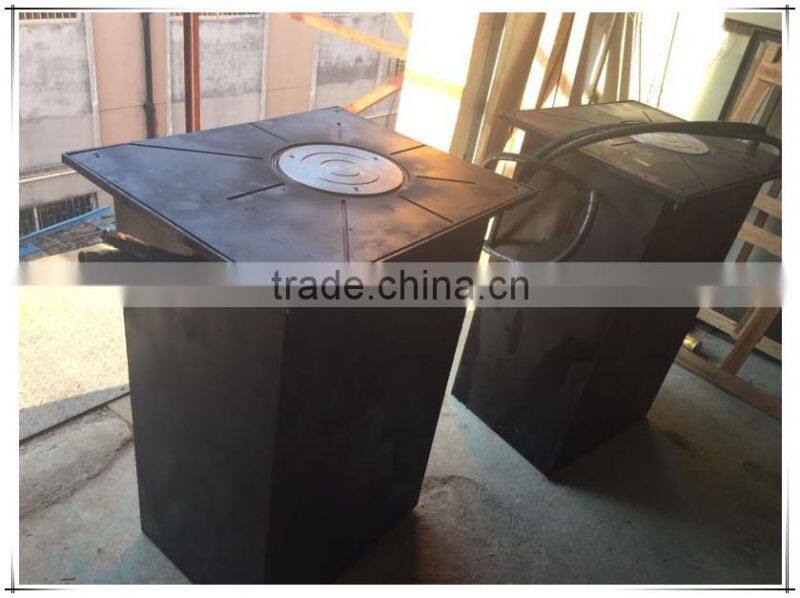

Name: casing
Feature:
 A3 carbon steel,Cylindrical

size : 990mm height, 370mm Diameter.

Our Service

Pre-Sales Service

* Inquiry and consulting support, 7*24h online service.

* Solution designing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

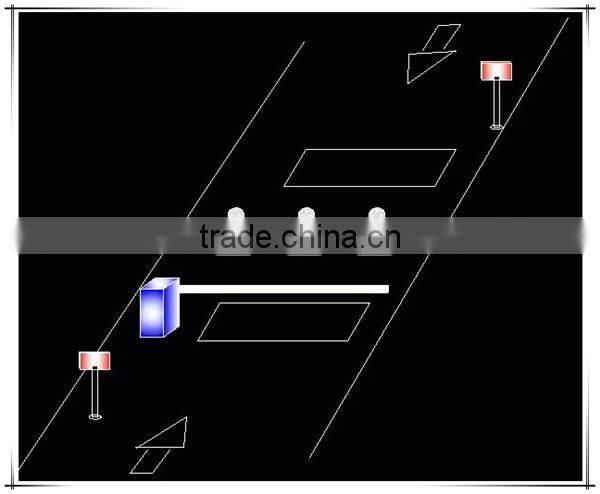

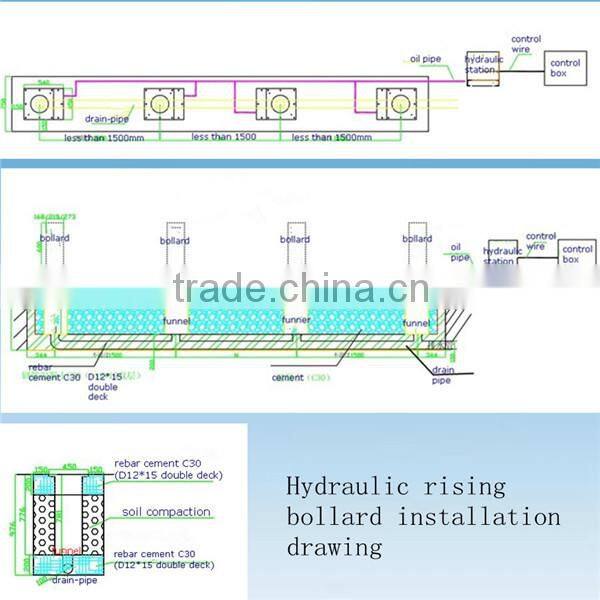

Solution
Packing & Delivery
Packaging
Size
390 (L) * 390 (W) * 1110 (H)
Weight
250 KG

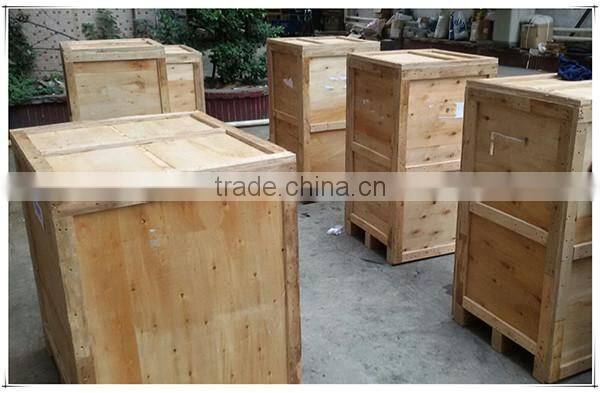

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

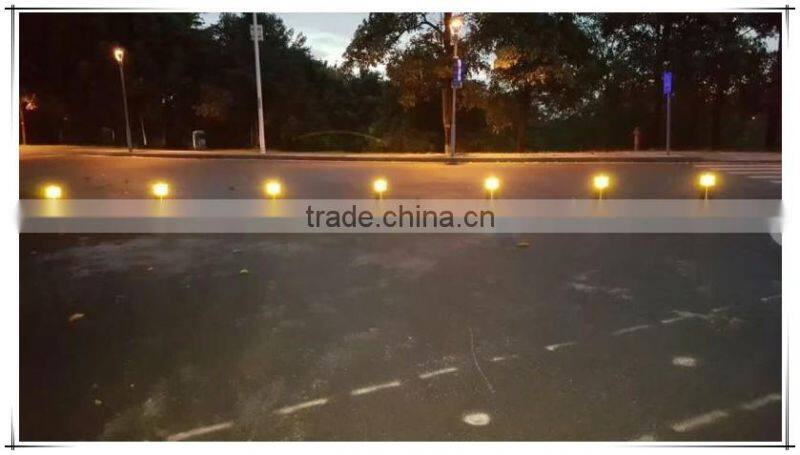

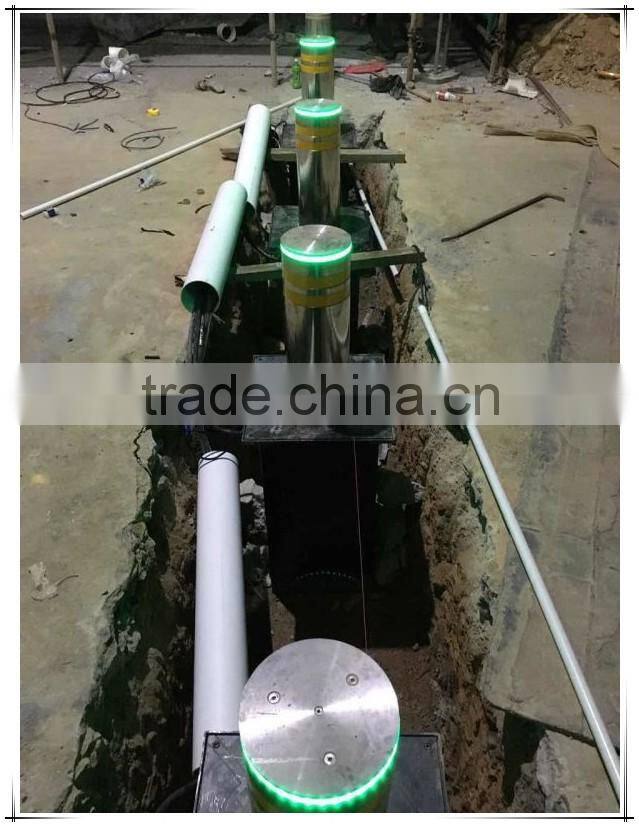

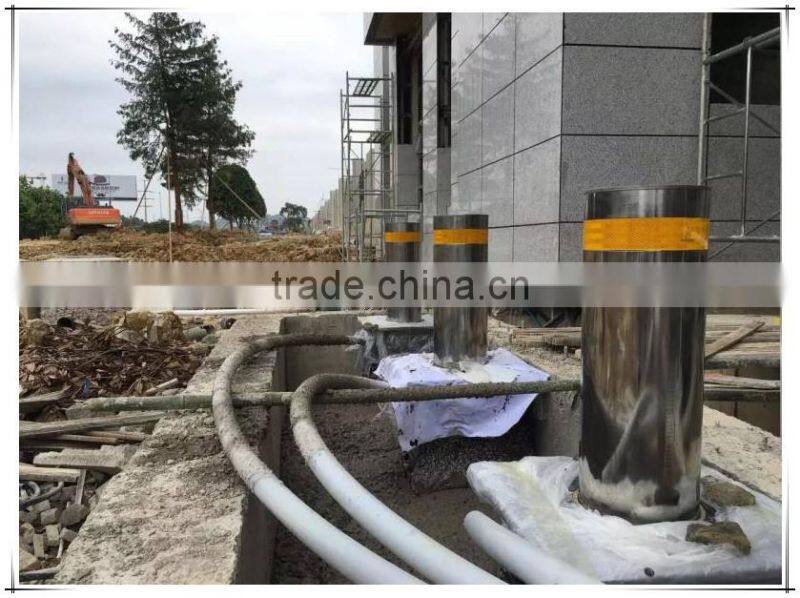

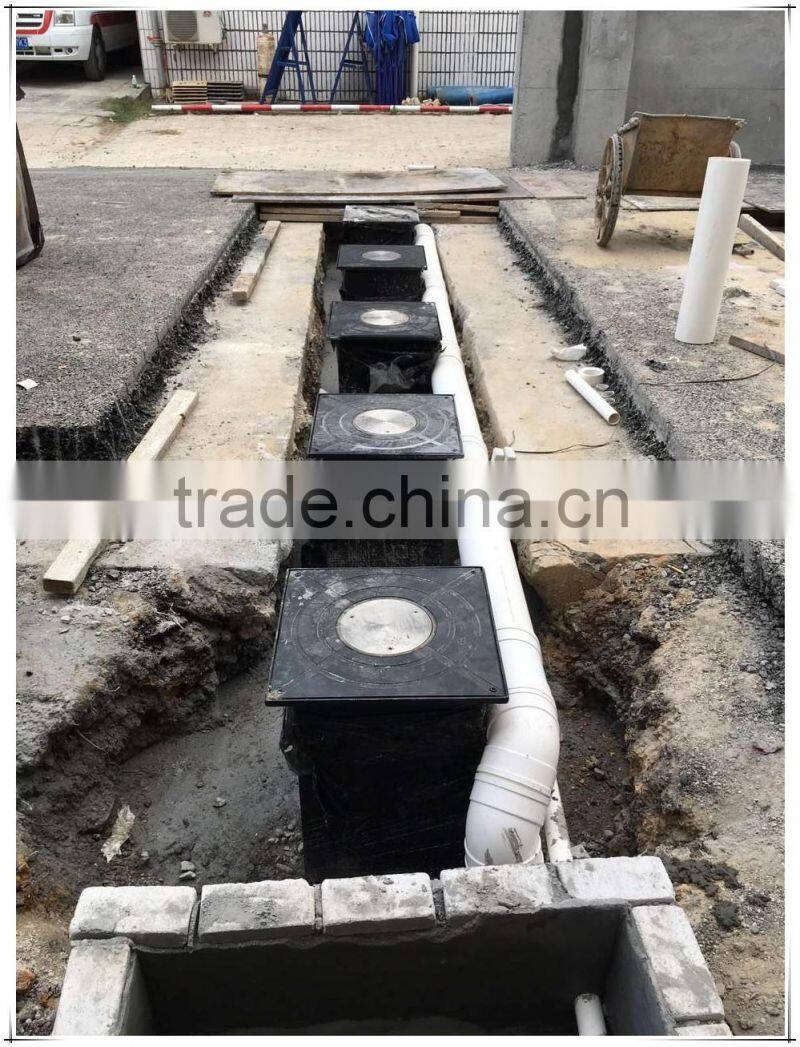

Installation Picture

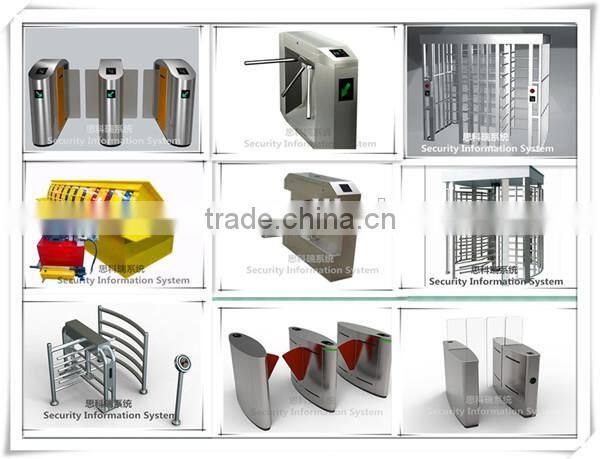

Related Products
