MLC5105E Dynamic Micro Torque Sensor

MLC5105E Dynamic Micro Torque Sensor thumbnail-1
MLC5105E Dynamic Micro Torque Sensor photo-1
US$ 565 - 645 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Manyyear
Model Number:
MLC5105E
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Manyyear
Model Number MLC5105E

MLC5105E Dynamic micro torque sensor

Product Description

Features

Model: MLC5105E

Category: torque sensor

Range: 0~0.1/0.2/0.3/0.5/1/2/3/5Nm

Dimension: D57*85mm

Material: alloy steel

Apllication: Micro dyanmic torque measurement

Characteristics : Micro dyanmic torque sensor

Torque sensor is the precision measuring instruments to measure torque,revolving speed and the power of the mechanical.

Product characteristics

Resistance strain for sensitive components and integrated circuit consisting of integrated products, high precision, stable and reliable performance.

No collecting ring wearing parts, such as long time running at high speed, output and reversing torque signals, are the key connection on both ends,

Highest speed not more than 4000 r/min

application

1,Rotating power equipment such as motor, engine, engine output torque and power of detection;

2,Fan, water pump, gear box, torque wrench, torque and power of detection;

3,Railway locomotive, automobile, tractor, airplane, ship, mining machinery, the torque and power of detection;

4,Can be used in the sewage treatment system in torque and power of detection;

5,Can be used in the manufacture of viscometer;

6,Can be used in the laboratory, test department, in the process industry and process industry production monitoring and quality control;



Technology

SPEC

Range:

0~0.1/0.2/0.3/0.5/1/2/3/5Nm

Response frequency:

100μS

Rated output:

1.0~2.0 mV/V

Insulation resistance:

2000 MΩ/100VDC

Comp. precision

±0.1; ±0.3; ±0.5%F.S

Input resistance:

700±10/350±10Ω

work temp.:

-35~+80℃

Output resistance:

700±5/350±5Ω

Temp. compensation :

20~+60℃

Zero point:

0~±1%F.S

Temp. effect at zero:

±0.1%F.S/10 ℃

Safe overload:

120%F.S

Work voltage:

12 VDC

Water proof:

IP65/66

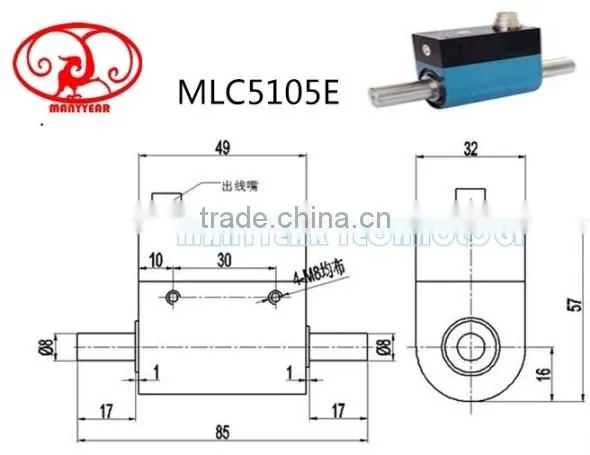

Product Dimension

Product dimension

 MLC5105E Dynamic micro torque sensor

Pressure Connector

 NA

Electric Connector

 NA

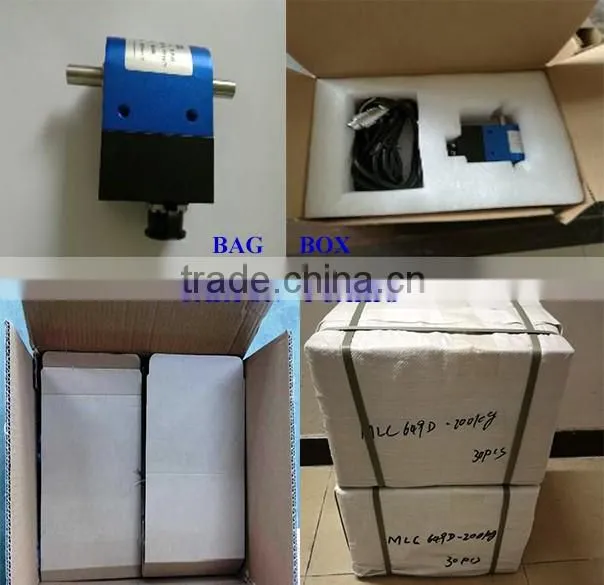

Packaging & Shipping

Product photo

MLC5105E Dynamic micro torque sensor



Packing Reference

MLC5105E Dynamic micro torque sensor



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
