MLC5100B Dynamic torque sensor
|
Features Model: MLC5100B Category: torque sensor Range: 0~200,300,500,1000Nm Dimension: D78*73mm Material: alloy steel Apllication: Dyanmic torque measurement Characteristics : Dyanmic torque sensor torque sensor is the precision measuring instruments to measure torque,revolving speed and the power of the mechanical. Product characteristics 1. The resistance strain sensor and integrated circuit products consisting of an organic whole, through the brush to achieve the power supply and signal output. 2. Low range of torque measurement.Measurable positive direction torque value. 3. Both ends for connection shaft key, easy installation and use. 4. Type A highest speed not more than 500 r/min, maintenance cycle: 15 million turn around. 5. Type B highest speed not more than 300 r/min, maintenance cycle: 10 million turn around. application 1,Rotating power equipment such as motor, engine, engine output torque and power of detection; 2,Fan, water pump, gear box, torque wrench, torque and power of detection; 3,Railway locomotive, automobile, tractor, airplane, ship, mining machinery, the torque and power of detection; 4,Can be used in the sewage treatment system in torque and power of detection; 5,Can be used in the manufacture of viscometer; 6,Can be used in the laboratory, test department, in the process industry and process industry production monitoring and quality control;
| ||||||||||||||||||||||||||||||||
|
Technology
| ||||||||||||||||||||||||||||||||
|

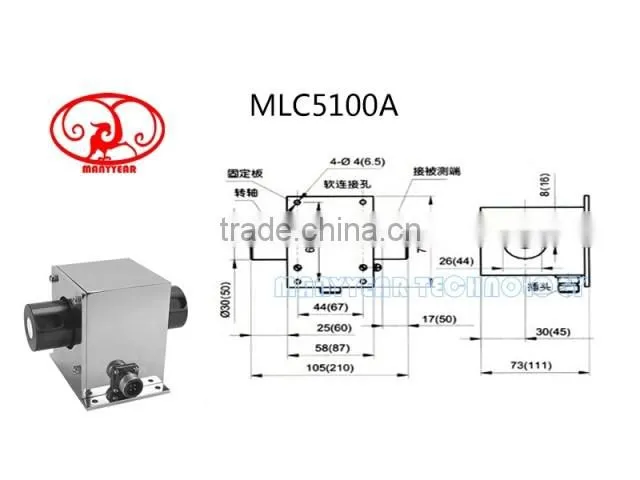

Product dimension |
|
Pressure Connector NA |
|
Electric Connector NA |
|
Product photo
|
|
Packing Reference
|
24Hr for response time.
5-7days for sample time.
15-25days for delivery time.
12 months for quality assurance time.
ODM, OEM support
