MPT221LT Ultra Low Temperature Pressure Sensor

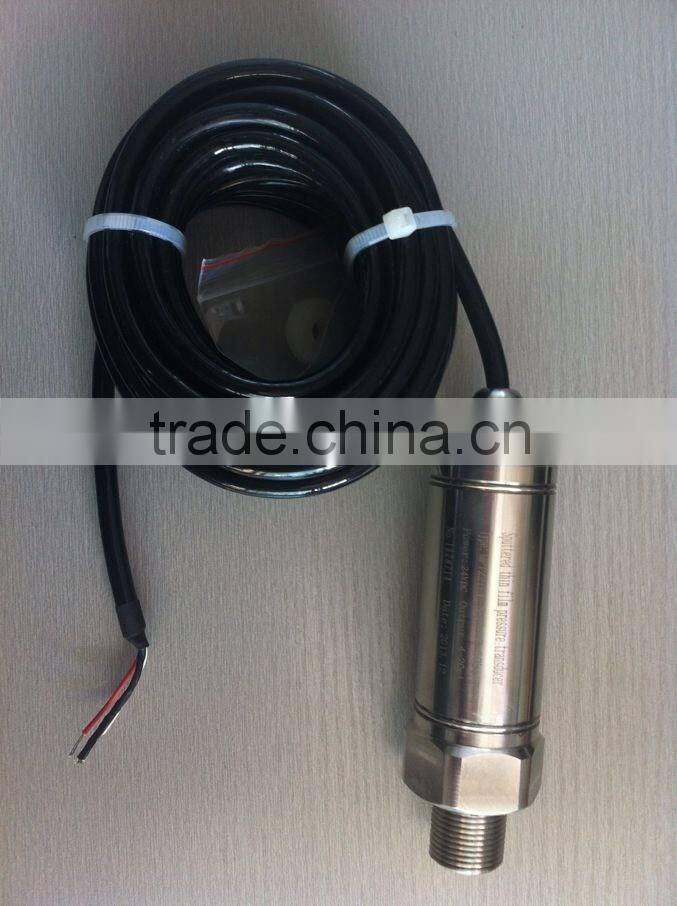

MPT221LT Ultra Low Temperature Pressure Sensor photo-1

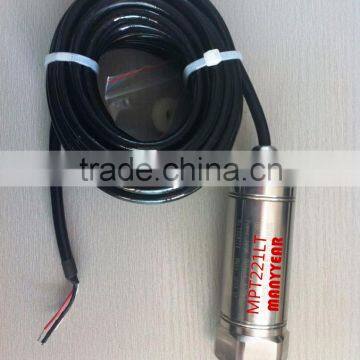

MPT221LT Ultra Low Temperature Pressure Sensor photo-2
US$ 325 - 575 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ManyYear
Model Number:
MPT221LT
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ManyYear
Model Number MPT221LT

MPT221LT:  -196c liquid nitrogen low temperature pressure sensor for liquid nitrogen, liquid oxygen,liquid helium measurement.

Product Description

Features

Model:   MPT221LT

Category:     common pressure sensor

Range:  0-2000bar

temperature: -196℃~+125℃,-260℃/-350c(especial)

signal output:      mv/v, 0-5vdc,4-20mA,Hart,Rs485

Application:  Low temperature pressure measure, liquid oxygen/nitrogen/ hydrogen/helium, Cooling tanks, cryogenic tanks, cryogenic propellants such as pressure measurement

Characteristic:     ultralow temperature pressure sensor, liquid oxygen pressure sensor, liquid oxygen pressure transducer, liquid nitrogen pressure transmitter, liquid hydrogen sensor, liquid helium sensor



Technology

Medium

for 17-4PH ,15-5PH, 316L stainless steel non-corrosive gases and liquids

Pressure type

 absolute pressure, gauge pressure ventilation, sealed reference table pressure

Work voltage

 5-15VDC(10VDC) / 9-36vdc

Signal output

0-5vdc, 0-10vdc, 4-20mA

Zero output

 ±5%FS (typical)

Full load output

 10mV,20mV,100mV option

Non linearly

 0.1%FS,0.2%FS

repeatability

 0.05%FS

Accuracy

normal temperature: 0.1% FS, 0.2% FS, 0.5% FS;  low temperature: 0.5% FS% ~ 3% FS

Work temperature

 -196℃~+125℃,-260℃/-350c(especial)

Thermal zero drift

1 ~ 4% FS (full-temperature zone)

Hot full-scale drift

 1 ~ 4.5% FS (full-temperature zone)

Response frequency

 > 1kHz or> 5kHz optional

Insulation resistance

 ≥ 100MΩ/50V

Safety overload

 150% FS (1.5 times full scale)

Burst Pressure

 300% FS (3 times the full scale)

Vibration

5 ~ 1000Hz, amplitude 2mm, X, Y, Z each to 30 minutes, the output changes less than 0.1% FS

Shock

50g; X, Y, Z three-way, each to 20ms; output variation less than 0.1% FS

Connection

M3, M4, M5, M6, M8, M10, M12 × 1 or a designated

Wetted Materials

15-5PH ,17-4PH, 316L stainless steel

Relative humidity

 95% RH

Protection class

IP65 or IP67 enclosure

Wire

 Air plug and outlet, sealed lead directly


Product Dimension

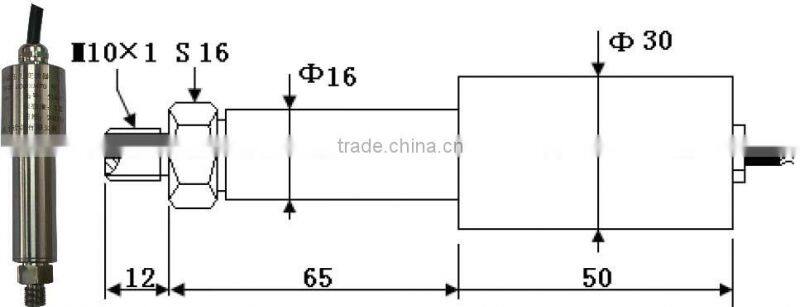

Product dimension

 MPT221LT Ultra low temperature pressure sensor

Pressure Connector

 MPT221LT Ultra low temperature pressure sensor

Electric Connector

 MPT221LT Ultra low temperature pressure sensor

Packaging & Shipping

Product photo

MPT221LT Ultra low temperature pressure sensor



Packing Reference

MPT221LT Ultra low temperature pressure sensor





Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
