Help CenterPiezoelectric Pressure Sensor for High Frequency Dynamic Pressure Measurement
Related Products
-
MPT8112 Exploding Physical Process Dynamic Pressure SensorUS$ 280 - 360MOQ: 1 Piece -
MPT8107 Artillery Gun Pressure Test Piezoelectric SensorUS$ 280 - 780MOQ: 1 Piece
-
MPT8105 Artillery Gun Pressure Test Piezoelectric SensorUS$ 280 - 360MOQ: 1 Piece
-
MPT711 Micro Air and Wind Differential Pressure SensorUS$ 145 - 185MOQ: 5 Pieces
-
MPT301 Automobile Pressure TransmitterUS$ 19 - 25MOQ: 100 Pieces

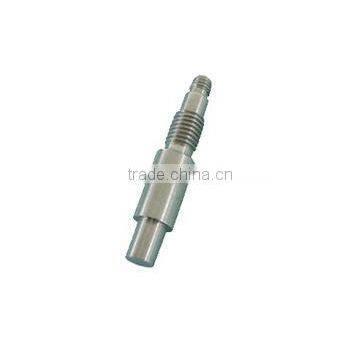

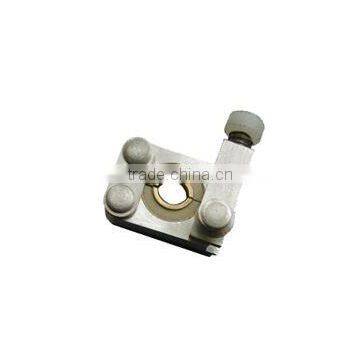

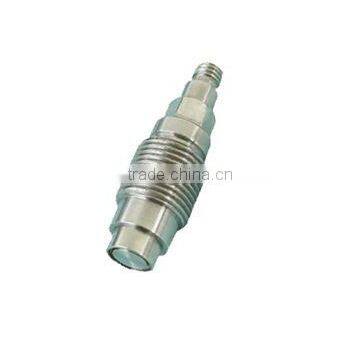

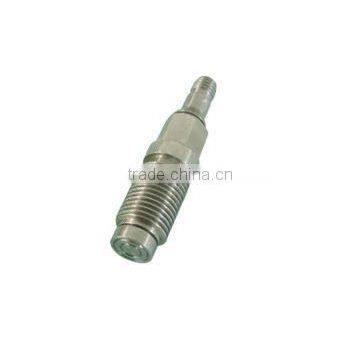

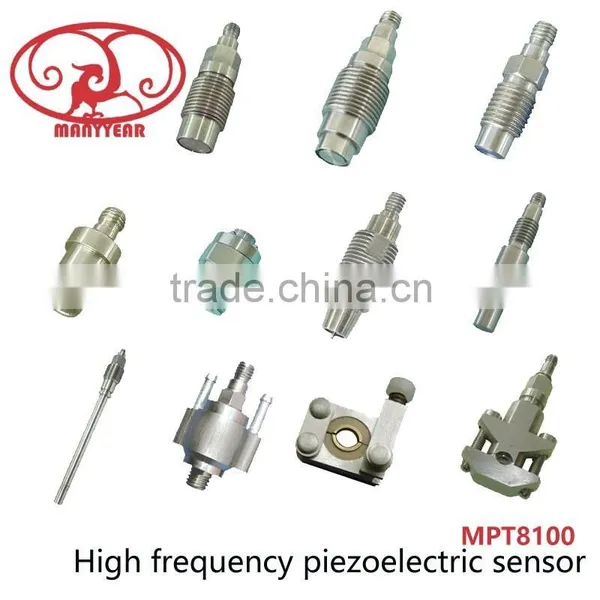

piezoelectric pressure sensor for high frequency dynamic pressure measurement
|
PRODUCT SPECIFICATION Category: piezoelectric pressure sensor Range: 0~5-400-1000MPA Signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485 Pressure type: Dynamic pressure Work temperature:-40c~0~80~125℃~450c | |||||
TECHNOLOGY | |||||
Measuring Range |
5,25MPa |
||||
Overload |
≤150%F.S |
||||
Sensitivity |
~100,60pC/MPa |
||||
Non-Linearity |
≤0.5% |
||||
Natural Frequency |
≥120kHz |
||||
Rise Time |
≤6µs |
||||
Shock Resistance |
≤5000g |
||||
Signal Output |
L5(M5) CONNECTOR |
||||
Diameter of Probe |
Φ10mm |
||||
Mounting |
M12×1 |
||||
Operating Temperature |
-25℃~120℃ |
||||
Characteristics and Application |
Measurement of explosive pressure and hydraulic pressure |
||||
|
PRODUCT APPLICATION Physical explosion (a gun, explosion chamber, etc.), engine cylinder pressure blasting vibration monitoring, etc
| |||||
PIC | |||||
PRODUCT INDEX | |||||
No |
model |
name |
range |
application |
|
1 |
MPT8101 |
High temperature and high pressure pulse piezoelectric pressure sensor |
5~400MPa |
Pulse high temperature and high pressure test |
|
2 |
MPT8102 |
The engine line pressure piezoelectric pressure sensor |
5~200MPa |
Diesel engines, aircraft engines and other pipeline pressure test |
|
3 |
MPT8103 |
Line pressure piezoelectric pressure sensor |
25,60,250 MPa |
engine, inlet, combustion chamber, the exhaust pipe of the dynamic stress test |
|
4 |
MPT8104 |
Engine oil pressure piezoelectric pressure sensor |
5~100MPa |
direct measurement of engine fuel injection pressure |
|
5 |
MPT8105 |
Fire the gun pressure piezoelectric pressure sensor |
600,800,1000MPa |
Fire the gun pressure etc. |
|
6 |
MPT8106 |
Physical explosion piezoelectric pressure sensor |
60,100MPa |
Physical explosion (a gun, explosion chamber, etc.), engine cylinder pressure blasting vibration monitoring, etc |
|
7 |
MPT8107 |
High pressure dynamic piezoelectric pressure sensor |
2GPa |
High pressure dynamic stress test |
|
8 |
MPT8108 |
Hydraulic piezoelectric pressure sensor |
5,25MPa |
Explosion pressure, hydraulic pressure measurement |
|
9 |
MPT8109 |
Universal high frequency dynamic pressure |
250,400MPa |
High frequency dynamic pressure measurement, universal |
|
10 |
MPT8110 |
Universal high frequency dynamic pressure |
400, 600,800MPa |
High frequency dynamic pressure measurement, universal |
|
11 |
MPT8111 |
The bad environment piezoelectric pressure sensor |
100,250MPa |
Environment is bad for measuring pressure of gas or liquid |
|
12 |
MPT8112 |
Explosion pressure piezoelectric pressure sensor |
100,250,400MPa |
Explosion pressure, hydraulic pressure measurement |
|
13 |
MPT8113 |
High frequency dynamic piezoelectric pressure sensor |
100,250,400MPa |
High frequency dynamic pressure measurement |
|
14 |
MPT8114 |
High frequency dynamic piezoelectric pressure sensor |
100,250,400MPa |
High frequency dynamic pressure measurement |
|
15 |
MPT8115 |
Medium and low frequency dynamic piezoelectric pressure sensor |
100,1000KPa |
Medium and low frequency dynamic pressure measurement |
|
16 |
MPT8116 |
Shock wave piezoelectric pressure sensor |
100,250KPa |
Short wave, long sound waves and shock waves, the projectile shock wave high-frequency pressure measurement, etc |
|
17 |
MPT8117 |
High frequency dynamic piezoelectric pressure sensor |
25,60,100MPa |
High frequency dynamic pressure measurement, universal |
|
18 |
MPT8118 |
High frequency dynamic piezoelectric pressure sensor |
25,60,100MPa |
High frequency dynamic pressure measurement |
|
19 |
MPT8119 |
High frequency dynamic piezoelectric pressure sensor |
25,60,100MPa |
High frequency dynamic pressure measuremen |
|
20 |
MPT8120 |
25,60MPa |
The bad environment piezoelectric pressure sensor |
||
21 |
MPT8121 |
Piezoelectric pressure sensor |
25,60,250MPa |
Physical explosion (a gun, explosion chamber, etc.), engine cylinder pressure blasting vibration monitoring, etc |
|
22 |
MPT8122 |
Physical explosion piezoelectric pressure senso |
25,60,250 MPa |
Explosion pressure, hydraulic pressure measurement |
|
23 |
MPT8123 |
General high frequency dynamic piezoelectric pressure sensor |
5,25,60MPa |
High frequency dynamic pressure measurement, universal |
|
24 |
MPT8124 |
General high frequency dynamic piezoelectric pressure sens |
5,25,60MPa |
High frequency dynamic pressure measurement, universal |
|
25 |
MPT8136ICP |
Shock wave pressure sensor |
250kPa |
Need not equipped with a charge amplifier, directly connected to the high-speed data acquisition instrument.. |
|
|
Environment-protected polybag + Color box + carton box+ damp proof packing Ocean Freight, Air freight, DHL, FEDEX, TNT,SF, EMS… |
|
Pic |
Our Service
24Hr for response time.
5-7days for sample time.
15-25days for delivery time.
12 months for quality assurance time.
ODM, OEM support
|

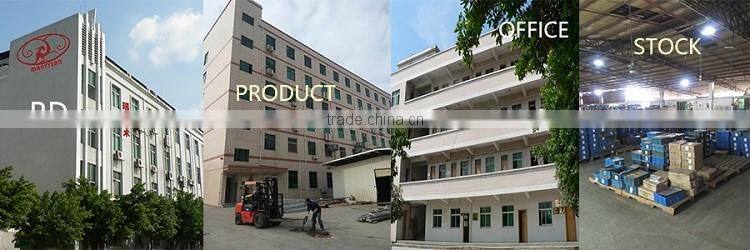

Our Factory Provide Design, manufacture, sales, server of load cell since 1998. 20,000 square meter industrial park 1000+ worker. |
|
Pic |
|
Our Intelligence ISO, OIML, ROHS, CE. |
|
Pic
|
|

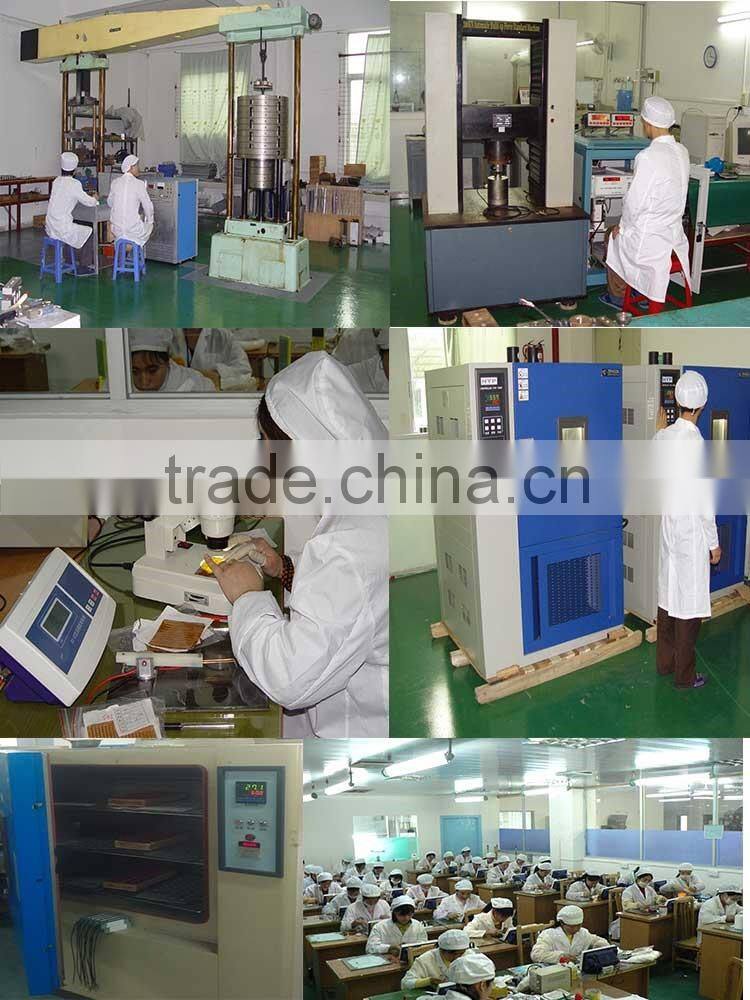

Our Equipment 800t hydraulic machince. 0.001g to 20t Weihing machince. Truck scale test station. CNC machince. Life test chamber |
|
Pic |
