BC-D2 Turbo Dynamic Balancing Machine with computer from BEACON MACHINE

Name: BC-D2 Turbo Dynamic Balancing Machine with computer from BEACON MACHINE
Brand: BEACON
Availability: InStock

FOB Price

USD $3,000 - $3,500 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product Description

>>>INTRODUCTION

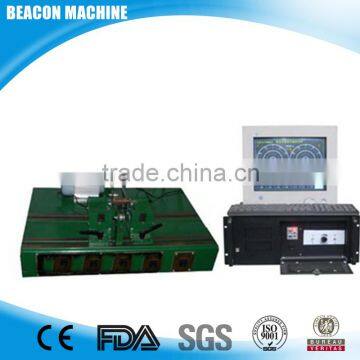

BC-D2 Turbo Dynamic Balancing Machine with computer is an intelligent balancing measuring instrument.

The core is a microcomputer , and Using a Win XPsystem, and dynamic balance

measured with a dedicated software and hardware, you can connect the printer

print balancing measurement charts,And can automatically calculate and set the

dynamic balance of the eligibility criteria, to achieve a balance in the color displays automatically when required, is straightforward and accurate.

>>>TECHNICAL PARAMETER

Number of emendation sides	one side(static balancing), two sides(dynamic balancing)
Number of measuring points	2 vibration signals, 1 phase/rotate speed signals
Combined with mechanical system	Unbalancing reduce rate URR: ≥95%
Minimum achievable residual unbalancing value	0.1~0.3μm,0.1g mm/kg
Dynamic bound	78db
Balancing rotate speed	120--10000rpm
Extent precision	1%
Phase precision	1°
Size	180(High)×445(Width)×480(Depth) mm
Weight	39kg
Power supply	AC180--260V 50Hz
Temperature	-20--40°C
