Intelligent car parking lot automatic parking gate barrier
Technical Data:
1. Beam length: <=6m
2. Opening (Closing) time:3-5s
3. Center height: 0.83m
4. Machine core working temperature: -40 degrees to +75 degrees
5. Electric working temperature: -40 degrees to +75 degrees
6.Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
7.Rated power: 120W
8.Relative humidity: <=90%
9.Remote control distance: <=30m
10.Net weight: (arm not included)75KGS
11.Protection grade: IP54

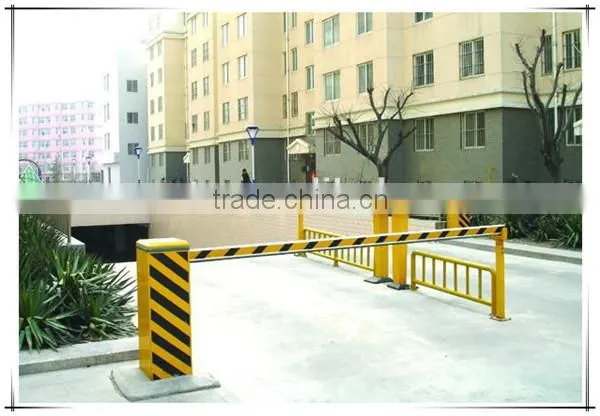

Specification of our 3 types of boom gate
dimension |
360W*300L*1030H(mm) |
360W*300L*1030H(mm) |
360W*300L*1030H(mm) |
Weight |
65KG |
80KG |
70KG |
Motor power |
100W |
100W |
100W |
voltage |
AC220V±10% 50Hz |
AC220V±10% 50Hz |
AC220V±10% 50Hz |
working temperature |
--40°C~+75°C |
--40°C~+75°C |
--40°C~+75°C |
relative humidity |
≤95% coagulation free |
≤95% coagulation free |
≤95% coagulation free |
Remote control distance |
<=30m |
<=30m |
<=30m |
Arm direction optional: |
leftward/rightward |
leftward/rightward |
leftward/rightward |
Max beam length |
<=6m |
<=4.5 |
<=4.5m |
Noise |
60dB |
≤60dB≤60dB |
≤60dB |
motor speed |
30r/mi sn |
30r/min |
30r/min |
Operating principle |
Worm gear |
Worm gear |
Worm gear |
beam |
Straight beam |
2 fence beam |
90°foldable beam |
Beam lifting time |
3s/6s |
6s |
6s |
MCBF |
≥5,000,000 times |
≥5,000,000 times |
≥5,000,000 times |
Working environments |
indoor,outdoor |
indoor,outdoor |
indoor,outdoor |
(1) Running stable without noise and mechanical impact
(2) The passers number can be set by management dept.
(3) Several working molds optional
(4) Bidirection, or unidirection. one forbidden, or one direction charged/ one for free pass, and all the working molds set in the main control board.
(5) Arm's up&down can be remote in long-distance when in fire happened.
(6) Indicator display guide passer in & out.
(7) The standard interface compatible with various readers and writer equipments
(8)Computer intelligent control turnstiles
(9)LED counter display passers total number .Manager can set numbers to 0.
(10) Card-reading memory cab be set by users
(11) Self-check and alarm
Anti-collision protects boom arm (optional)
Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once boom arm was collided by a vehicle.
Safety--- Anti-hit by pressure resistance bounce
While moving down,arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.
Safety--- Anti-hit by Loop Detector (Optional)
While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.
Safety--- Anti-hit by IR photocell (Optional)
While arm moving down, If infrared transportation between transmitter and receiver is blocked by human or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.
Safety--- Anti-hit by “Opening Priority”
If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm.
Closing Priority
While arm moving up, the arm will immediately go down once a close command is given
Automatically close after the given time
Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds adjustable) if there is no vehicle passed after barrier open.
Automatically Close by loop detector (Optional)
If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered
Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered
Manually control in case of no power
Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.
Boom to open up fully or close down in case of power failure
If power is suddenly off while boom closing, boom will automatically close down fully if the angle between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening, boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees.
Transparent plastic covers on Control Board
A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operator.
Packing:
About us:
Intelligent car parking lot automatic parking gate barrier
1.How long about the delivery time?
a. For turnstiles and gate arm barriers,it will take 5 days(less than 50pcs).For parking system and hydraulic road blocker and bollards, it will take about 10days. it depends on the order quantities.
2.What is the MOQ?
b. one set.
3.How about the payment?
c. T/T to be prepaid,the balance will be paid after finished.
4.How about your after-service?
d. We’ll send you the component for free to replace the damaged one during the warranty period.
5.Could you give advice if offer the entry size?
e. Sure,we will offer you the best solution .
6.I don't know how to assembly the goods,could you help me?
f. Don't worry,we have detailed construction diagram and wiring diagram which help to finish it.
