Bridge Load Cell, Floor Scale Load Cell

Bridge Load Cell, Floor Scale Load Cell thumbnail-1
Bridge Load Cell, Floor Scale Load Cell thumbnail-2
Bridge Load Cell, Floor Scale Load Cell photo-1
Bridge Load Cell, Floor Scale Load Cell photo-2
US$ 100 - 400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ManyYear
Model Number:
MLC131
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ManyYear
Model Number MLC131
Type Other, floor scale
Power Supply NA
Display Type NA
Rated Load 50T
Accuracy NA
Product Description
bridge load cell, floor scale load cell

Features

Model:MLC131

Category:Bridge Load Cell

Range:2.5t, 5t, 7.5t, 10t, 15t, 30t, 50t

Dimension:210*64*51/292*76*51/368*99*74mm

Material:Alloy steel,stainless steel

Application:truck scale, railway scale, warehouse scale, floor scale

Characteristic:Bridge load cell,railway scale sensor

Technology

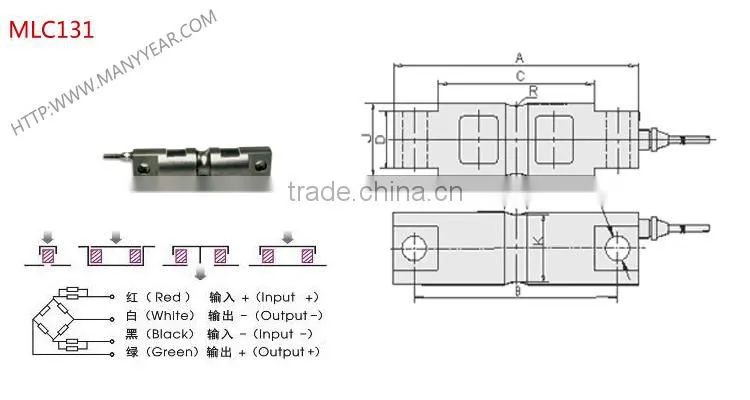

                                                                          other dimension

Load(klb)

A

B

C

D

E

R

J

H

5~10

206.2mm

174.7mm

133.2mm

28.4mm

15.7mm

R12.7mm

43.2mm

16.8mm

15~20

206.2mm

174.7mm

133.2mm

28.4mm

21.3mm

R12.7mm

49.5mm

16.8mm

30~60

206.4mm

215.9mm

165mm

60.2mm

25.4mm

R25.4mm

76.2mm

27mm

                                                                        Specification

comprehensive error:

0.2%FS

output resistance:

700±10Ω

Rated output:

3±0.03mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.017%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.02%FS

compensated temp:

-10~+40℃

Repeatability:

0.01%FS

use temperature:

-20~+65℃

Creep:

0.02%FS/10MIN

temp effect on zero:

0.02%FS/10℃

Zero balance:

±1%FS

Temp effect on span:

0.014%FS/10℃

Input resistance:

700±10Ω

defend grade:

IP66 & IP68
Application

 bridge load cell, floor scale load cell

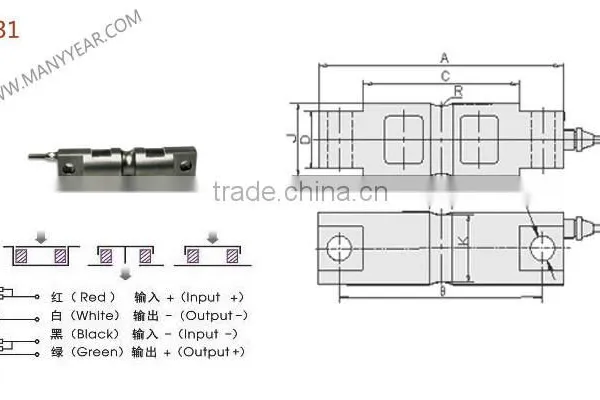

Product Dimension
bridge load cell, floor scale load cell

Force type

bridge load cell, floor scale load cell

Packaging & Shipping

Product photo

bridge load cell, floor scale load cell



Packing picture

bridge load cell, floor scale load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
