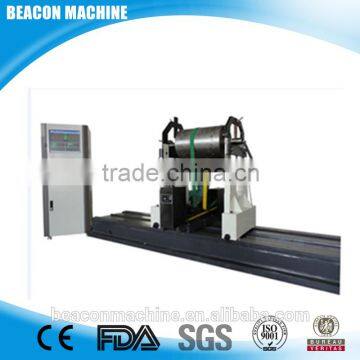

high quality popular YYQ-1000A soft bearing crankshaft propeller balancing machine
Belt Drive Balancing Machine YYQ Series YYQ-1000A
Widely used in electric motors, fan/blower, diesel engine, farm machine, textile machiner, printing machine, paper-making machine, water pump, automoible etc
Belt Drive Balancing Machine Warranty period:
Life-time warranty. Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment. After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc
Belt Drive Balancing Machine Optional function
1, Balance Angle automatic tracking function
2, Parking automatic positioning function
3, Vector Angle function decomposition
Belt Drive Balancing Machine Lathe bed according to user requirements lengthen
MODEL | Max. mass of workpiece (kg) | Max.diameter of workpiece (mm) | Distance between two bearing suppo (mm) | Max.rotor Diameter (mm) | Balanncing speed min (r/mm) | min.achievableresidual un balance(g.mm/kg): | unbvalance reduction ratio(%): | Drive power (kw) |
RYQ-3 | 0.01-3 | φ350 | 30-450 | φ3-22 | 400-10000 | ≤0.5 | ≥90 | 0.09 |
RYQ-10 | 0.1-10 | φ500 | 30-600 | φ5-60 | 400-10000 | ≤0.5 | ≥90 | 0.18 |
YYQ-5 | 0.1-5 | φ400 | 50-600 | φ3-40 | 400-5000 | ≤0.5 | ≥90 | 0.09 |
YYQ-16 | 0.3-16 | φ500 | 60-600 | φ5-40 | 400-5000 | ≤0.5 | ≥90 | 0.18 |
YYQ-50(A) | 1-50 | φ900 | 60-800 | φ8-70 | 300-5000 (ANeutralspeed regulating) | ≤0.5 | ≥90 | 0.75(A:0.75) |
YYQ-100(A) | 2-100 | φ900 | 80-1000 | φ10-140 | 300-5000 (ANeutral speed regulating | ≤0.5 | ≥90 | 0.85/1.1(A:1.5) |
YYQ-160(A) | 2-160 | φ950 | 100-1400 | φ10-180 | 300-2500 (ANeutral speed regulating | ≤0.5 | ≥90 | 0.85/1.1(A:1.5) |
YYQ-300A | 5-300 | φ1200
| 150-1500 | φ20-180
| 300-2500 Neutral speed regulating | ≤0.5 | ≥90 | 4.0 |
YYQ-500A | 10-500 | φ1500
| 150-1500 | φ20-240
| 180-2500 Neutral speed regulating | ≤0.5 | ≥90 | 4.0 |
YYQ-1000A | 10-1000 | φ1500
| 150-2600 | φ20-240 | 180-2500 Neutral speed regulating | ≤0.5 | ≥90 | 5.5 |
YYQ-1600A | 30-1600 | φ1800 | 150-2600 | φ20-240 | 180-2500 Neutral speed regulating | ≤0.5 | ≥90 | 7.5 |
YYQ-3000A | 100-3000 | φ2000
| 150-2600 | φ15-300
| 180-2500 Neutral speed regulating | ≤0.5 | ≥90 | 11 |

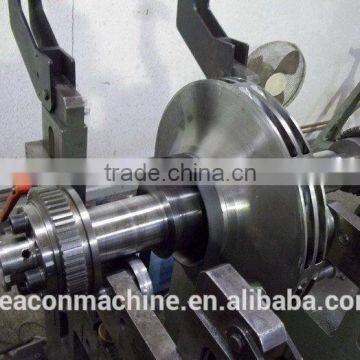

>>> for the workpieces
Our new appercance :

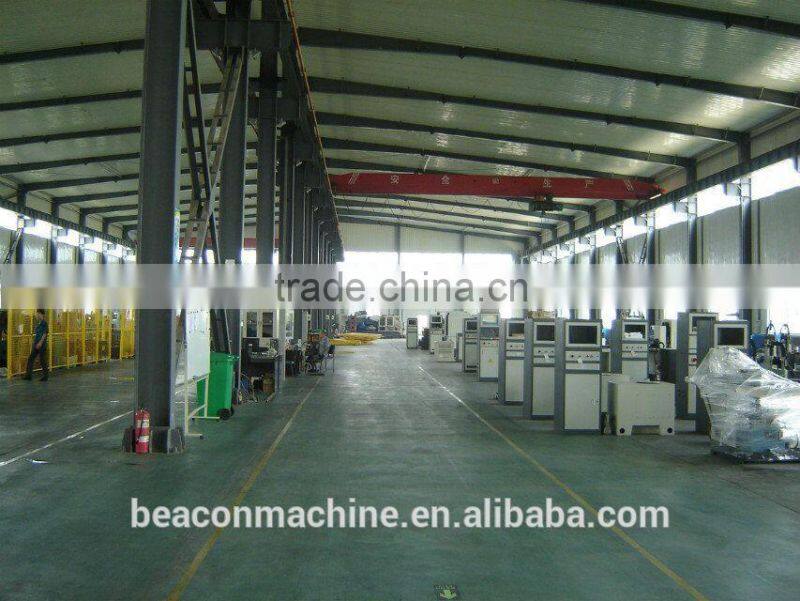

warehouse corner

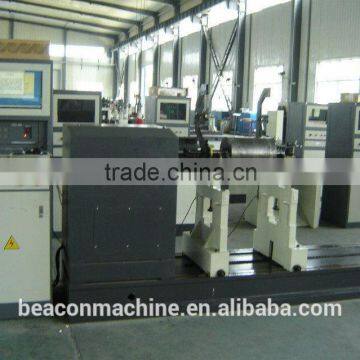

workhouse
>>>Welcome to contact with us
