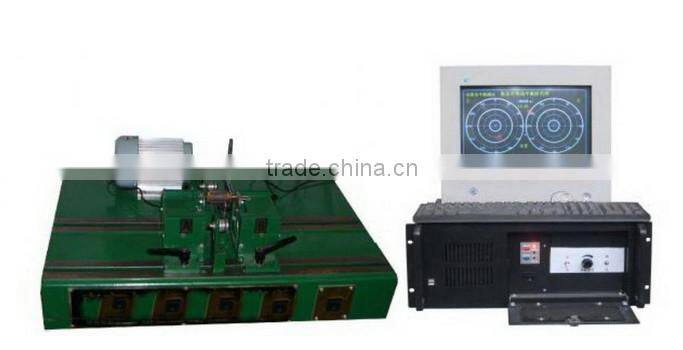

electronic balance BC-D2 turbocharger rotor balancer machine
BC-D2 is an intelligent balancing measuring instrument. core is a microcomputer , and Using a Win XP system, and dynamic balance measured with a dedicated software and hardware, you can connect the printer print balancing measurement charts,And can automatically calculate and set the dynamic balance of the eligibility criteria, to achieve a balance in the color displays automatically when required, is straightforward and accurate.
Technical parameter
Number of emendation sides : | one side(static balancing), two sides(dynamic balancing) | ||||
Number of measuring points: | 2 vibration signals, 1 phase/rotate speed signals | ||||
Combined with mechanical system: | Unbalancing reduce rate URR: ≥95% | ||||
Minimum achievable residual unbalancing value: | 0.1~0.3μm,0.1g mm/kg | ||||
Dynamic bound: | 78db | Balancing rotate speed : | 120--10000rpm | ||
Extent precision: | 1% | Phase precision: | 1° | ||
Size: | 180(High)×445(Width)×480(Depth) mm | Weight: | 19kg | ||
Power supply: | AC180--260V 50Hz | Temperature: | -20--40° | ||

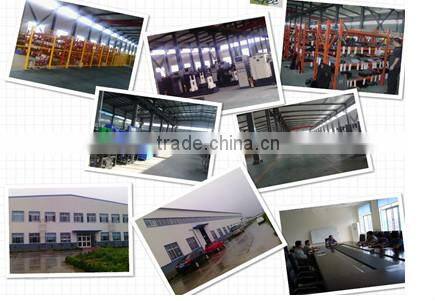

---Our workshop
welcome you to visit to our factory ,and show you how to operate for free
One year warranty for parts , Lifetime technical support
If you become our old customers , will give you lowest price
>>> Welcome to contact with us
