Micro Force Test Load Cell

Micro Force Test Load Cell thumbnail-1
Micro Force Test Load Cell photo-1
US$ 3 - 10 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC701T
Contact Supplier Request Quote Chat Now
Manyyear Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC701T
Type Other, micro force test load cell
Power Supply NA
Display Type NA
Rated Load 2000g
Accuracy NA
Product Description
micro force test load cell

Features

Model:MLC701T

Category:micro load cell

Range:50g, 100g, 500g, 1000g, 2000g

Dimension:40*11*1mm

Material:alloy steel

Application:Force test

Characteristic:micro force test

Technology


                                                                                  Specification

comprehensive error:

0.05FS

output resistance:

1000±10Ω

Rated output:

0.7±20%mv/v

Insulation resistance:

≥2000MΩ(100VDC)

Non-linearity:

0.1%FS

Excitation voltage:

5~10VDC

Hysteresis:

0.05%FS

compensated temp:

-10~+40ºC

Repeatability:

0.1%FS

use temperature:

-20~+55ºC

Creep:

0.1%FS/10MIN

temp effect on zero:

0.1%FS/10ºC

Zero balance:

1±0.1%FS

Temp effect on span:

0.2%FS/10ºC

Input resistance:

1000±10Ω

defend grade:

IP66



Application

micro force test load cell

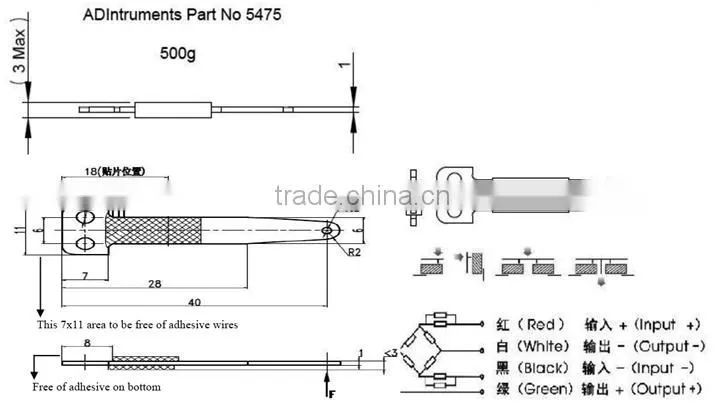

Product Dimension

micro force test load cell



Force type

micro force test load cell



Packaging & Shipping

Packing picture

micro force test load cell



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
