Cheap Alloy Steel Bathroom Scale Weight Sensor

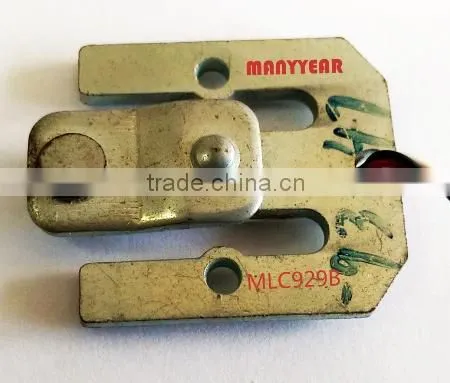

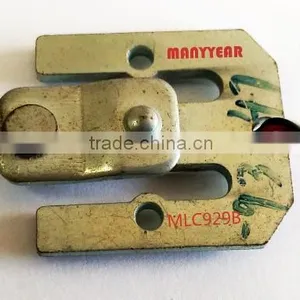

Cheap Alloy Steel Bathroom Scale Weight Sensor photo-1

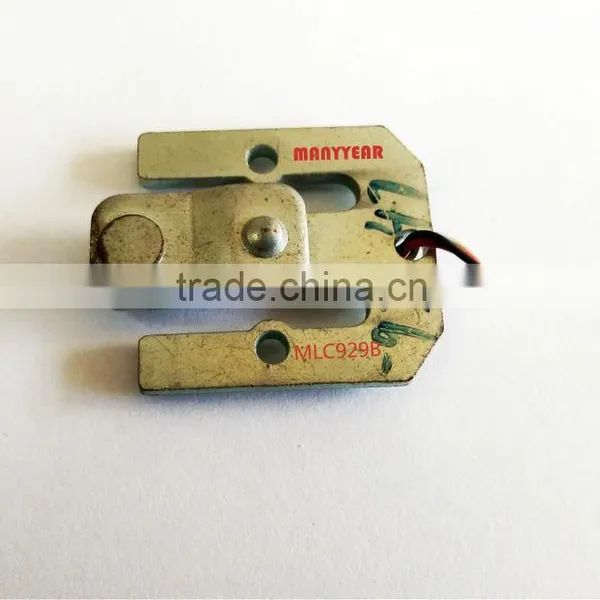

Cheap Alloy Steel Bathroom Scale Weight Sensor photo-2
Cheap Alloy Steel Bathroom Scale Weight Sensor photo-3
US$ 2 - 10 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MANYYEAR
Model Number:
MLC929B
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name MANYYEAR
Model Number MLC929B
Usage Other, Force sensor
Theory Resistance Sensor
Output Analog Sensor
Product Description
cheap alloy steel bathroom scale weight sensor

Features

Model:MLC929B

Category:micro load cell

Range:50kg,75kg

Dimension:35.2*29*2.5mm

Material:alloy steel

Application:body scale,baby scale,personal scale

Characteristic:body scale weighing sensor, personal scale weighing sensor

Technology


                                                                      Specification

comprehensive error:

0.2%FS

output resistance:

1000±10Ω

Rated output:

1.5±0.15mv/v

Insulation resistance:

≥2000MΩ(100VDC)

Non-linearity:

0.15%FS

Excitation voltage:

5~10VDC

Hysteresis:

0.15%FS

compensated temp:

-10~+40ºC

Repeatability:

0.1%FS

use temperature:

-20~+55ºC

Creep:

0.1%FS/10Min

temp effect on zero:

0.2%FS/10ºC

Zero output:

±0.3mv

Temp effect on span:

0.2%FS/10ºC

Input resistance:

1000±10Ω

defend grade:

IP66

Application

cheap alloy steel bathroom scale weight sensor

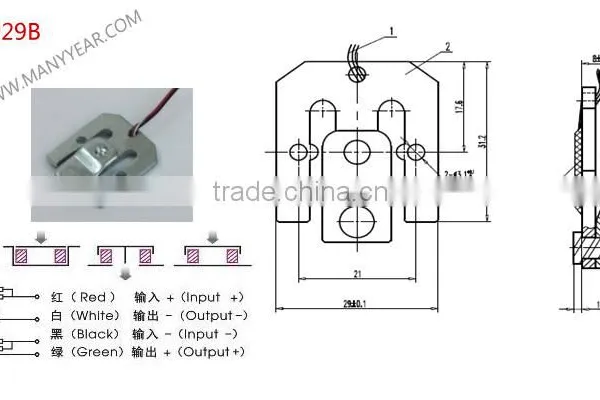

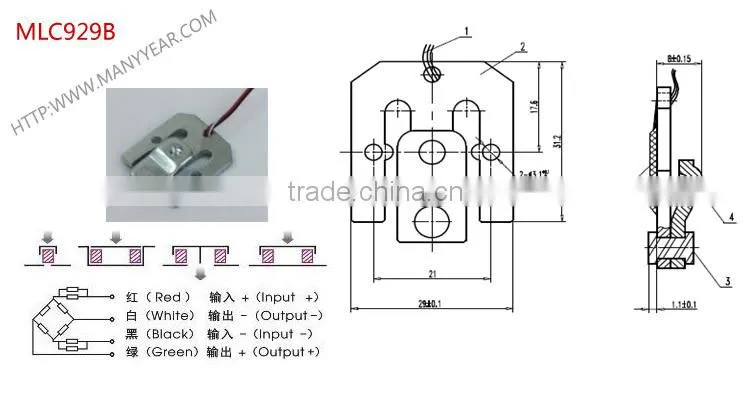

Product Dimension

cheap alloy steel bathroom scale weight sensor



Force type

 cheap alloy steel bathroom scale weight sensor

Packaging & Shipping

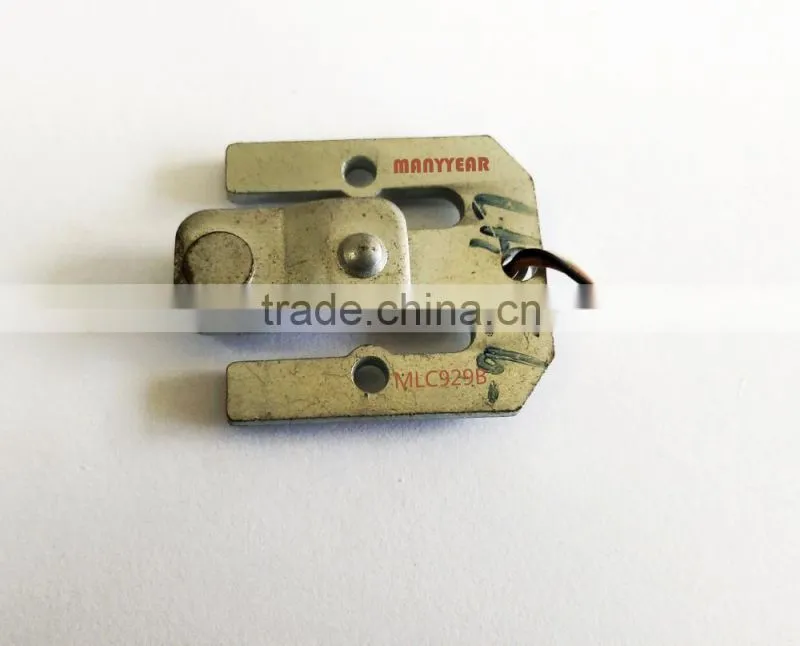

Product photo

cheap alloy steel bathroom scale weight sensor



Packing picture

cheap alloy steel bathroom scale weight sensor



Our Services

24Hr for response time.

5-7days for sample time.

15-25days for delivery time.

12 months for quality assurance time.

ODM, OEM support
