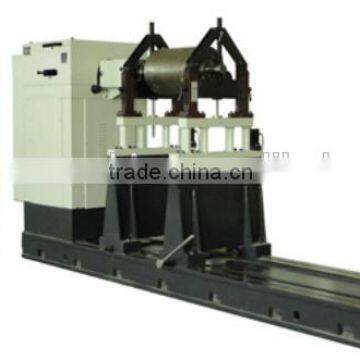

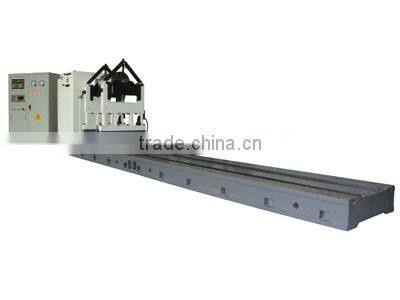

Universal testing machine YYW-10000A crankshaft gimbal balance machine
1.Special designed brackets can effectively transmit mechanical force.
2. The durable and reliable sensor possesses high sensitivity.
3. The permanent calibration brings high accuracy.
4. Driven by universal coupling,transmit the power steadily.
5. Applicable to rotors which can't be driven by belt or need large power.
6. Advanced electrical measuring system and friendly man-machine interface.
7. Windows embedded operating system , Large-screen LCD ,9000 kinds rotor
data storage , Powerful statistical analysis features , Flexible positioning , USB Data Export.
RANGE OF APPLICATION
Mainly used for balancing rotating workpieces,such as medium and large-sized motor rotors balancing, blowers balancing,
pump impellers balancing, drying cylinders balancing, centrifugal impeller balancing and rollers balancing etc..
Driving by universal joint or gear box universal coupling offers several rotational speeds and stepless speed control , large
driving power, high precision and easy operation.
SPECIAL FEATURES
Three measuring systems are optional,Digital/LCD Display of measured value and angle,direct and easy
to read.High Precision:multi-Calibration coefficient combination,automatically adjust the system sensi-
tivity,no shift-skip,dual wave filtration by both hard and soft-ware,highspeed data compression,faster,
more stable and accurate measurement,DIY unit:Balance unti displayed,angle unit and precision displayed
can be defined by user.A real-time unti conversion is available to meet different requirement.
Features:
1.The industrial computer employs Windows XP operating system, steady and easy to operate
2.Introducing excellent quality sensors with high sensitivity, as small as 0.001g
3.Real-time displaying amount and angle of unbalance and rotation speed
4.Efficient
5.Large data storage, can store more than 100 sets of balancing results
--CHARACTER
Model | Mass scope of workpiece kg kg | Biggest diameter workpiece mm | Two span of supports mm | Trunnion support mm | Balancing speed r/min | Min achievable residual unbalance amount g.mm/kg | Unbalance reduction ration % | Motor power kw | mode of speed regulation |
YYW-160A | 5-160 | Φ950 | 60-1420 | Φ10-90 (Φ90-180 for choice) | 300-1500 stepless speed regulation | ≤1 | ≥90 | 2.2 | Variable frequency speed regulation |
YYW-300A | 10-300 | Φ1200 | 60-1700 | Φ10-90 (Φ90-180 for choice) | 300-1500 stepless speed regulation | ≤1 | ≥90 | 5.5 | Variable frequency speed regulation |
YYW-500A | 20-500 | Φ1500 | 70-1600 | Φ20-120 (Φ120-240 for choice) | 300-1500 stepless speed regulation | ≤1 | ≥90 | 5.5 | Variable frequency speed regulation |
YYW-1000A | 20-1000 | Φ1500 | 70-2300 | Φ20-120 (Φ120-240for choice) | 300-1500 stepless speed regulation | ≤1 | ≥90 | 7.5 | Variable frequency speed regulation |
YYW-1600A | 30-1600 | Φ1800 | 100-2300 | Φ20-120 (Φ120-240for choice) | 300-1500 stepless speed regulation | ≤1 | ≥90 | 11 | Variable frequency speed regulation |
YYW-3000S | 50-3000 | Φ2000 | 300-3000 | Φ20-120,Φ120-240 | 110-1170 stepless speed regulation | ≤1 | ≥90 | 11 | Variable frequency speed regulation+Four gear mechanical transmission |
YYW-3000A | 100-3000 | Φ2400 | 300-3000 | Φ40-180,Φ180-300 | 110-1170 stepless speed regulation | ≤1 | ≥90 | 11 | Variable frequency speed regulation+Four gear mechanical transmission |
YYW-5000A | 200-5000 | Φ2400 | 340-2960 | Φ40-180,Φ180-300 | 110-1170 stepless speed regulation | ≤1 | ≥90 | 18.5 | Variable frequency speed regulation+Four gear mechanical transmission |
YYW-10000A | 300-10000 | Φ2400/ Φ3200 | 240-5100 | Φ50-200,Φ200-360 | 110-1140 stepless speed regulation | ≤1 | ≥90 | 45 | Variable frequency speed regulation+Four gear mechanical transmission |
YYW-20000A | 500-20000 | Φ2400/ Φ3200 | 300-5100 | Φ50-200,Φ200-360 | 110-1140 stepless speed regulation | ≤1 | ≥90 | 55 | Variable frequency speed regulation+Four gear mechanical transmission |
YYW-30000A |
| Φ3000/ Φ3600 | 400-6500 | Φ60-220,Φ220-400 | 110-1140 stepless speed regulation | ≤1 | ≥90 | 75 | Variable frequency speed regulation+Five gear mechanical transmission |
our factory anmd team
Our service
welcome you to visit to our factory ,and show you how to operate for free
One year warranty for parts , Lifetime technical support
If you become our old customers , will give you lowest price
