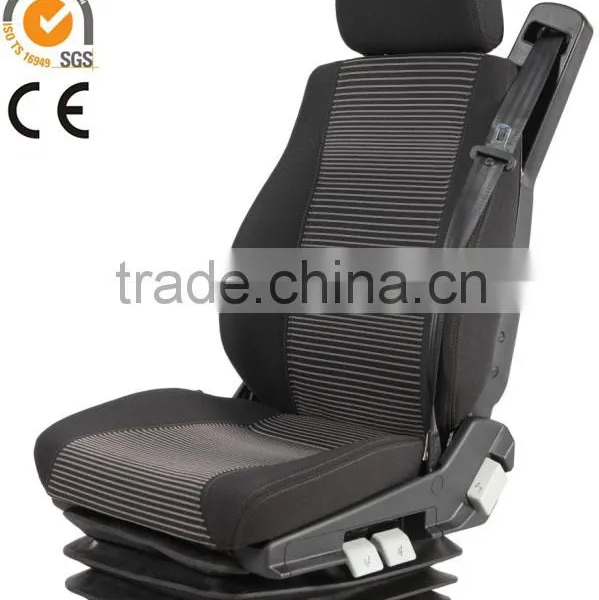

ISRI top quality pneumatic suspension truck driver seats integrated with three point safety belt
- 600 Set / Sets per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Truck Spare Parts for Beiben Sinotruk howo FAW Shacman Foton Auman Hongyan Camc Dongfeng JAC Weichai engine parts
- WEICHAI POWER DEUTZ ENGINE PARTS WATER PUMP 12273212 HASING
- WEICHAI POWER DEUTZ ENGINE PARTS starter 13023606 HASING
- WEICHAI POWER DEUTZ ENGINE PARTS FAN 13021190 HASING
- WEICHAI Deutz POWER ENGINE PARTS 12166779 oil pump HASING
- VIT 3 Position Cylinder 4213500880
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | RECAR | Model Number: | R914A-5B |
Product Description
Specifications
ISRI top quality pneumatic suspension truck driver seats integrated with three point safety belt2. imported pneumatic system
ISRI top quality pneumatic suspension truck driver seats integrated with three point safety belt
R914A-5B
Specifications
1. Horizontal adjustment: stroke 200mm (10mm×20)
2. Weight adjustment: Automated up to 130kg (40~130kg), air pressure 0.3~0.7Mpa (air pressure of supply 0.7~0.9Mpa)
3. Pneumatic suspension function: stroke ±40mm
4. Height / rake adjustment: adjust range ±65mm, rake adjustable ±14°;
5. Backrest adjustment: adjust range 80°+41°
6. Head restraint adjustment: adjust range 75mm (25mm×3)
7. Three-point-belt
8. Seat size(length × height × width) 610mm×1045mm×530mm
9. Seat cushion height(work state)230mm, seat cushion width 485mm, seat cushion depth 480mm
10. Backrest height 630mm, backrest width 485mm
11. Connect size(L/R×F/B)216mm×320mm(280)
