Home > Products > Car parking system > retractable fence gate automatic parking barrier
retractable fence gate automatic parking barrier
- 100 Set / Sets per Month
- SZ
- T/T D/P D/A Credit Card PayPal
Product Details
Type: | Parking Lift | Place of Origin: | Guangdong, China | Brand Name: | SST |
Model Number: | SST-P09 |
Product Description

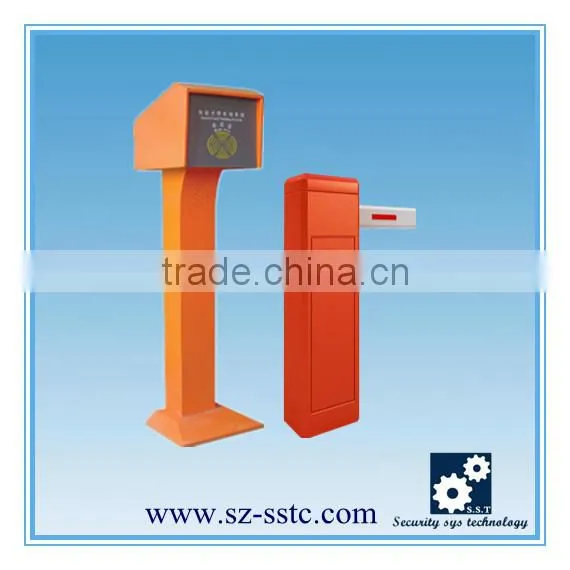

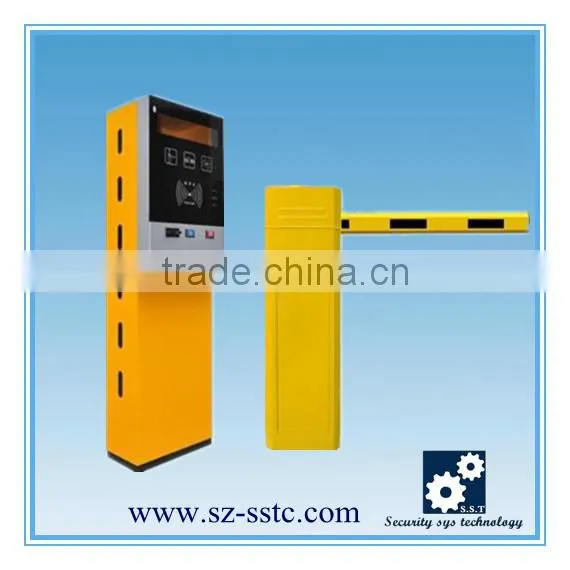

retractable fence gate automatic parking barrier
Parking barrier:
Technical Data:
1) Beam length: <=6m
2) Opening (Closing) time: 1s, 3s, 6s
3) Center height: 0.83m
4) Machine core working temperature: -40 degrees to +75 degrees
5) Electric working temperature: -40 degrees to +75 degrees
6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
7) Rated power: 120W
8) Relative humidity: <=90%
9) Remote control distance: >=30m
10) Net weight: 70KGS
11) Protection grade: IP54
Specification of our 3 types of parking barrier
dimension | 360W*300L*1030H(mm) | 360W*300L*1030H(mm) | 360W*300L*1030H(mm) |
Weight | 65KG | 80KG | 70KG |
Motor power | 100W | 100W | 100W |
voltage | AC220V±10% 50Hz | AC220V±10% 50Hz | AC220V±10% 50Hz |
working temperature | --40°C~+75°C | --40°C~+75°C | --40°C~+75°C |
relative humidity | ≤95% coagulation free | ≤95% coagulation free | ≤95% coagulation free |
Remote control distance | <=30m | <=30m | <=30m |
Arm direction optional: | leftward/rightward | leftward/rightward | leftward/rightward |
Max beam length | <=6m | <=4.5 | <=4.5m |
Noise | ≤60dB | ≤60dB≤60dB | ≤60dB |
motor speed: | 30r/min | 30r/min | 30r/min |
Operating principle | Worm gear | Worm gear | Worm gear |
beam | Straight beam | 2 fence beam | 90°foldable beam |
Beam lifting time | 3s/6s | 6s | 6s |
MCBF | ≥5,000,000 times | ≥5,000,000 times | ≥5,000,000 times |
Working environments | indoor,outdoor | indoor,outdoor | indoor,outdoor |
Features
Anti-collision protects boom arm (optional)
Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once boom arm was collided by a vehicle.
Safety--- Anti-hit by Loop Detector (Optional)
While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.
Safety--- Anti-hit by IR photocell (Optional)
While arm moving down, If infrared transportation between transmitter and receiver is blocked by human or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.
Automatically close after the given time
Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds adjustable) if there is no vehicle passed after barrier open.
Automatically Close by loop detector (Optional)
If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered
Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered
Manually control in case of no power
Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.
Boom to open up fully or close down in case of power failure
If power is suddenly off while boom closing, boom will automatically close down fully if the angle between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening, boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees.
Anti-condensation in cold climate
The barrier remains low power consumption even without closing and opening input, which will keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep working in frozen environment
Transparent plastic covers on Control Board
A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operator.

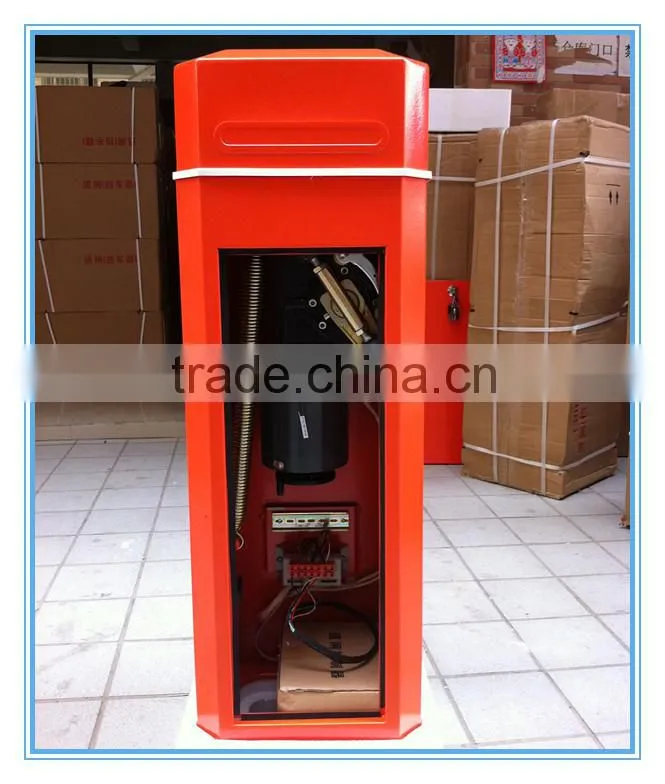

Details:

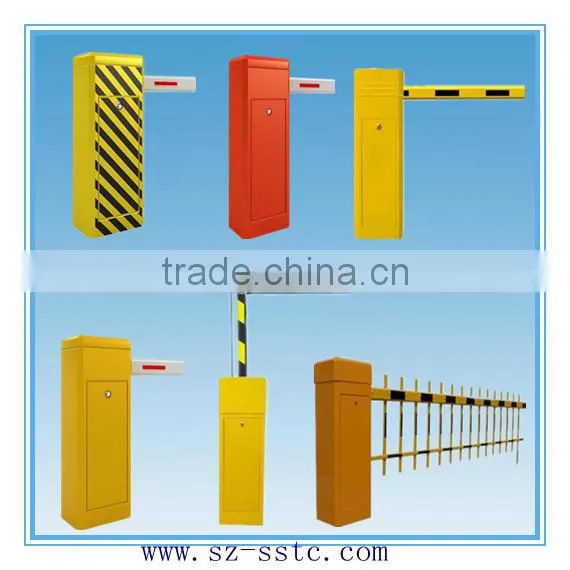

Variety:
Application(Parking management solutions):
Packing
Recommended products:
Our service
Reply your inquiry in 24 working hours.
Professional staff answer your questions in English.
Customized design is available,we can accept OEM & ODM.
Unique problems can be made solution by our professional engineers.
Special discount and protection of our distributors or agents in their area
FAQ
1. How will you handle it after the guarantee expired?
If the product has problem after the warranty period,you can buy the parts from us. We will give you the cost price.
2.How long is the lead time?
This depends on the qty and product.
If less than 50pcs turnstile, it will take 5 days.For parking system and hydraulic road blocker and rising bollard, it will take about 10days.
3 . How about the installation?
We have detailed construction diagram and wiring diagram. If there is still problem on installation, we can arrange our technician assistant you in long distance control.If you need a technician to be your side, we can also do that.
4, We are worried about the package because sometimes,the logistics dont take care of the cargo.
First step, we will pack the cargo by protective film, and then we will pack it by carton. The last steps we will pack with standard exporting wooden case. It is safe and solid.
