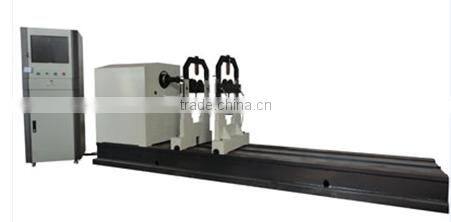

Low price and high quality YYW-160A used dynamic balancing machine
Specifications
YYW-160A Universal Joint Drive Balancing Machine easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function,
overcoming the other hard supporting balance machine measurement system to users to calibration equipment defects,
and the coupling compensation function and so on many kinds of measuring method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man-machine dialogue, automatic hints..
Using the wheel backing, universal coupling to drive;
Varibal frequency control motor;
Industrial control computer data processing, color screen real-time shows amount and angle of unbalance, and rotation speed;
Bed is overall foundry with good stability;
Balance and measure on single side, double side
Features:
This series is hard supporting horizontal dynamic balance machine, with roller bearing, universal couplings drive,
regular for double speed motor drive, "A" type for frequency conversion motor speed and frequency converter,
the industrial control computer for data processing,
color screen real-time display don’t balance phase Angle and value,
real-time speed, lathe bed all use whole casting, the stability is good.
Widely used in electric motors, blower, diesel engine, agricultural machinery, textile machinery, and other industries,
can be in the single side, double side and multiple correction plane balance measurement, suitable for axle,
dish out and center of gravity of the rotor. Have high efficiency, precision accurate, show intuitional, reliable quality,
Production Description
• Special designed brackets can effectively transmit mechanical force
• The durable and reliable sensor possesses high sensitivity
• The permanent calibration brings high accuracy
• Driven by universal coupling,transmit the power steadily
• Applicable to rotors which can't be driven by belt or need large power
• Advanced electrical measuring system and friendly man-machine interface
Range of Application
This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc
More about us
Technical data at a glance | YYW-160A |
Mass scope of workpiece kg | 5-160 |
Biggest diameter workpiece mm | 950 |
Two span of supports mm | 60-1420 |
Trunnion support mm | 10-90 |
Balancing speed r/min | 300-2500 |
Min achievable residual unbalance amount | ≤1gmm/kg |
Unbalance reduction ratio % | ≥90% |
Motor power | 2.2Kw |
mode of speed regulation | Variable frequency speed regulation |
our factory anmd team
Our service
welcome you to visit to our factory ,and show you how to operate for free
One year warranty for parts , Lifetime technical support
If you become our old customers , will give you lowest price
