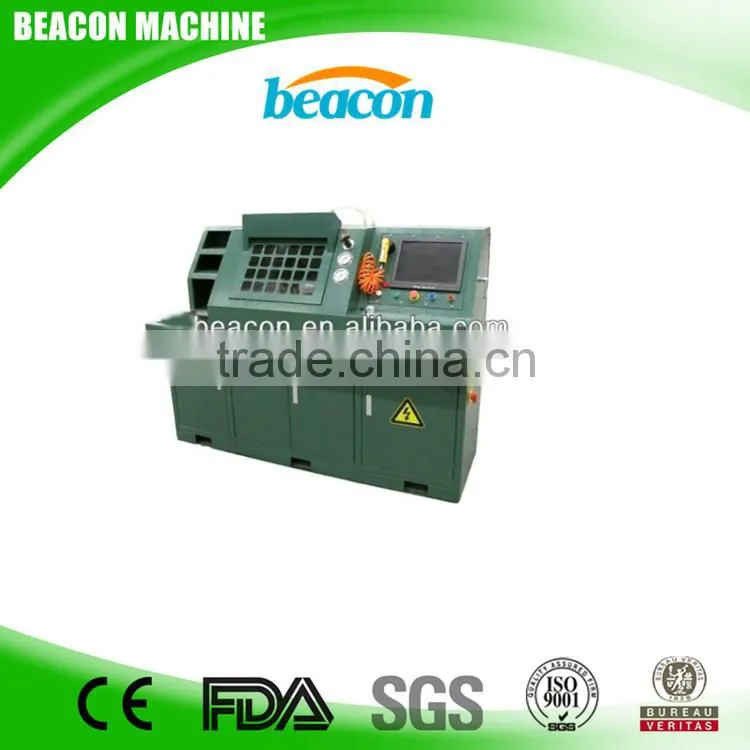

High Quality BC-10 TURBOCHARGER BALANCING MACHINE WIH HIGH SPEED
US$ 12,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Beacon
Model Number:
BC-10
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality BC-15 TURBOCHARGER CORE BALANCING MACHINE Form Beacon MachineUS$ 12,000 - 15,000MOQ: 1 Set -
High Quality and Low Price BC-15 TURBOCHARGER BALANCING MACHINE With High SpeedUS$ 12,000 - 15,000MOQ: 1 Set
-
High Quality and Low Price BC-12 TURBOCHARGER BALANCING MACHINE With High SpeedUS$ 12,000 - 15,000MOQ: 1 Set
-
High Quality and Low Price BC-12 TURBOCHARGER CORE BALANCING MACHINE FROM MNAUFACTUREUS$ 12,000 - 15,000MOQ: 1 Set
-
High Quality RYQ-3 Soft Bearing Turbocharger Dynamic Balancing Machine From Beacon MachineNegotiableMOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Beacon
Model Number
BC-10
Power
Electronic
Usage
Auto Testing Machine
---Characteristics
- Metal supported and reasonable structure- eliminates the effect caused by changing environment, higher testing precision.
- Use the turbine housing of original turbocharger as driving element, the driving force on the turbine is just the same as that when it is working normally, so the testing vibration is more correct.
- Wide range of testing and high rotated speed- the rotated speed can reach up to 50,000~250,000rpm(it depends on the turbocharger model and gas source supply); Wide range testing of turbochargers, it involves almost all the turbochargers used on passenger cars, commercial vehicle, trucks and certain ships.
- TURBOCHARGER CORE BALANCING MACHINE Short testing time- It only takes five seconds to finish the whole speed balancing test.
- Auto-control Oil temperature– oil temperature controlled precisely (oil temperature control system ensures 35±2°C). Make the tested value accurately and well repeated.
- Tested parameters is displayed directly and easy to understand- vibration acceleration and its synchronization rotated speed, angle, oil temperature, oil pressure, etc. are displayed by computer figures; it can display each parameter at a certain time while moving the cursor; it displays directly and understandable, the data can be saved and printed.
- Easy to operate, scientific to judge eligibility; convenient to remove frequency; easy installation. We’ll learn operate within only half an hour.
- Oil leaking test- The lubricating oil pressure is the same as the oil pressure of the normal working turbocharger, and the pressure value of lubricating oil can be adjusted.
- The price is cheaper.
- There are three specifications to meet different satisfaction.
---The Character
|
|
BC-10 |
Appearance |
Dimension(mm) |
2050*800*1400 |
space for tools and disassembling turbo |
0 |
|
Function |
automatic oil heating |
0 |
automatic oil cooling |
0 |
|
Suitable for |
manufacturing and repairing |
|
--Standard export packing:Plywood package

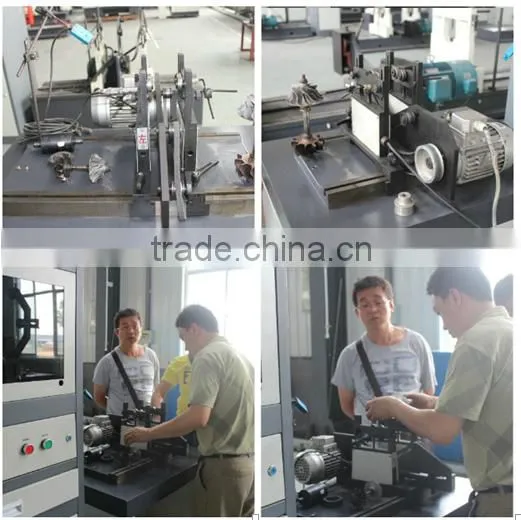

---Our factory and customers
-Our service
welcome you to visit to our factory ,and show you how to operate for free
One year warranty for parts , Lifetime technical support
If you become our old customers , will give you lowest price
