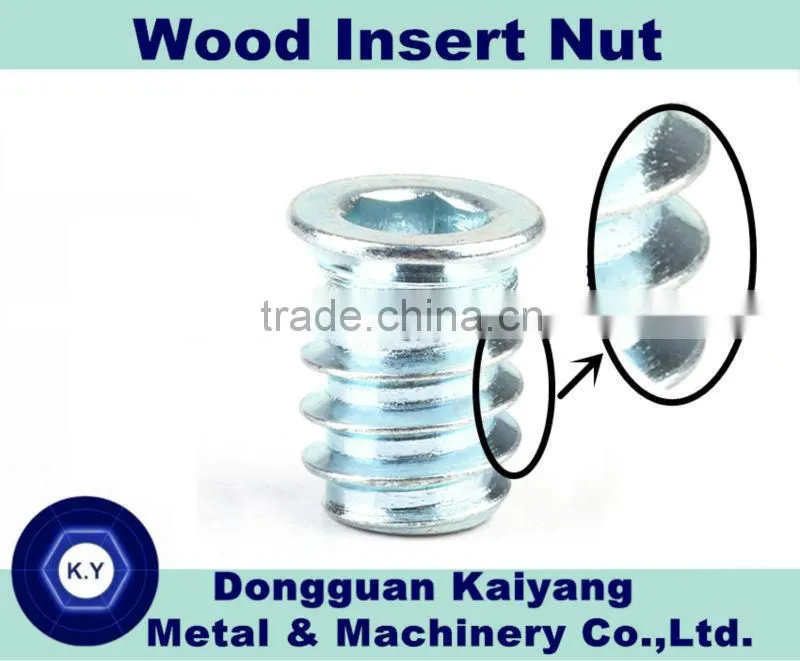

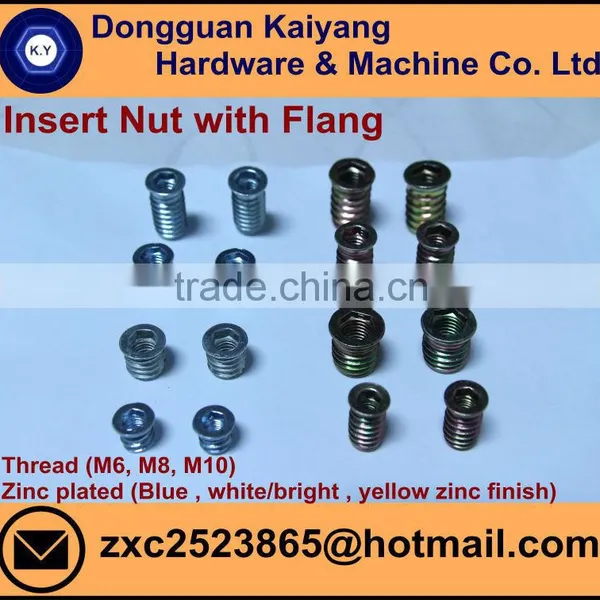

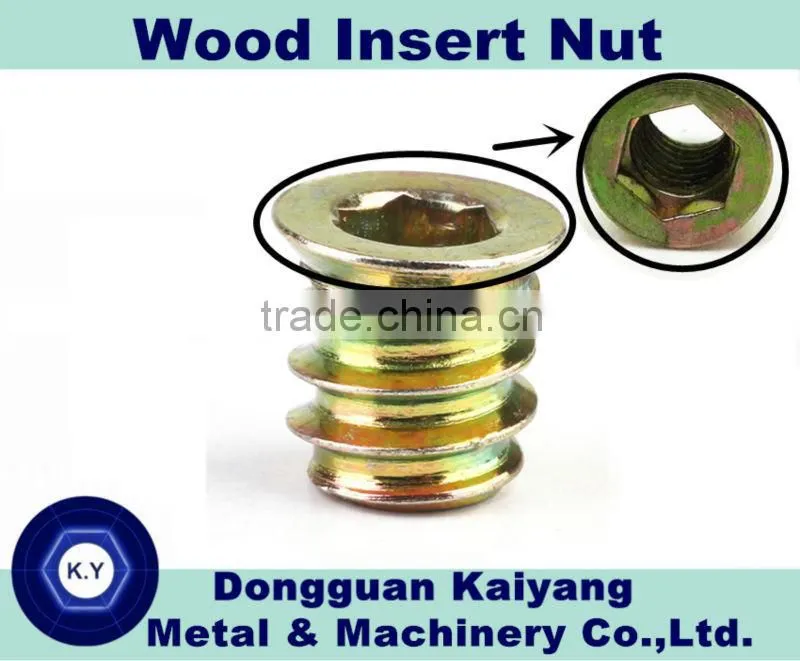

Help CenterInsert Nut/ Insert Nut With Flange (for Wood); Bright(White)/Blue/Yellow Zinc Plated; Nuts and Bolts Size:M6, M8, M10
Related Products
-
M6 M8 M10 Threaded Wood Insert NutUS$ 0.0065 - 0.3MOQ: 1000 Pieces -
M6 M8 M10 Carbon Steel Threaded Insert Nut for Wood FurnitureUS$ 0.0065 - 0.3MOQ: 1000 Pieces
-
M6 M8 M10 Hex Socket Head Joint Connector NutUS$ 0.0065 - 0.3MOQ: 1000 Pieces
-
M6 M8 M10 Wood Insert NutUS$ 0.0065 - 0.3MOQ: 1000 Pieces
-
M6 T Nut With Prongs Furniture HardwareUS$ 0.006 - 0.01MOQ: 100 Pieces
Use thread-in inserts in softer woods and plywood where their coarse outside threads cut easily into the surrounding wood. Simply drill a hole sized for the body of the insert, and screw it into place. In very hard woods, such as white oak and maple, or when the insert is close to the edge of a part and screwing it in may split the wood, drill a hole slightly larger than the outside thread diameter, and epoxy the insert in place. To protect the internal threads from epoxy, cover the end of the insert.
Material's SGS Test Report.
Insert Nut with Flange (mm) | ||||
Metric Size |
Thread |
A |
B |
C |
M6*1.0 |
13 |
10.5 |
10-15 |
|
M8*1.25 |
14.2 |
12.5 |
17 |
|
M10*1.5 |
17 |
14.2 |
20-25 |
|
Inch Size |
1/4*20 |
13 |
10.5 |
10-15 |
3/8*16 |
17 |
14.2 |
20-25 |
|
• The figure above shows the regular size of Dongguan Kaiyang's Insert Nut (with Flange).
• We also welcome buyers to send us your design sketch. It will work better to confirm the design first before you buy it.
Dongguan Kaiyang Insert Nut with Flange | |
Price |
0.0065-0.032 (US) |
Min.Order Quantity |
5000 Piece/Pieces |
Supply Ability |
200 tons per month |
Material |
Carbon Steel |
Finished |
Zinc Plated, Yellow Zinc Plated, Black Oxide |
Function |
An Insert Nut (with Flang) provides a threaded socket for a wooden work piece, similar to a wall anchor. Insert nuts are inserted into a pre-drilled hole by one of two means: screw in and hammer in. It can fasten other connecting pieces to profile's groove duct simply and safely.
Insert Nut (with Flang) can locate automatically and lock tightly during assembly. |
Packing Detail |
We strive for excellent customer service and fast shipping. The package of our products are available in plastic bag and woven pp bag.
Package Size 4000-10000 EA/per bag. About 29-37kg (Weight of products may vary depending on the product specifications)
We have access to various kinds of fastener products. If you do not see it listed, just send us an email or leave message on this website. We will reply your questions as soon as possible. |
Delivery Detail |
If you wonder more detail about our nut products or have any questions, please do not hesitates to contact us. We will do our best to answer your questions. |
Q:Is Dongguan Kaiyang manufacture or trading company?
A:We are manufacturer with more than 20 years experience on cold forge nut and bolt and have professional QC and R&D teams to assure our quality. We also welcome you to visit our factory.
Q: How can I check the quality?
A: Dongguan Kaiyang can send you free samples for testing.
Q:What is your best price?
A:You could enjoy more favorable price with large quantity.
Q:How to order?
If you are satisfy with our products, please tell us which items, mesh, usage,quantity,ect you want to order.
We will make a performa invoice(PI) for your order to confirm and deliver the goods ASAP when your payment has been approved.
Q: What kinds of payment terms do you have?
A:We accept the payment by T/T and Paypal.
Q:What if I need a larger quantity?
A: Discounts apply for large order.
If you would like to know more information of our products, please click the product you are interested in to get further details, Thanks.
