Solar pv Modules

US$ 0.45 - 0.65 MOQ: 1 Piece

Key Specifications

Business Type:

Trading Company

Year Established:

2011

Factory Size:

Below 1,000 square meters

Zhejiang Ganghang Solar Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/ Ningbo

Delivery Detail:

Delivery time depends on order quantity.

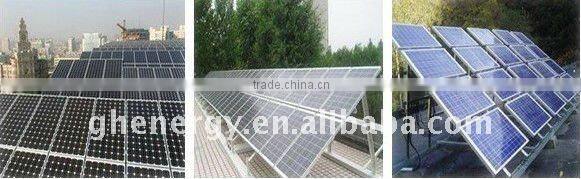

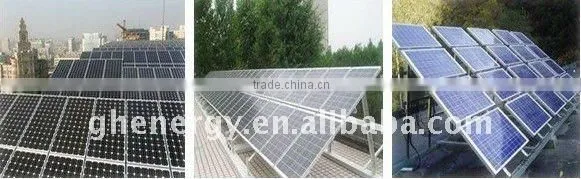

Solar pv modules

We could design for customers required of other specification

1)Certificate:ISO,CE.TUV.IEC.
2) Reasonable Price
3) High Quality
4) 25 years lifetime.

Module Type	SC175M-24	SC180M-24	SC185M-24	SC190M-24
Max. Power	175W	180W	185W	190W
Open Voltage	44.2V	44.4V	44.8V	45.1V
Short Current	5.20A	5.40A	5.51A	5.60A
Max. Power Voltage	35.2V	35.6V	36.2V	36.5V
Max. Power Current	4.97A	5.056A	5.11A	5.20A
Temperature of Coefficients of Isc	+0.017%/
Temperature of Coefficients of Voc	-0.34%/
Temperature of Coefficients of Pm	-0.48%/
Operating Temperature	-40 to +85
Cell Type	Mono-crystalline (125*125)
No. of Cells	72 series
Max. System Voltage	1000VDC
Power Tolerance	±3%
Surface Max. Load Capacity	60m/s (200kg/ m2
Weight	15.5kg
Dimensions	158080835/40/50mm

Assembled by high efficiency crystalline silicon cells from our own fab
Two types: mono-crystalline and multi-crystalline
Power range of standard module: 155w - 240w (power output depends on efficiency and type of cells used)
With or without screw frame design, strong mechanical resistance
High transmission low iron tempered glass, strong mechanical resistance
Standard waterproof junction box, with bypass diode, which protects the module from burning caused by hot-spot effect because of shading
High endurance to different atrocious weather, passed the IEC61215 & IEC61730 performance test and UL1703 safety test
5-year quality guarantee and 10 - 25-year power output guarantee
