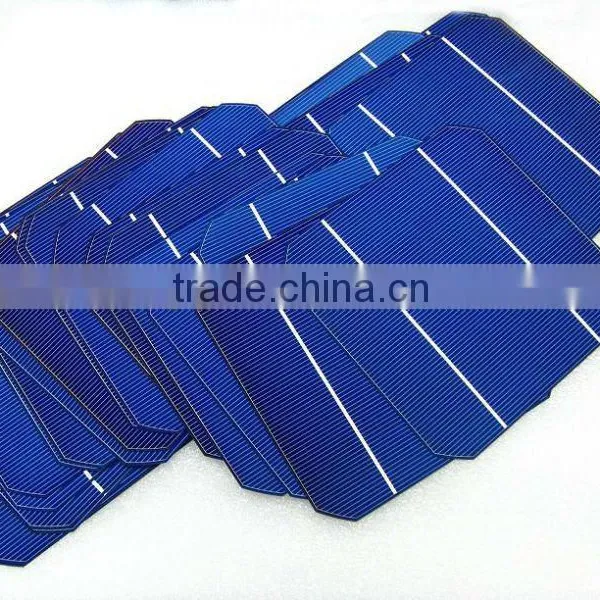

Help CenterHottest Sale 156mmx156mm Monocrystalline Solar Cell, 2BB, High Qualtity,6x6,3x6
Related Products
Specifications
Hottest sale 156mmx156mm monocrystalline solar cell, 2BB, high qualtity,6x6,3x6Our products bear TUV, UL, MCS, CE, membership
200W
Hottest sale 156mmx156mm monocrystalline solar cell, 2BB, high qualtity,6x6,3x6Untabbed
1.High efficiency monocrystalline modules
2.ISO 9001 certified factory.
3.Low power tolerance of +/-3% .
Applications:
1.Home solar power system projects
2.Perfect for commercial solar systems
3.Science projects
4.Electronic applications
5.RV chagers
6.Charging DC batteries
Specification:
1.CELLS: Monocrystalline silicon solar cells
2.Number of cells and connections:91(13 x 7 )
3.Dimension of the module: 1706 x944 x50 ( mm )
4.Weight: 20kg
Electrical Data:
Nominal Peak Power(MaxP) |
210WP |
Tolerance: |
+- 3% |
Maximum Power voltage ( Vmp ) |
36 Volts |
Maximum power current ( Imp ) |
6.11Amp |
Open circuit voltage ( Voc ) |
45.6Volts |
Short circuit current ( Isc ) |
6.64Amp |
Optimized cell efficiency |
16.3% |
Limits:
1. Operating temperature : -40C to +85C
2. Maximum system voltage: 1000V DC
Warranty:
1. 15 year: less than 90% of normal rating outputting.
2. 25year: less than 80% of normal rating outputting.
