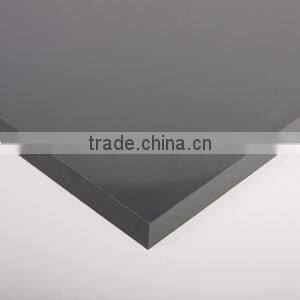

18mm Kitchen Cabinets pvc celuka foam board
Feature: Waterproof, flame retardant, fireproofing moth-proofing, qualitative light
1. Item information:
Size: 1220 * 2440 mm, 1560 * 3050 mm, 2050 * 3050 mm
The thickness of the product: 1-33 mm
Product density: 0.35g/cm3 to 0.9g/cm3
2. Item Feature:
1. Waterproof, flame retardant, resistance to acid and alkali, moth-proofing, qualitative light, heat preservation, sound insulation, shock absorption properties
2. Wood processing and and processing performance is much better than wood
3. is a ideal substitute for wood, aluminum, composite plate
4. "pedal very smooth surface, high hardness, not easy scratches, often used to make ambry, furniture, etc
3. process:
According to the production process of PVC foam board can be divided into PVC crust foam board and PVC free foam board
PVC crust foamed board surface hardness is very high, it is difficult to produce scratches, widely used in ambry, decorate, building, etc
PVC free foam board surface hardness, widely used in advertising hoardings, framed sketchpad, screen printing, engraving, etc.
4 Other features:
PVC foam board, sound insulation, sound-absorbing, heat insulation, heat preservation performance.
PVC foam board quality with flame retardant, fire can self-extinguishing security, safe to use.
Series of products have low PVC foaming plates in the moistureproof, mouldproof, not the performance of water absorption, and shock effect is good.
Low foamed PVC board after each series of products made by weather resistance formula, its colour and lustre is permanent, not easy ageing.
PVC foam board texture light, storage and transportation, construction is convenient.
Low foamed PVC plate using general woodworking tool construction.
Low PVC foam board can be like a wood nail, planing, drilling, sawing, such as processing.
PVC foam board can be used in hot forming, heat bending and folding processing.
Low foamed PVC plate according to the general welding procedure, can also be bonding with other PVC materials.
PVC foam board its smooth surface, easy to printing.
5 physical property parameter of material:
item |
unit |
Performance index |
Surface density |
Kg/m³ |
500~800 |
|
Hardness JIS A |
D |
≥60 |
Tensile strength |
Mpa |
≥10 |
elongation at break |
% |
≥10 |
|
CHARPY Impact Strength |
KJ/m2 |
≥12 |
|
Vicat softening degrees |
°C |
≥70 |
|
Heating size rate |
% |
±2.0 |
Bibulous rate |
% |
≤1.0 |
|
Bending strength |
Mpa |
≥20 |
|
Bending modulus of nature |
Mpa |
≥600 |
Oxygen index |
% |
≥32 |
The density of smoke emission |
% |
≤75 |
The likelihood performance |
— |
Arrive to the GB8624-1999 Flame retardant materials B1grade |
6 Product testing method:
(1) the board face: feel is smooth level off, mechanical texture is not obvious, the surface color no off color, milky white, surface without stain, no obvious small pit, pinhole, no bulky pore, fracture. Note: the ivory foam board into recycling scrap board, do not belong to the environmental protection board, green board contains no lead content (less than the European and American standard).
(2) the board side: incision smooth, thin pore, pinhole, no bulky pore, off powder, not serious, no bees hole, cutting fiber since the fall off, don't jump. Note: this is to be aware of the finished product process sequence do after trouble.
(3) the thickness measurement: caliper standing surface, contact closely with no gaps, uniform thickness, around the left right measurements, whether the deviation is very large, thickness deviation of plus or minus 0.2 MM as normal.
(4) plate weight algorithm: weight (g) = (cm) * length * width * thickness, density,
(5) density algorithm: density (g) = weight/length * width * thickness (cm)

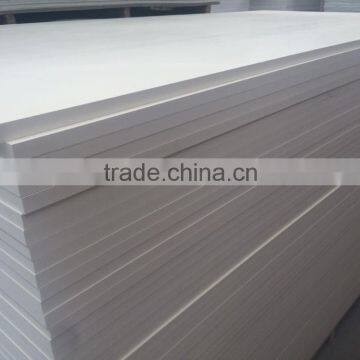

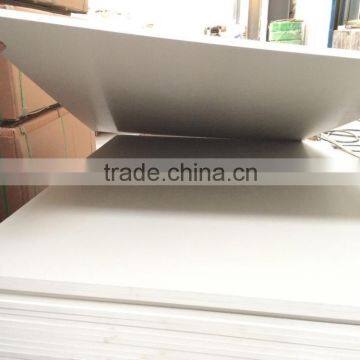

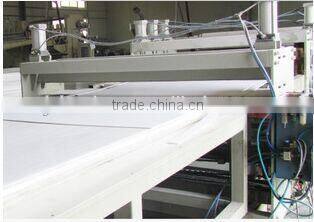

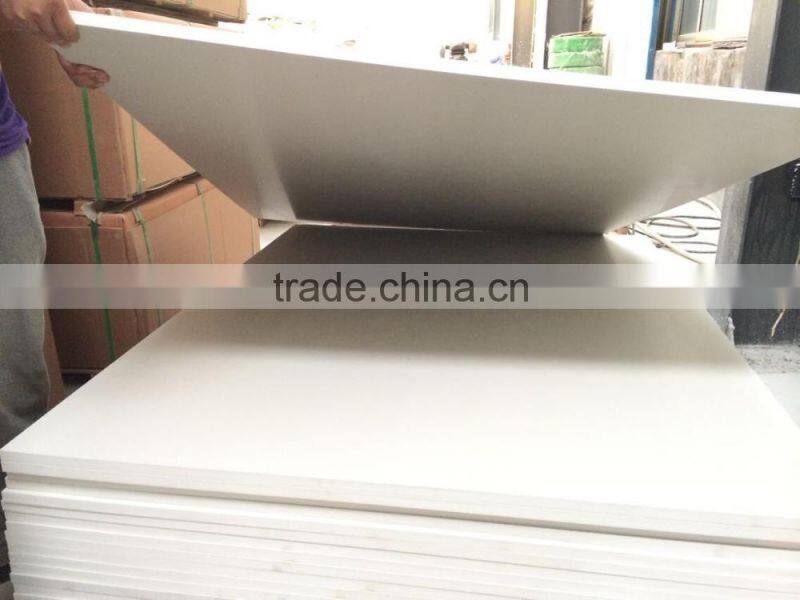

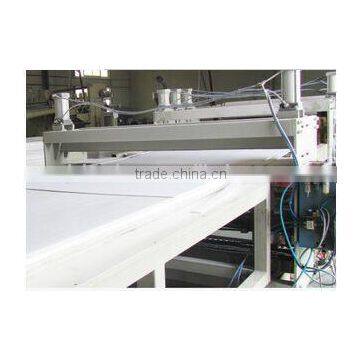

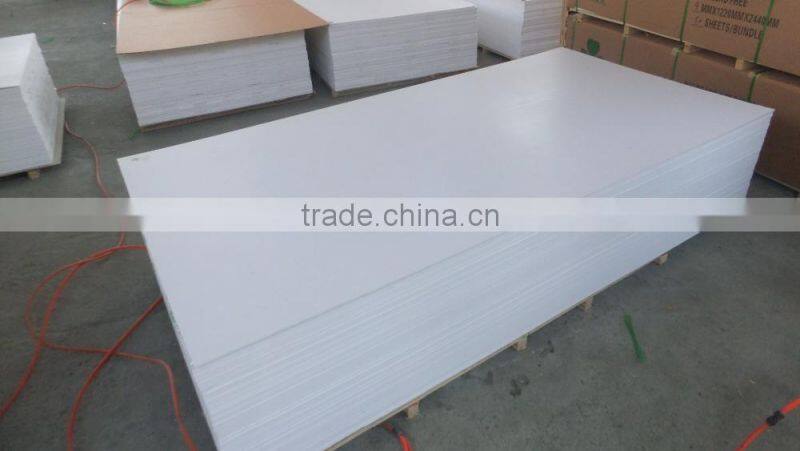

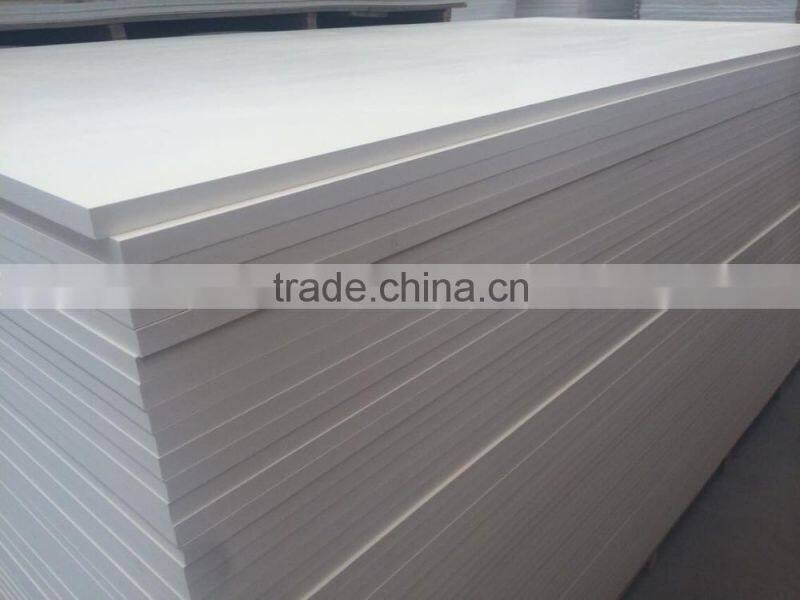

7 Pictures:
