noodle packaging machine
New technology China noodle pasta packaging machine
M bag pasta spaghetti dry noodle full automatic packing machine
This automatic packing machine include auto feeding,packing,M bag packing, elevating,and automatic putting bag packing machine

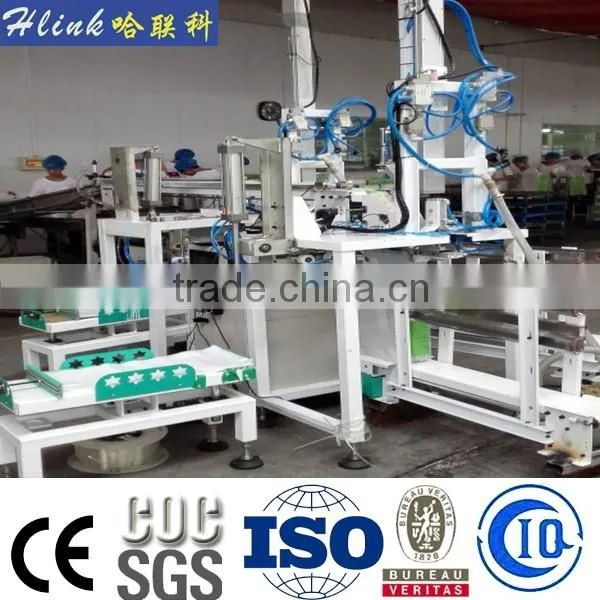

this is installed picture of noodle packing machine in China factory.
The production line is divided into automatic feeding, metering noodles, hoist, M bags noodle packaging machines, conveyor belts and flat bags (sachets sack) packing machine etc.
M bags noodle automatic packing machine: Packing 800-1000 grams and 350-500 grams of two specifications of equipment, models are ZDG-500 and ZDG-1000
ZDG-500: Filling weight range 350-500 grams, the minimum requirements for M pocketed mouth circumference 222MM, noodles requires uniform length, packing speed of 19-21 packs / min, 440-570 kg / hr.
ZDG-1000: Filling weight range of 800-1000 grams, the minimum requirements for M pocketed mouth circumference 270MM, noodles requires uniform length, packing speed of 14-16 packs / min, 760-840 kg / hr.
Automatic bagging machine: Packing 800-1000 grams and 350-500 grams of two specifications and equipment, models are ZDZ-500 and two kinds ZDZ-1000
Description: Small noodle packaging M bags, packaging weight 350-500 g, noodle length 200MM, filling speed of 22-25 bags / min;The yield was 1320-1500 bags / hour; 525-660 kg / hr .

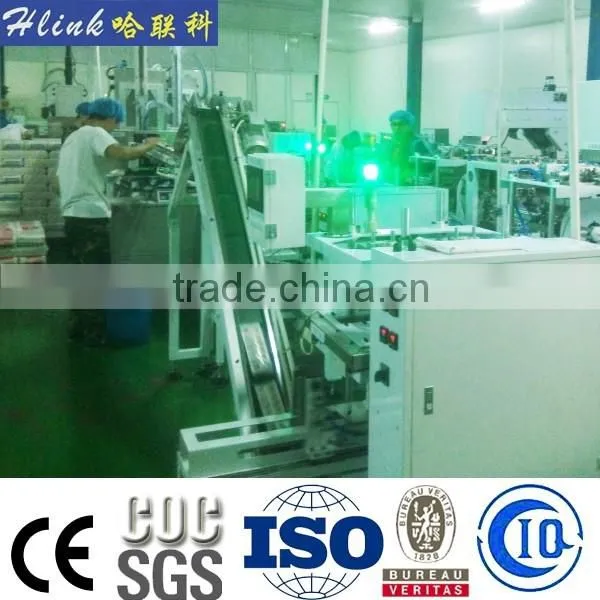

this is the installed pic of New technology China noodle pasta packaging machine.
Processing instruction:
Auto fetch bags,and folder bags to the right position
This line totally have two step, First is the pasta spaghetti dry noodle filling in the M-type bags,Second step is the finished small bags put in the big sack.
After the first step,the bags divided in two lines,two different screw convey,when the bags conveyed to the grip position,Electric Actuator sucking the bags by the sucking disk,and move it to the M-type big sack,finished for one packet.Every big sack can take 20small bags,after one big sack,auto transported to finished conveyor,the worker can sealing it by the tape
One pasta bag packing with two sack filling
Name |
Quantity |
divider conveyor |
1 |
sachet packing machine (include conveyor,filling ,and sachet output belt ) |
2 |
Best service for New technology China noodle pasta packaging machine.
1. Branch offices in Australia,Brazil,South Africa,Zambia,Congo,Ethiopia for door to door service.
Agent in Kenya,Egypt,Tanzania etc..
2. Engineer visit
Experienced engineers do the installation guide,free training operation,test machine.
3. Spare parts
Supply one year spare parts for the packing machines as free.
.
Harbin Link Auto Technology Development Co.,Ltd .
We have been delivering results since we opened in 2003. Our goal is to provide both a superior customer experience and tremendous value for our customers.
We are located in Harbin China,one professional team.Totally 228 workers,workshop and office is more than 50 000 square meters.
Our aim is:To do China best packaging scales
To do China most advanced packaging scales
To do the perfect packing solution for our client
Offer best after sales service to our client
this is factory and storage house for noodle and pasta packing machine.
Contact us:
Ms.Alice yao
email add: topscalemachine(at)
cell 00 86 183 3011 2982 (whatsapp/Imo/WeChat)
New technology China noodle pasta packaging machine
Pasta packing machine running in Ethiopia
noodle packing machines in Ethiopia
