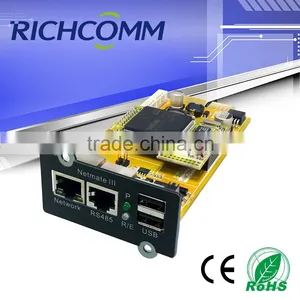

Netagent SNMP UPS Remote Control

Netagent SNMP UPS Remote Control thumbnail-1
Netagent SNMP UPS Remote Control photo-1
US$ 100 - 150 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Richcomm
Model Number:
NetmateIII SE
Contact Supplier Request Quote Chat Now
Guangzhou Richcomm System Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Richcomm
Model Number NetmateIII SE
Weight 340g
Output Voltage 12V
Application Security / Monitoring / Alarm





                                                                               Netmate III (Internal)

Overview

Netmate Ⅲ SE brings a high security monitoring level for uninterrupted power supply(UPS), they designed of a powerful CPU, support USB add-on devices, RS485 add-on devices(Temp & Humid), also support realize advanced encrypted protocols such as HTTP, HTTPS, SSH, SSL, IPV6, SNMP V3, etc.







 Product Function

l Support advantage encryption protocol such as HTTP, HTTPS, SSL, SSH,   SNMPV1V2cV3;

l Support telnet, supper terminal, WEB page configuration;

l Compatible with multi-brand and multi-type of UPS;

l Support to add on 2 pieces of Temp&Humid sensors via RS422/RS485 ports;

l Support SNMP trap,E-mail alarm notification;

l Support IPV4/IPV6;

l Support scheduled task, remotely control UPS self-testing, switch on/off, battery regularly charge/discharge);

l Support 50000 history events and 5000 data record;

l Comprehensive event handle( including event record and notification);

l Comprehensive managing function( data logs, SNTP and task schedule);

l Support IPV4/IPV6;

l Available to work with centralized software.






Ports Introduction





1. Network:10/100M RJ45 Ethernet port, connect to network;

2. RS485: RS485 port for extension;

3. R/E: Device Offline,green indicator frequently flash,about 2.5Hz; Normal,green indicator normally flash,0.25Hz,2s light,2s dark;

4. P:power indicator,constantly on;

5. USB:USB0,USB1,to USB device;

6. Gold Finger.

RS485 Definition

1. 485A

2. 485B

3. empty

4. 485B

5. 485A

6. empty

7. +12V

8. GND







Technical Parameter



CPU

32-bit ARM926EJ-S core 300 MHz high speed processor(CPU)

RAM

64Mbyte SDRAM

Flash ROM

128M byte and Flash

Network Interface

10/100Mbps high speed Ethernet self adaptive

USB

2 USB 2.0(connect USB add on device)

Serial Port

1 RS232 serial port

1 RS485 serial port for expanding equipment

SNMP MIB

Support RFC1213, RFC1628, PPC MIB

Network Protocols

TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP,DNS,TFTP,ARP,ICMP,PPP

Encrypted Protocols

HTTPS, SSH, SSL, IPV6, SNMP V3

LED Indicators

Power, Status, Ready, LAN 10/100M Link/Active

Input(DC)

8volt - 15volt

Running Environment

Temp:0℃~ 70℃

Power Consumption

≤2.5W

Humid:10 ~ 80%

Other Configurations

System clock for synchronization

Software Upgrade

Network Upgrade

Language

Chinese, English and OEM other language

System Safety

Provided based on IP filtering mechanism, and system operation, control and management of the user ID and password protection

Certificates

CE/FCC









Monitoring Interface

Netagent SNMP UPS Remote Control









Typical Application

Single/Three Phase UPS monitoring, Temperature Humidity Monitoring, Environmental System monitoring, etc







Accessories



SN

Name

M.N

Function

Connection



1





Temp&Humid Sensor





RC77015

OLED Display



Detect data center indoor temperature and humidity parameters, every 20 M²need to install 1pc



RS422



RC77012

Digital Type
