Advanced UPS Monitor SNMP Card for UPS Monitoring System

Advanced UPS SNMP Card for UPS Monitoring System

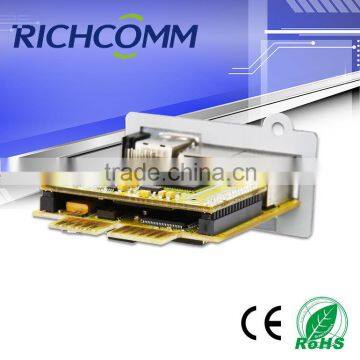

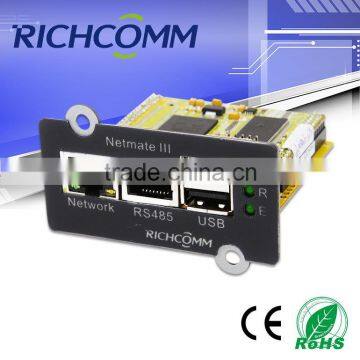

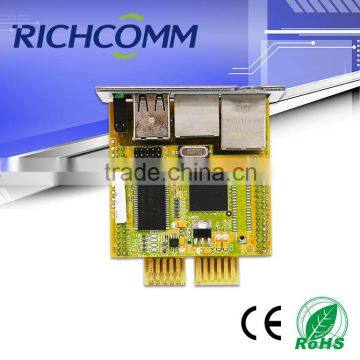

  Netmate III (Internal)

Overview

Netmate III (Internal) belong to advanced the Generation II web-based UPS(uninterruptible power supply) SNMP cards. Designed with a more powerful CPU of high security,  This card support multi-brand and multi-type single/three phase ( low frequency, high frequency )UPS monitoring, also can do more environmental  extension, greatly satisty user high-level UPS monitoring demands.

 Product Function

• Support SNMP V2 protocol, RFC1628 MIB, XPPC MIB;

• Built-in WEB server to achieve HTTP access;

• Multi-brand multi-type compatible for UPS ;

• Support history events and data storage;

• Support to extend 2 Temp & Humid sensors and 8 commom air conditioning infrared control;

• Support secondary extension for dry contact inputs;

• Support E-mail /SNMP trap alarm notifications;

• Support multi-user authorization management;

• Support DHCP;

• Support scheduled task;

• Support TELNET, WEB page configurations;

• Support network upgrade;

• With SNTP synchronous clock.

• Work with IP Power SE/ IP Power 2012 for central monitoring and unify management

 Advantage

• Support web-based monitoring for single/ three phase UPS;

• Monitor basic UPS information like current, voltage, bypass, AC power status, etc.

• Multi-brand multi-type compatible UPS compatible like APC, EMERSON, EATON, Rellos

KELONG, KSTART ETC.;

• Memory function;

• Powerful environmental extension function;

• Built-in system clock can realize memory function, including:

•   Task scheduler(timing self-test, open, shutdown);

•   History event and history data record;

• Support to extend environmental parameters;

•   Temp & humidity sensor;

•   Digital inputs including smoke, water leakage, door/window contact, etc.

Dimension

 Technical Parameter

 Monitoring Interface

Typical Application

UPS monitoring, Environmental monitoring, Server room monitoring, Data center monitoring, etc.
