NetmateLite SE(Internal Long Card)
Overview:
NetmateLite SE is belong to the Generation I Web-based UPS(uninterruptible power supply) SNMP cards, this internal long card support basic single-phase UPS monitoring with 500 history events, which is of friendly user interface and simple operation, can fully satisfy user basic UPS monitoring demands.
Function
l Support SNMP V1.1 version;
l Support basic single phase UPS monitoring;
l Provide user authorization management;
l Built-in WEB server to achieve HTTP access;
l With 3 indicators(S1,S2,S3) to check various working status;
l Support 500 history event storage;
l Clock function;
l Support SNMP trap/e-mail alarm;
l Support network/USB port/serial port;
l Work with IP Power SE/IP Power 2012 for central monitoring;
Advantage
l Competitive price;
l Friendly web interface, simple convenient operation & maintenance;
l Customize to different languages ;
l With clock function and 500 history events.

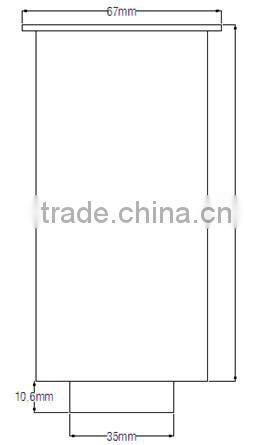

Dimension
Network Diagram
Technical Parameters
CPU | Low power and high performance, high ARM7TDMI-S 72MHz CPU |
RAM | 96KB SDRAM |
Flash | 512KB Flash |
Network Port | 10/100Mbps high-speed ethernet self-adaptive |
Serial Port | Gold Finger |
Browser Support | Support Internet Explorer, Goole Chrome, Netscape or other compatible browser |
SNMP MIB | Support MIB-II(RFC1213, RFC1315, RFC1316, RFC1628), PPCMIB |
Network | TCP/IP,UDP,SNMP |
Input Power(DC) | 9-15V |
LED Indicator | Power, Status, LAN 10/100M Link/Active |
Power Consumption | ≤0.84W |
Working Environment | Temperature:0℃~70℃ |
Relative Humidity:≤95% | |
System Upgrade | Serial Port/USB Port/Network |
System Security | Provide IP based filtering mechanism, system operation, user ID control & management and password protection. |
Safety Certificate | CE, FCC, ISO9001, ISO14001 |
Monitoring Interface
Typical Application
Web-based UPS( uninterruptible power supply )monitoring
Advance Type: http://richcomm.en.china.cn/product/60142261186-800797893/SNMP_Card_for_UPS_NetmateII_Internal_Double_Conversion_UPS_Monitor_Modular_UPS_Power_Supply_Monitoring.html
