SNMP Card Power Backup System Online Single Phase UPS Available

  Netmate II mini(Internal)

Overview

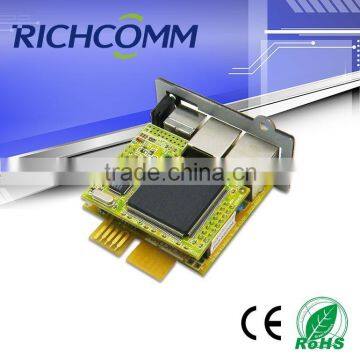

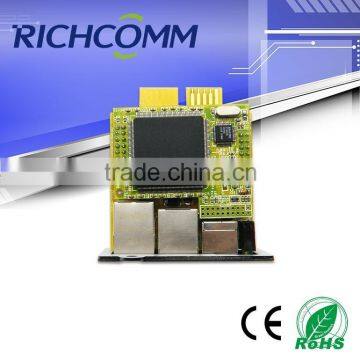

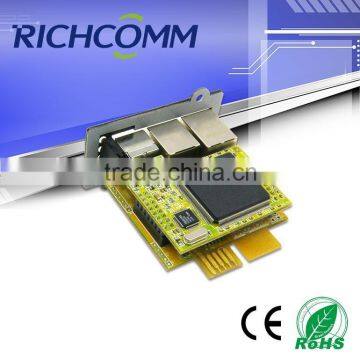

Netmate II mini(Internal) is belong to the advanced Generation II web-based UPS(uninterruptible power supply) SNMP card.

Designed with a more powerful  CPU,  NMII  mini(internal)support  IPV6, SNMP 2.0,  support

multi brand multi model single/three phase UPS monitoring, also support environmental monitoring  extension like temperature, humidity, smoke, water leaking, door/window contact. etc. NMII Mini(Internal) is of high security and greatly satisfy user high-level UPS monitoring demands.

 Product Function

• Support SNMP V2 protocol, RFC1628 MIB, XPPC MIB;

• Built-in WEB server to achieve HTTP access;

• Multi brand multi model UPS compatible;

• Support history events and data storage;

• Support to extend 2 Temp & Humid sensors and 8 commom air conditioning infrared control;

• Support secondary extension for dry contact inputs;

• Support E-mail /SNMP trap alarm notifications;

• Support multi-user authorization management;

• Support DHCP;

• Support scheduled task;

• Support TELNET, WEB page configurations;

• Support network upgrade;

• With SNTP synchronous clock.

• Work with IP Power SE/ IP Power 2012 for central monitoring and unify management

 Advantage

• Support web-based monitoring for single/ three phase UPS;

• Monitor basic UPS information like current, voltage, bypass, AC power status, etc.

• Multi brand multi model UPS compatible like APC, Emerson, Eaton, Rellos

Kelong, Kstar, Ga, Delta, etc.;

• Memory function;

• Powerful environmental extension function;

• Built-in system clock can realize memory function, including:

•   Task scheduler(timing self-test, open, shutdown);

•   History event and history data record;

• Support to extend environmental parameters;

•   Temp & humidity sensor;

•   Digital inputs including smoke, water leakage, door/window contact, etc.

Dimension

 Technical Parameter

Monitoring Interface

Typical Application

Single/Three Phase UPS monitoring, Temperature Humidity Monitoring, Environmental System monitoring, etc.
