Overview
MobileSite BE is a SMS monitoring host that special developed for smallsize central data center
with UPS monitoring and Power & Environment monitoring.This product adopts popular rack
mounted architecture of 1U 19 inch, 100~240 V AC power supply to more satisfy the construction
requirement of modern data center. Besides, Mobilesite BE also support 4 dry contact inputs, 2 relay
outputs, 8 Temp & Humid extension. In additional, MobileSite BE built in GSM modem can realtime
inform the administrator with SMS message when alerts happens, it is available for mobile station
and telecom station.
1. Product Function
• Support SNMP V2 protocol, RFC1628 MIB, XPPC MIB;
• Built-in WEB server to achieve HTTP access;
• Built-in dual-frequency GSM/GPRS module(900/1800Mhz)
• Multiple compatibility of various brands and types of UPS, etc;
• Support history events and data storage;
• Support to extend dry contact signal input(Such as smoke, water leakage, door contact, etc);
• Support 2 channels of relay manual control output and linkage control output;
• Support to extend temperature and humidity detection and general air condition infrared control;
• Support sound light alarm, SMS, E-mail alarm and SNMP Trap;
• Support multiple users authority management;
• Support DHCP;
• Support scheduled task;
• Support TELNET, WEB page configurations;
• Support network upgrade;
• With SNTP synchronous clock.

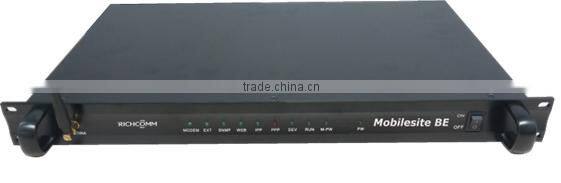

2. Appearance

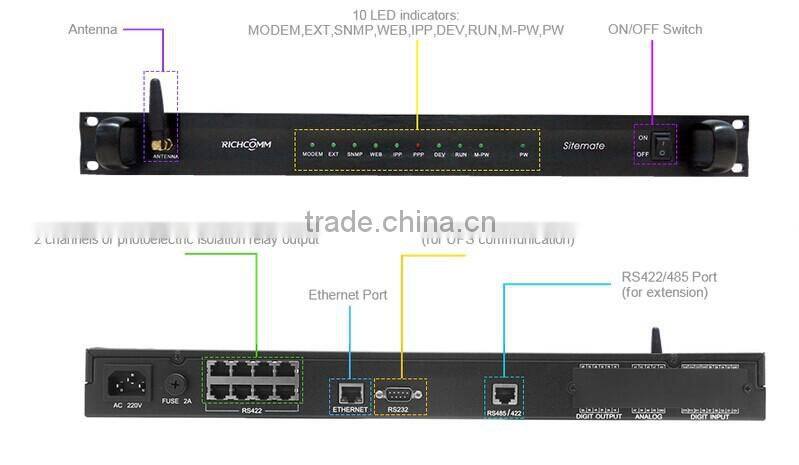

3. Ports Introduction
4. Network Diagram
5. Dimension
6. Monitoring Interface
7.Technical Parameters
CPU |
32-bit ARM RISC-based 50 MHz high speed CPU |
RAM |
16M byte SDRAM |
Flash ROM |
4M byte Flash |
Network Port |
10/100Mbps Ethernet self-adaption |
Serial Port |
1 high speed asynchronous RS232 serial port for communication with UPS |
1 RS422/485 for temperature & humidity module extension. | |
Output Control |
4 channels of optoelectronic isolation dry contact port input |
2channels of optoelectronic isolation relay remote control output | |
Browser Support |
Internet Explorer,Netscape or other compatible browser |
SNMP MIB |
MIB-II(RFC1213, RFC1315, RFC1316), PPC MIB, RFC1628 MIB |
Network protocol |
TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP, PPP, etc. |
Input Power(AC) |
110VAC ~ 220VAC |
Led Indicator |
MODEM, EXT ,SNMP, WEB, IPP, DEV ,RUN, M-PW, PW |
Power Consumption |
≤5W |
Runtime Environment |
Temperature:0°C ~ 70°C |
Humidity: 10 ~ 85% | |
Other Configuration |
Built in ultra long life system clock with automatic timing functions to realize the function of time synchronization. |
Multiple languages |
Simplified Chinese & English, other languages can be extended. |
Hardware Program Update |
Network update |
System Security |
Provide filtering mechanism based on IP, system operation and control & management of the user ID and password protection |
Safety Certification |
CE, FCC |
