BDIT Intelligent Battery Monitoring System
BDIT-802 BDIT812 BDIT-800 BDIT-GATE
Device

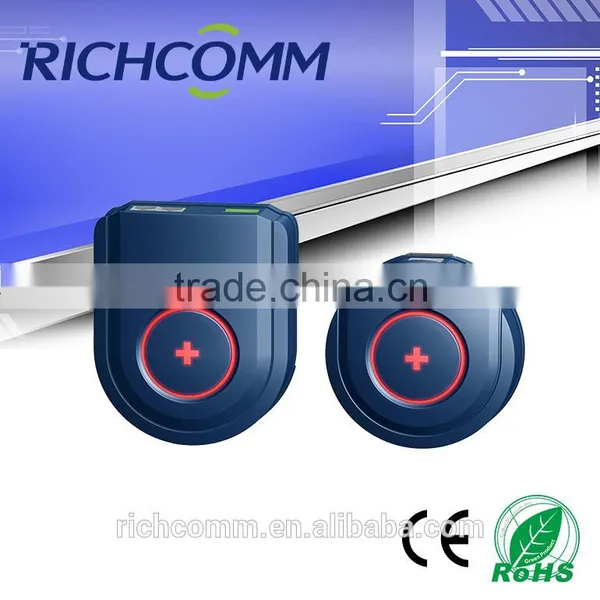

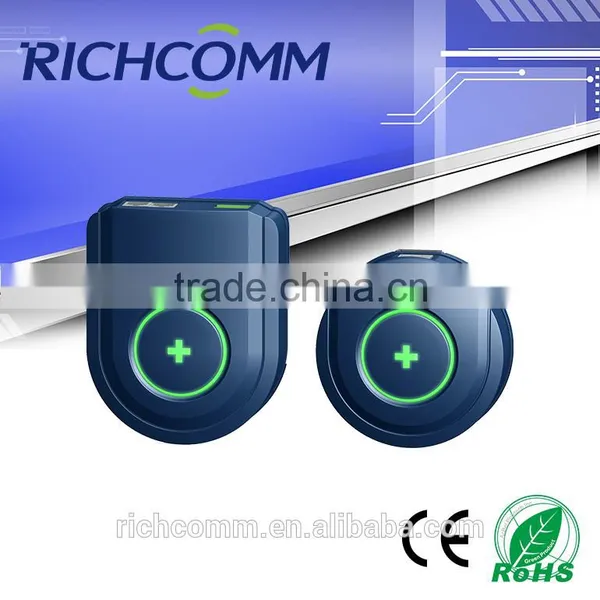

• BDIT-802 : 2 volt battery block stethophone;
• BDIT-812: 12 volt Battery block stethophone;
• BDIT-800: Battery string stethophone;

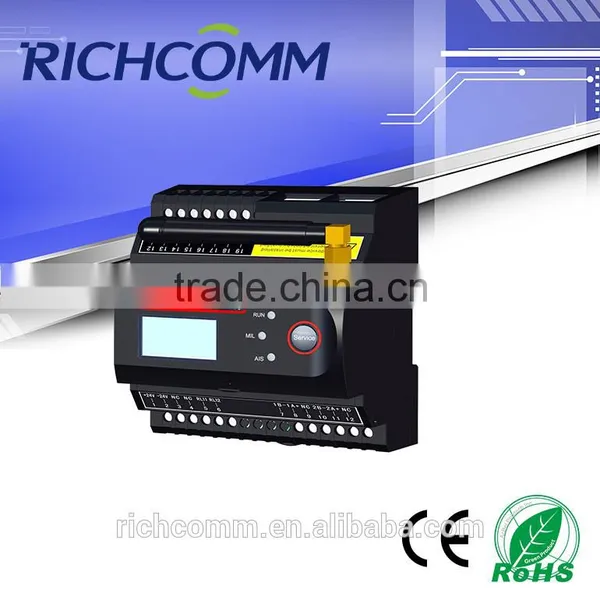

• BDIT-GATE: Monitor control gateway with web view.
Monitoring and Records:
• Voltage,interal resistance, negative temperature of per block;
• Voltage, current of per string;
• Alarm of battery’s state of charge and state of health;

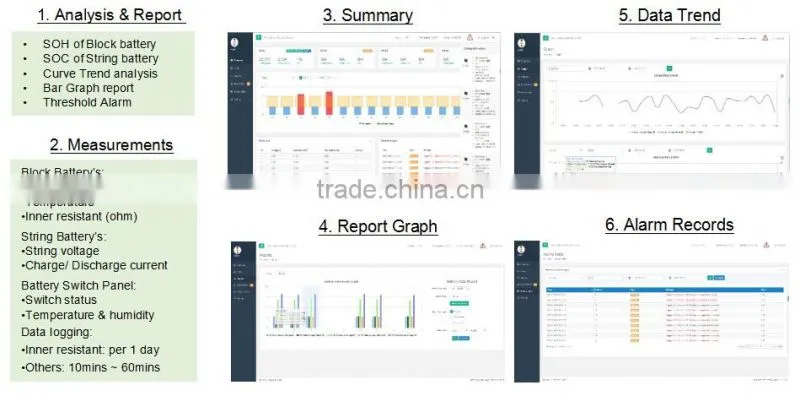

• Real time and history data records and curve analysis.
BDIT GATE Function:
• Connect Max 250 units BDIT stethophones;
• 8GB TF card for 60 months monitor data storage;
• Build in web server, display data by web view pages;
• Analysis monitor curve and judge battery SOC & SOH;
• Battery switch status, humidity & temperature monitor;
• Transmit data & alarm to cloud server by Ethernet;
• E-mail and GSM message as optional function.

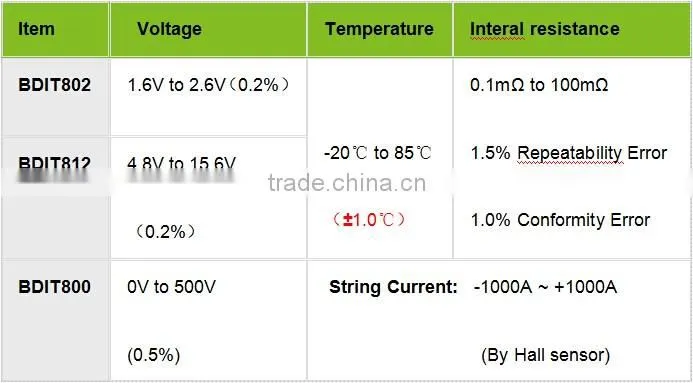

Measure Range and Accuracy:

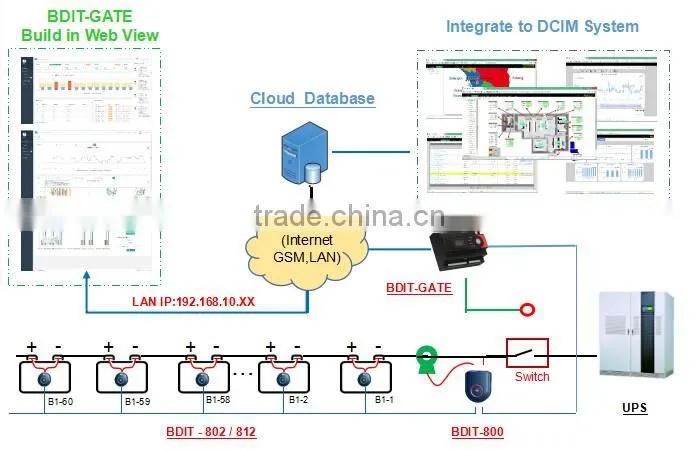

System Structure:
Feature:
BDIT-Gate is the industrial leading intelligent control gateway with OS, database, and multi communication. It collects, stores and analyses data from each block and string stethophone, and then transmit to cloud server and remote system.
BDIT-Gate build in Webserver and database. It can manage about 250 block battery’s SOC and SOH without any system as a most cost-effective BMS.

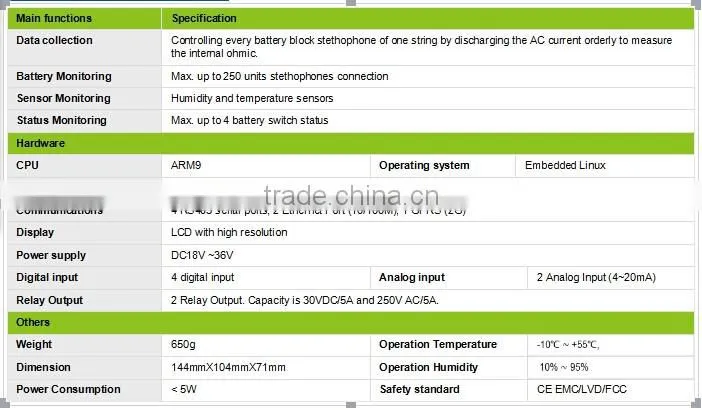

Technical Specification:
