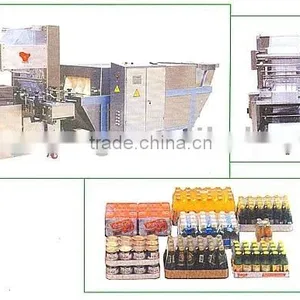

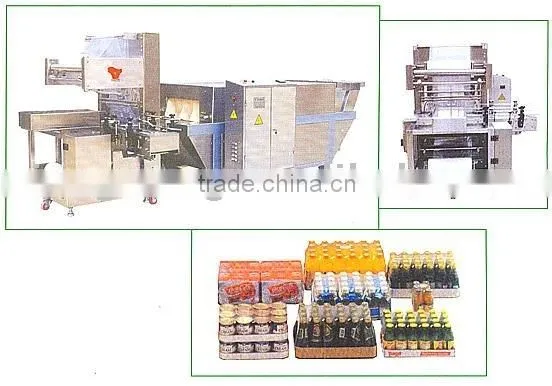

PE Film Packing Machine

Name: PE Film Packing Machine
Brand: Xiong Wang
SKU: 130567935
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Type:

Shrink Film

Usage:

Packaging Film

Zhangjiagang Baixiong Beverage Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Material PE

Type Shrink Film

Usage Packaging Film

Feature Moisture Proof

Hardness Soft

Processing Type Blow Molding

Transparency Transparent

Place of Origin Jiangsu, China

Brand Name Xiong Wang

Model Number SAFP Series

Specifications

1: easy operation and maintenance
2: stable run
3: long life
4: advanced tech from abroad

Characteristics:

The film covering and sealing device adopt advanced heat sealing and heat cutting structure, with advantages of sealing firmly, neat edge and good joined performance.
The sealing and cutting part drived by cylinder, with guide columns at both ends, which can guarantee the process steadily and steadily.
Special protection function: when obstruction on the sealing and cutting position, the equipment will stop and alarming at the same time to protect the package from damaged.
Feeding trough adopts flat feeding type.
The heating part adopts high-quality stainless steel cooling fin, with advantage of steady & homogeneous heat dissipation and long use life.
PID temperature controller: accurate and energy-saving.
The whole equipment controlled by automatic controller, with steady and reliable production, can apply to working long hours and non-stop.

Parameters:

Name:	Automatic heat shrink film packaging machine (trade edition)
Model:	DS-A400-IP
The thickness of shrink film:	0.03—0.10mm (Can be designed as your special requirements)
The film’s max width:	600mm
Shrinkable bake temperature:	Can be arbitrary adjustable within room temperature~200
The max packing speed:	8-10 packs/min (According bottle-type)
Power supply:	380V/220V 50Hz three-phase five-line
Power:	About 20kW
Working air pressure:	Dry air ≥0.6MPa
Air consumption:	25m³/h
Conveyor level height, the position of enter material and dimension:	Design as the customer’s request
Packaging type:	Two sides open, two sides seal
Shrink film:	PE, POF, PVC etc.
Suitable bottle-type:	Glass bottle, pop can, PET bottle and other material which 200 temperature-resistant
Weight:	1500kg
