Automatic Soda Water / Carbonated Beverage Filling Machine / Line

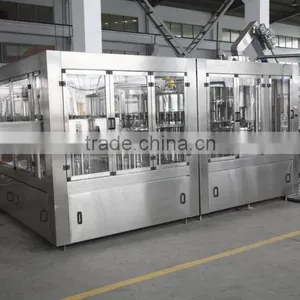

Automatic Soda Water / Carbonated Beverage Filling Machine / Line photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Food
Packaging Type:
Bottles, Cans, Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Food
Packaging Type Bottles, Cans, Cartons
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Power 1.5kw
Place of Origin Jiangsu, China
Brand Name xiongwang
Model Number RCGF
Dimension(L*W*H) 3450*2510*2710MM
Weight 800kg
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

automatic filling machine for water/juice/beverage/drinks

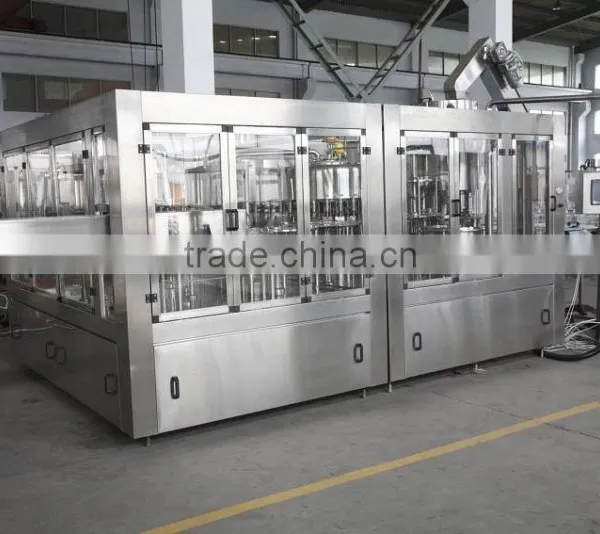

this automatic filling machine for water/juice/beverage/drinks price used for filling mineral and purified water with pet bottle or glass bottle, this picture is 32-32-8monoblock machine. Its capacity is about 13000-15000bottles/hr for 500ml pet bottle.

1. The automatic filling machine for water/juice/beverage/drinks price is mainly used in washing, filling and sealing carbonated beverage such as carbonated drinks, cola, iced tea and carbonated mineral water and so on.

2. All the automatic filling machine for water/juice/beverage/drinks is composed by rotary washer, balanced pressure filler, screw type sealer and conveying system. The capacity is from 3000b/h to 15000b/h

3. The construction is advanced, The performance is stable. The operation and maintain are easy. And the speed can be adjusted infinitively and accords with the standards. It is an ideal choice for small and middle scale drink factories.

Model

CGX32-32-8

Production

Capacity(500ml)

13000-15000

Filling Pressure(Mpa)

 <0.4

Applicable Bottle Type

Bottle dimeter Ø50- Ø 100mm;Height:150-320mm ;Volume:330-1500ml;

Applicable Cap Shape

 Plastic Scres Cap

Gas Source Pressure(Mpa)

 0.6

Gas Consumption(m3/min)

0.65

Total Power(kw)

8.07

Total Weight(kg)

7000

Dimension(L*W*H)(MM)

3450*2510*2710
