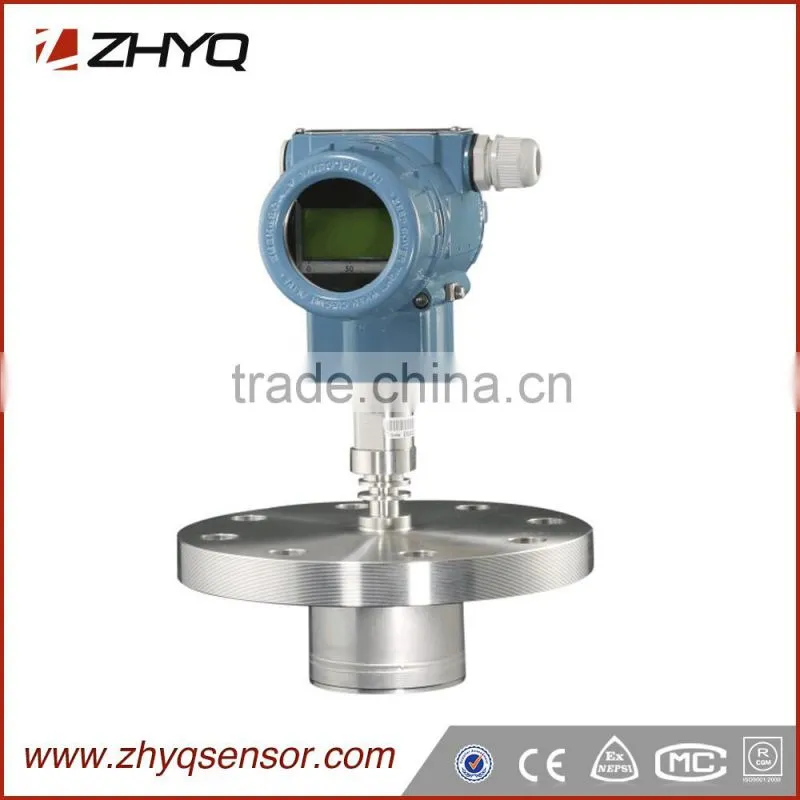

PT124B-3051GR(AR) is Smart absolute pressure Gauge/absolute remote pressure transmitter.which is used to prevent medium from entering directly into the pressure-sensing assembly of the pressure transmitter. It is connected to the transmitter using capillary filled with fill fluid, such as silicon oil. The model PT124B-3051DR can be used to measure liquid, gas, or stem flow, as well as liquid level, density and pressure. It outputs a 4 to 20mA DC HART signal corresponding to the measured pressure differential. The model PT124B-3051 GR (AR) also features remote setup and monitoring though communication with the model RST375 TERMINAL or RSM100 Modem. PT124B-3051 GR(AR) gauge/absolute pressure transmitter span ranges (non migration) is 0 to 1KPa to 2MPa, and the rated pressure of the liquid level flange is 1.6/4MPa, 6.4MPa, 10MPa, 150psi, 300psi or 600psi.
Feature
Adopts global leading high precision silicon
Strong anti-jamming performance
Accuracy +/-0.075%
Advanced stability and static pressure performance
Error less than +/-0.1%/10MPa
Internal integrated high sensitivity temperature transducer
Perfect thermal drift
Fast response time
Specification
Measurement parameter |
gauge pressure, absolute pressure, liquid level |
Measurement range (Non migration) |
0-6KPa-40MPa |
Accuracy |
+/-0.1% |
Wetted parts material |
SS316L, Hastelloy C, tantalum |
Output |
2-wire 4-20mA, HART communication optional, linear output or square root output available |
Ambient temperature limited |
Lowest: depending on the filled liquid Highest: 85℃ -20~65℃ (with LCD display, fluorine rubber O-ring) |
Process medium temperature |
-30~400℃ |
Protection grade |
IP67 |
Electrical connector |
M20*1.5 cable sealing buckle, terminal suitable for 0.5-2.5mm2 cable |
Process connector |
7/16 female at the low pressure, compatible with ANSI or DIN at high pressure. Directly install. |
Dimensions

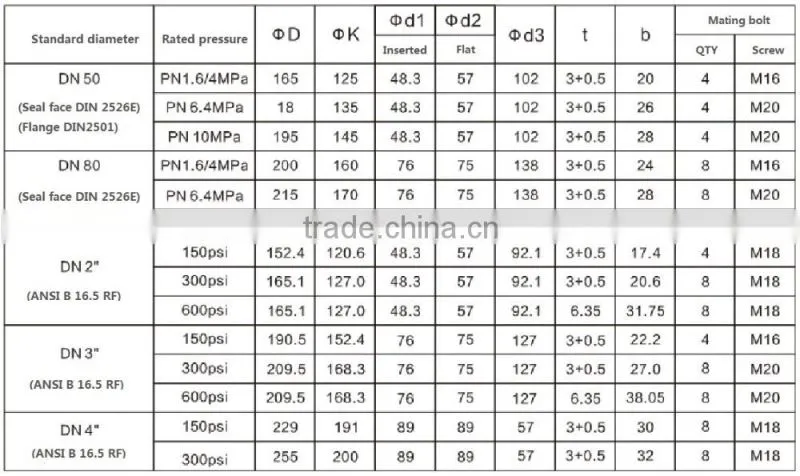

Remote flange size table
Wiring Connector
Order Guide : with "* "are required , with "---"is optional
Model |
Range |
Output |
Screw Thread |
connection |
Other requirement |
PT124B-3051G(A) |
* |
* |
* |
* |
* |
Example: PT124B-3051G(A)-10bar-4/20mA-1/2NP-M20*1.5 cable sealed | |||||
Our products are widely used in the field of hydraulic pressure, air pressure, petrochemical industry, automotive, air condition and compressor, construction machinery, plastic extrusion, chemical fiber, plastic rubber machine, non-woven fabrics and etc.
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
