Specifications
Homogenizer sanitary pressure Gauge1.Local display & Bourdon tube
2.Customized available
3.CE,ISO9001 Certification
Homogenizer diaphragm Pressure Gauge for Sanitary Industry
Description
PT124Y-620 Standard homogenizer diaphragm pressure gauge, adopts imported bourdon tube, connector is used in all stainless steel.
In addition to the general diaphragm pressure gauge performance, this pressure gauge also has good shock-proof and anti-corrosion.
Movable threaded mounting, case can be arbitrary 360 angle adjusting to the best viewing angle.
It is suitable for the process pressure measuring of much machineries, such as Homogenizer machine,Mulser, Crusher, Other food machinery and so on.
Application
Petrochemical
Positive and negative pressure of corrosive media
Measuring liquid of large viscosity, easy to crystallize and solidify
Alkali, chemical fiber, dyeing, pharmaceutical, food and dairy industries sector
Spacification
Name | Homogenizer diaphragm Pressure Gauge |
Range | 0-1MPa ~ 0-150MPa |
Accuracy | ±1.6%FS sanitary pressure gauge |
Configuration | Bourdon tube sanitary pressure gauge |
Over Pressure | 1.5×FS |
Dial Diameter | 100mm sanitary pressure gauge |
Needle sweep: | 270º |
Diaphragm material: | 15-5PH sanitary pressure gauge |
Case material: | Stainless steel with safety glass |
Max Diaphragm Temp. | 125°C sanitary pressure gauge |
Process Connection | M20*1.5, M18×1.5,G3/4(Optional) |

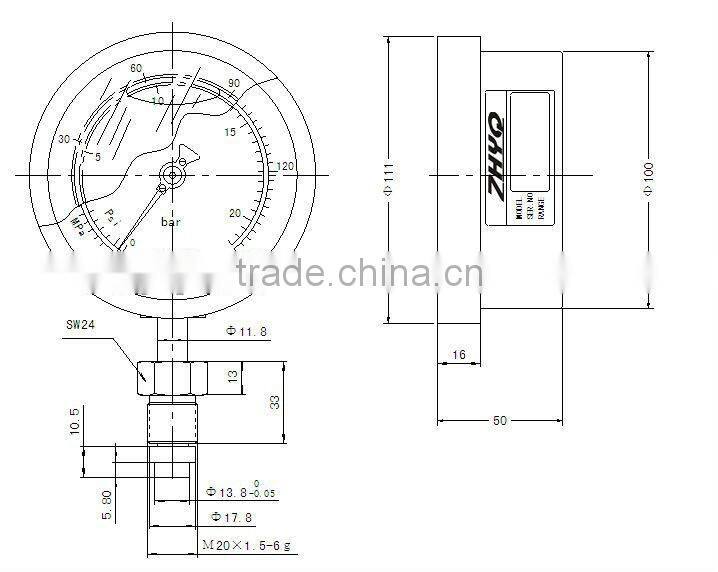

Dimension
Order Guide : with "* "are required , with "---"is optional
Price, Package and Service
1, ZHYQ is producing various diaphragm Pressure Gauge for 15+ years
2. OEM is available and our price is more competitive
3, Any questions from you are highly welcomed and will be replied in 24 hours.
4, 7 days replacement, 12 months free repair if it's the problem of product's quality.
5, All goods will be fully checked by our QC.
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
7. Package: The goods will be put into the packing box with instructions and certificate of quality first.
Our main products contains diaphragm Pressure Gauge, melt pressure transducers, melt pressure transmitters, Industrial pressure transmitter, melt pressure gauge, Homogenizer pressure gauges, automotive/air pressure sensors, Intelligent digital indicator, level transducer, temperature transducer, Rupture disk, and etc. more than 80 series and 500 models products.
